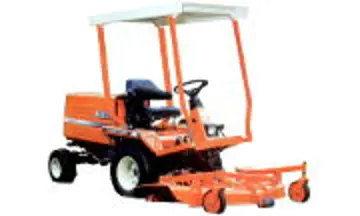

Kubota F2000
The Kubota F2000 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 927 cc 56.6 ci engine. The listed engine power is Diesel (listed): 20 hp / 14.9 kW. Transmission: infinite forward and reverse (2-range). Drive type: 4x4 4WD. Operating weight: 1380 lbs*Mower only, without mower deck. 625 kg.
Overview
![]() | 1986 - 1987
F SeriesFront-mount mower
F Series
Front-mount mower |
|---|
Production | |
|---|---|
Manufacturer | Kubota |
Front-mount mower | |
Kubota F2000 Engine | |
|---|---|
20HP Kubota 927cc 3-cyl diesel | |
Fuel tank | 9 gal
34.1 L |
Engine details ... | |
Kubota F2000 Transmission | |
|---|---|
hydrostatic | |
Transmission details ... |
Mechanical | |
|---|---|
Drive | 4x4 4WD |
Power steering | |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Front PTO Type | 1130/2550 |
Engine RPM | 1130@2600 |
2550@2600 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 48.6 inches
123 cm |
Weight | 1380 lbs
625 kg |
Front tire | 23x10.50-12 |
Rear tire | 16x6.50-8 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Battery AH | 65 |
References | |
|---|---|
![]() | |
Diesel Front Mower F2000 published in 1986, by Kubota |
Engine
![]() | 1986 - 1987
F SeriesFront-mount mower |
|---|---|
1986 - 1987 | |
F Series | |
Front-mount mower | |
Engine Detail — 927 cc / 56.6 ci Diesel
Manufacturer | Kubota D950-FM |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 927 cc
56.6 ci |
Bore/Stroke | 3.0x2.8 inches
76 x 71 mm |
Power | 20 hp
14.9 kW |
Rated RPM | 2600 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 3.3 qts
3.1 L |
Coolant capacity | 3.9 qts
3.7 L |
Transmission
![]() | 1986 - 1987
F SeriesFront-mount mower |
|---|---|
1986 - 1987 | |
F Series | |
Front-mount mower | |
Transmission — infinite forward and reverse (2-range) hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse (2-range) |
Oil capacity | 13.4 qts
12.7 L |
![]() | |
Dimensions
![]() | 1986 - 1987
F SeriesFront-mount mower |
|---|---|
1986 - 1987 | |
F Series | |
Front-mount mower | |
Kubota F2000 Tires | |
|---|---|
Lawn/turf front | 23x10.50-12 |
Lawn/turf rear | 16x6.50-8 |
Dimensions | |
|---|---|
Wheelbase | 48.6 inches
123 cm |
Length | 86.2 inches
218 cm |
Width | 44.9 inches
114 cm |
Height | 49.6 inches
125 cm |
Weight | 1380 lbs*Mower only, without mower deck.
625 kg |
Ground clearance | 6.9 inches
17 cm |
Front tread | 34.4 to 36.8 inches
87 to 93 cm |
Rear tread | 34.3 inches
87 cm |
Attachments
![]() | 1986 - 1987
F SeriesFront-mount mower |
|---|---|
1986 - 1987 | |
F Series | |
Front-mount mower | |
Attachment overview | |
|---|---|
60" front-mount mower deck | |
72" front-mount mower deck | |
Snowblower |
Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Kubota Lawn Tractors Kubota F2000 based on its 20 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota Lawn Tractors Kubota F2000.
Estimated Continuous Field Runtime: 8.7 hrs
Approximately 8.7 hours of continuous field operation at ~75% rated power on a full tank (9 gal / 34.1 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
Kubota Lawn Tractors Kubota F2000 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota Lawn Tractors Kubota F2000.
Converted Equivalents:
Direct Competitor Comparison
Compare Kubota F2000 against same-era industry alternatives in the same horsepower class.
Kubota F2000
