Kubota FZ2100

The Kubota FZ2100 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 898 cc 54.8 ci engine. The listed engine power is Diesel (gross): 20 hp / 14.9 kW. Transmission: infinite forward and reverse. Drive type: 4x4 4WD. Operating weight: 1587 lbs*Weight of machine without mower deck. 719 kg.

Engine Power
Diesel (gross): 20 hp / 14.9 kW
Drive & Traction
4x4 4WD
Fuel & Capacities
8.2 gal 31.0 L
Transmission
infinite forward and reverse
Operating Weight
1587 lbs*Weight of machine without mower deck. 719 kg

Overview

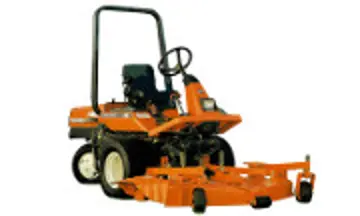

Kubota FZ2100 tractor photo
1992 - 1997 F SeriesFront-mount mower F Series Front-mount mower
Production
Manufacturer
Kubota
Front-mount mower
The FZ2100 used a rear axle allowing for zero turning radius.
Variants
F2100
4WD
F2100E
2WD
FZ2100
zero-turn radius
Kubota FZ2100 Engine
20HP Kubota 898cc 3-cyl diesel
Fuel tank
8.2 gal 31.0 L
Engine details ...
Kubota FZ2100 Transmission
hydrostatic
Transmission details ...
Mechanical
Drive
4x4 4WD
Power steering
Drum brakes
Two-post ROPS
Power Take-off (PTO)
Front PTO
independent
Clutch
dry disc
Dimensions & Tires
Wheelbase
51.2 inches 130 cm
Weight
1587 lbs 719 kg
Front tire
23x10.50-12
Rear tire
20x8.00-10
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
References
FZ2100 references literature
4WD Front Mower FZ2100/FZ2400 published in 1992, by Kubota

Engine

Engine Detail — 898 cc / 54.8 ci Diesel

Manufacturer
Kubota D905-FZ
Fuel Type
Diesel
Configuration
3-cylinder, liquid-cooled
Displacement
898 cc 54.8 ci
Bore/Stroke
2.83x2.90 inches 72 x 74 mm
Power (gross)
20 hp 14.9 kW
Air cleaner
dry
Rated RPM
2700
Starter
electric
Starter volts
12

Transmission

Transmission — infinite forward and reverse hydrostatic

Type
hydrostatic
Gears
infinite forward and reverse
FZ2100  hydrostatic speeds

Dimensions

Kubota FZ2100 Tires
Lawn/turf front
23x10.50-12
Lawn/turf rear
20x8.00-10
Dimensions
Wheelbase
51.2 inches 130 cm
Length
89 inches 226 cm
Width
44.9 inches 114 cm
Height (steering wheel)
57.9 inches 147 cm
Height (ROPS)
77.6 inches 197 cm
Weight
1587 lbs*Weight of machine without mower deck. 719 kg
Ground clearance
6.3 inches 16 cm
Front tread
34.4 inches 87 cm
Rear tread
15.4 inches 39 cm

Attachments

Attachment overview
54" front-mount mower deck
60" front-mount mower deck
72" front-mount mower deck
Snowblower
Blade

Photos

Kubota FZ2100 tractor photo

Kubota FZ2100 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Kubota Lawn Tractors Kubota FZ2100 based on its 20 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
4 ft (48 in)1.2 mLight DutyPasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep
42 to 48 in105 - 120 cmLight DutyCovers compact tractor tire width.
Disc HarrowSecondary Tillage
5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)Light DutySmall acreage soil break-up and secondary aeration.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota Lawn Tractors Kubota FZ2100.

Estimated Continuous Field Runtime: 7.9 hrs

Approximately 7.9 hours of continuous field operation at ~75% rated power on a full tank (8.2 gal / 31 L).

Estimated 75% Load Fuel Burn~1 gal/hr (3.9 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Kubota Lawn Tractors Kubota FZ2100 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota Lawn Tractors Kubota FZ2100.

Converted Equivalents:

Horsepower (HP)20 hp
Kilowatts (kW)14.9 kW
Metric Horsepower (PS / CV)20.3 PS

Direct Competitor Comparison

Compare Kubota FZ2100 against same-era industry alternatives in the same horsepower class.

Current Model
Kubota Lawn Tractors

Kubota FZ2100

Engine Power:Diesel (gross): 20 hp / 14.9 kW
★ Baseline Reference
Massey FergusonMarket Competitor

Massey Ferguson 1215

Engine Power:18
Production Years:1996 - 2003
International HarvesterMarket Competitor

International Harvester 184 Lo-Boy

Engine Power:18
Production Years:1977 - 1980
CaseIHMarket Competitor

CaseIH 235

Engine Power:18
Production Years:1986 - 1990
KubotaMarket Competitor

Kubota B7410

Engine Power:18
Production Years:2004 - 2007
