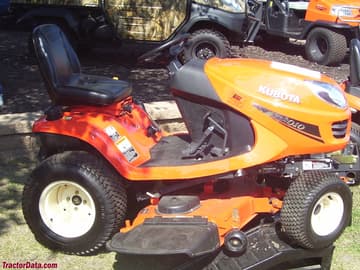

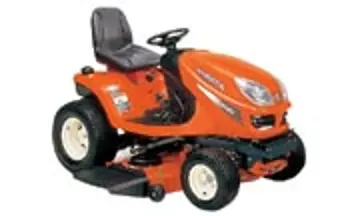

Kubota GR2010
The Kubota GR2010 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 624 cc 38.1 ci engine. The listed engine power is Gasoline (gross): 20 hp / 14.9 kW. Transmission: infinite forward and reverse. Operating weight: 881 lbs (with mower) 399 kg.
Overview
![]() | 2008 - 2009
GR SeriesGarden tractor
GR Series
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Kubota |
Garden tractor | |
Original price was $7,850 in 2011 | |
Kubota GR2010 Engine | |
|---|---|
20HP Kubota 624cc 2-cyl gasoline | |
Fuel tank | 4.8 gal
18.2 L |
Engine details ... | |
Kubota GR2010 Transmission | |
|---|---|
hydrostatic | |
Transmission details ... |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Internal expanding brake brakes | |
Open operator station with adjustable seat and cup holder. Optional armrests. |
Dimensions & Tires | |
|---|---|
Wheelbase | 50.4 inches
128 cm |
Weight | 881 lbs
399 kg |
Front tire | 16x7.5-8 |
Rear tire | 23x10.50-12 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 624 cc / 38.1 ci Gasoline
Manufacturer | Kubota GH630 |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled |
Displacement | 624 cc
38.1 ci |
Power (gross) | 20 hp
14.9 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — infinite forward and reverse hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse |
Treadle-pedal foot control with cruise control. | |
![]() | |
Dimensions
Kubota GR2010 Tires | |
|---|---|
Lawn/turf front | 16x7.5-8 |
Lawn/turf rear | 23x10.50-12 |
Dimensions | |
|---|---|
Wheelbase | 50.4 inches
128 cm |
Length | 77.1 inches
195 cm |
Width | 60.4 inches
153 cm |
Height | 48.4 inches
122 cm |
Weight | 881 lbs (with mower)
399 kg |
Attachments
Attachment overview | |
|---|---|
48" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
48" Mower deck | |
|---|---|
Type | mid-mount Kubota |
3-blade with hydraulic lift | |
Cutting width | 48 inches
121 cm |
Cut height | 1 to 4 inch
2 to 10 cm |
Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Kubota Lawn Tractors Kubota GR2010 based on its 20 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota Lawn Tractors Kubota GR2010.
Estimated Continuous Field Runtime: 4.6 hrs
Approximately 4.6 hours of continuous field operation at ~75% rated power on a full tank (4.8 gal / 18.2 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
Kubota Lawn Tractors Kubota GR2010 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota Lawn Tractors Kubota GR2010.
Converted Equivalents:
Direct Competitor Comparison
Compare Kubota GR2010 against same-era industry alternatives in the same horsepower class.
Kubota GR2010
International Harvester 184 Lo-Boy
