Kubota F2100

The Kubota F2100 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 898 cc 54.8 ci engine. The listed engine power is Diesel (gross): 20 hp / 14.9 kW. Transmission: infinite forward and reverse. Drive type: 4x2 2WD. Operating weight: 1376 to 1380 pounds.

Overview

	1988 - 1997 F SeriesFront-mount mower F Series Front-mount mower

Production
Manufacturer	Kubota
Front-mount mower

Variants
F2100	4WD
F2100E	2WD
FZ2100	zero-turn radius

Kubota F2100 Engine
20HP Kubota 898cc 3-cyl diesel
Fuel tank	9 gal 34.1 L
Engine details ...

Kubota F2100 Transmission
hydrostatic
Transmission details ...

Mechanical
Drive	4x2 2WD
	4x4 4WD
Power steering
Drum brakes
Two-post ROPS. Four-post ROPS optional.

Hydraulics
Pump flow	2.6 gpm 9.8 lpm

Power Take-off (PTO)
Front PTO	independent

Dimensions & Tires
Wheelbase	48.6 inches 123 cm
Weight	1376 to 1380 pounds
Front tire	23x10.50-12
Rear tire	16x6.50-8
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Diesel Front Mower F2400 4WD/F2100 4WD/F2100E 2WD published in 1992, by Kubota
Product Catalog published in 1990, by Kubota

Engine

Engine Detail — 898 cc / 54.8 ci Diesel

Manufacturer	Kubota D905-FM
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	898 cc 54.8 ci
Bore/Stroke	2.83x2.90 inches 72 x 74 mm
Power (gross)	20 hp 14.9 kW
Air cleaner	dry
Rated RPM	2600
Starter	electric
Starter volts	12

Transmission

Transmission — infinite forward and reverse hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse

Dimensions

Kubota F2100 Tires
Lawn/turf front	23x10.50-12
Lawn/turf rear	16x6.50-8

Dimensions
Wheelbase	48.6 inches 123 cm
Length	86.2 inches 218 cm
Width	44.9 inches 114 cm
Height (steering wheel)	49.6 inches 125 cm
2WD Shipping weight	1376 lbs 624 kg
4WD Shipping weight	1380 lbs 625 kg
Ground clearance	6.9 inches 17 cm
Front tread	34.4 inches 87 cm
Rear tread	34.3 inches 87 cm

Attachments

Attachment overview
60" front-mount mower deck
72" front-mount mower deck
Snowblower
Blade

Photos

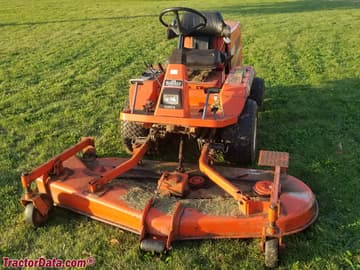

Kubota F2100

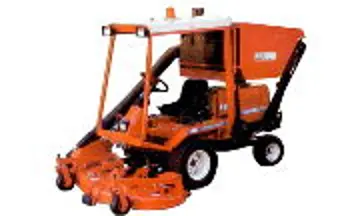

Kubota F2100
