Kubota ZD28

The Kubota ZD28 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 1122 cc 68.5 ci engine. The listed engine power is Diesel (gross): 28 hp / 20.9 kW. Transmission: infinite forward and reverse. Operating weight: 1481 lbs 671 kg.

Overview

	2002 - 2006 ZD SeriesZero-turn mower ZD Series Zero-turn mower

Production
Manufacturer	Kubota
Zero-turn mower

Kubota ZD28 Engine
28HP Kubota 1122cc 3-cyl diesel
Fuel tank	7.9 gal 29.9 L
Engine details ...

Kubota ZD28 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Steering	differential power
Two-post foldable ROPS.

Power Take-off (PTO)
Mid PTO	independent

Dimensions & Tires
Wheelbase	53.7 inches 136 cm
Weight	1481 lbs 671 kg
Front tire	15x6.0-6
Rear tire	24x12-12
Full dimensions and tires ...

Electrical
Ground	negative
Battery CCA	450
Battery volts	12

Engine

Engine Detail — 1122 cc / 68.5 ci Diesel

Manufacturer	Kubota D1105
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	1122 cc 68.5 ci
Bore/Stroke	3.071x3.087 inches 78 x 78 mm
Power (gross)	28 hp 20.9 kW
Rated RPM	3000
Starter	electric
Starter volts	12

Transmission

Transmission — infinite forward and reverse hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse

Dimensions

Kubota ZD28 Tires
Lawn/turf front	15x6.0-6
Lawn/turf rear	24x12-12

Dimensions
Wheelbase	53.7 inches 136 cm
Length	89 inches 226 cm
Height (steering wheel)	45.3 inches 115 cm
Height (ROPS)	75.2 inches 191 cm
Weight	1481 lbs 671 kg
Front tread	48.6 inches 123 cm
Rear tread	45.2 inches 114 cm

Attachments

Attachment overview
60" mid-mount mower deck
72" mid-mount mower deck

Photos

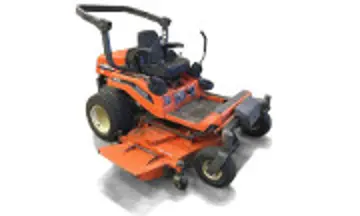

Kubota ZD28
