Kubota ZG23

The Kubota ZG23 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 673 cc 41.1 ci engine. The listed engine power is Gasoline (gross): 23 hp / 17.2 kW. Transmission: infinite forward and reverse. Operating weight: 189.6 lbs 86 kg.

Overview

	2003 - 2007 ZG SeriesZero-turn mower ZG Series Zero-turn mower

Production
Manufacturer	Kubota
Zero-turn mower

Kubota ZG23 Engine
23HP Kubota 673cc 2-cyl gasoline
Fuel tank	6.1 gal 23.1 L
Engine details ...

Kubota ZG23 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Steering	differential power
Wet disc brakes
Two-post folding ROPS.

Power Take-off (PTO)
Mid PTO	independent
Mid PTO Type	Kubota 10-tooth

Dimensions & Tires
Wheelbase	46.7 inches 118 cm
Weight	1102 lbs 499 kg
Front tire	13x5.0-6
Rear tire	23x10.5-12
Full dimensions and tires ...

Electrical
Ground	negative
Battery CCA	285
Battery volts	12
Battery Group	U1L-9

References
Zero-Turn Mower ZG published in 2003, by Kubota

Engine

Engine Detail — 673 cc / 41.1 ci Gasoline

Manufacturer	Kubota GH680H
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled horizontal-shaft V-Twin
Displacement	673 cc 41.1 ci
Bore/Stroke	3.18x2.64 inches 81 x 67 mm
Power (gross)	23 hp 17.2 kW
Air cleaner	foam
Compression	8.5:1
Rated RPM	3200
Torque	38.2 lb-ft 51.8 Nm
Torque RPM	2200
Starter	electric
Starter volts	12
Oil capacity	2 qts 1.9 L
Sparkplug	Champion 3071

Transmission

Transmission — infinite forward and reverse hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse
Oil capacity	7.9 qts 7.5 L

Dimensions

Kubota ZG23 Tires
Lawn/turf front	13x5.0-6
Lawn/turf rear	23x10.5-12

Dimensions
Wheelbase	46.7 inches 118 cm
Length	76.8 inches 195 cm
Width	66.3 inches 168 cm
Height (ROPS)	69.8 inches 177 cm
Height (Folded ROPS)	51.9 inches 131 cm
Weight	1102 lbs 499 kg
Front tread	33.9 inches 86 cm
Rear tread	36.6 inches 92 cm

Attachments

54" Mower deck
Type	mid-mount Kubota RCK54P-23ZG
	3-blade
Cutting width	54 inches 137 cm
Weight	189.6 lbs 86 kg
Overall width	67 inches 170 cm
Cut height	1 to 5 inch 2 to 12 cm

Photos

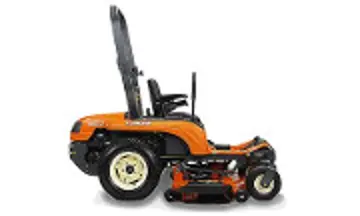

Kubota ZG23 zero-turn mower.
