Kubota ZG123S

The Kubota ZG123S is a tractor produced by Kubota Lawn Tractors. It is equipped with a 724 cc 44.2 ci engine. The listed engine power is Gasoline (gross): 23 hp / 17.2 kW. Transmission: Hydro-Gear ZT3100. Operating weight: 749 lbs 339 kg.

Engine Power
Gasoline (gross): 23 hp / 17.2 kW
Fuel & Capacities
4.3 gal 16.3 L
Transmission
Hydro-Gear ZT3100
Operating Weight
749 lbs 339 kg

Overview

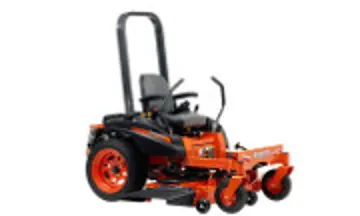

Kubota ZG123S tractor photo
2013 ZG100 SeriesZero-turn mower ZG100 Series Zero-turn mower
Production
Manufacturer
Kubota
Zero-turn mower
Kubota ZG123S Engine
23HP 724cc 2-cyl gasoline
Fuel tank
4.3 gal 16.3 L
Engine details ...
Kubota ZG123S Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Steering
differential power
Mechanical cog brakes
Two-post fixed ROPS.
Power Take-off (PTO)
Mid PTO
independent
Clutch
electric
Dimensions & Tires
Wheelbase
45.5 inches 115 cm
Weight
749 lbs 339 kg
Front tire
11x4-5
Rear tire
22x10-14
Full dimensions and tires ...
Electrical
Ground
negative
Charging amps
16
Battery CCA
300
Battery volts
12

Engine

Engine Detail — 724 cc / 44.2 ci Gasoline

Fuel Type
Gasoline
Configuration
2-cylinder, air-cooled vertical-shaft V-Twin
Displacement
724 cc 44.2 ci
Power (gross)
23 hp 17.2 kW
Starter
electric
Starter volts
12

Transmission

Transmission — Hydro-Gear ZT3100

Transmission
Hydro-Gear ZT3100
Type
hydrostatic
Gears
infinite forward and reverse
ZG123S ZT3100 hydrostatic speeds

Dimensions

Kubota ZG123S Tires
Lawn/turf front
11x4-5
Lawn/turf rear
22x10-14
Dimensions
Wheelbase
45.5 inches 115 cm
Length
76.4 inches 194 cm
Width
47.5 inches 120 cm
Height (ROPS)
65 inches 165 cm
Weight
749 lbs 339 kg
Front tread
31.3 inches 79 cm
Rear tread
37.6 inches 95 cm

Attachments

48" Mower deck
Type
mid-mount Kubota RCK48P-124Z
3-blade
Cutting width
48 inches 121 cm
Overall width
61.1 inches 155 cm
Cut height
1 to 4.5 inch 2 to 11 cm

Photos

Kubota ZG123S tractor photo

Kubota ZG123S tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Kubota Lawn Tractors Kubota ZG123S based on its 23 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
4 ft (48 in)1.2 mLight DutyPasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep
42 to 48 in105 - 120 cmLight DutyCovers compact tractor tire width.
Disc HarrowSecondary Tillage
5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)Light DutySmall acreage soil break-up and secondary aeration.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota Lawn Tractors Kubota ZG123S.

Estimated Continuous Field Runtime: 3.6 hrs

Approximately 3.6 hours of continuous field operation at ~75% rated power on a full tank (4.3 gal / 16.3 L).

Estimated 75% Load Fuel Burn~1.2 gal/hr (4.5 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Kubota Lawn Tractors Kubota ZG123S Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota Lawn Tractors Kubota ZG123S.

Converted Equivalents:

Horsepower (HP)23 hp
Kilowatts (kW)17.2 kW
Metric Horsepower (PS / CV)23.3 PS

Direct Competitor Comparison

Compare Kubota ZG123S against same-era industry alternatives in the same horsepower class.

Current Model
Kubota Lawn Tractors

Kubota ZG123S

Engine Power:Gasoline (gross): 23 hp / 17.2 kW
★ Baseline Reference
KubotaMarket Competitor

Kubota FT21

Engine Power:20.7
Production Years:2012 - 2015
Massey FergusonMarket Competitor

Massey Ferguson 1020

Engine Power:21
Production Years:1983 - 1994
YanmarMarket Competitor

Yanmar F-210

Engine Power:20.7
Production Years:1992 - 1998
MitsubishiMarket Competitor

Mitsubishi GS21

Engine Power:20.7
Production Years:2003 - 2005
