Kubota T2380

The Kubota T2380 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 724 cc 44.2 ci engine. The listed engine power is Gasoline (gross): 23 hp / 17.2 kW. Transmission: Hydro-Gear G7. Operating weight: 628 lbs*Weight with 48-inch mower deck. 284 kg.

Overview

	2008 - 2017 T80 SeriesLawn tractor T80 Series Lawn tractor

Production
Manufacturer	Kubota
Lawn tractor
Original price	$4,998 (2011 )
	$4,999 (2019 )

Kubota T2380 Engine
23HP Kohler 724cc 2-cyl gasoline
Fuel tank	4 gal 15.1 L
Engine details ...

Kubota T2380 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Disc brakes
Open operator station.

Dimensions & Tires
Wheelbase	54.3 inches 137 cm
Weight	628 lbs 284 kg
Front tire	15x6.00-6
Rear tire	22x11.00-10
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
T Series published in 2014, by Kubota
Operator's Manaul Models T1880, T2080, T2380 (K1032-7122-1) published in 2014

Engine

Engine Detail — 724 cc / 44.2 ci Gasoline

Manufacturer	Kohler GH720V
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled
Displacement	724 cc 44.2 ci
Power (gross)	23 hp 17.2 kW
Air cleaner	dual element
Rated RPM	3200
Starter	electric
Starter volts	12
Oil capacity	1.9 qts 1.8 L

Transmission

Transmission — Hydro-Gear G7

Transmission	Hydro-Gear G7
Type	belt-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	2.9 qts 2.7 L
Hydrostatic transmission controlled by treadle foot pedal. Cruise control standard.

Dimensions

Kubota T2380 Tires
Lawn/turf front	15x6.00-6
Lawn/turf rear	22x11.00-10

Dimensions
Wheelbase	54.3 inches 137 cm
Length	72.8 inches 184 cm
Width	60.8 inches 154 cm
Height	44.3 inches 112 cm
Weight	628 lbs*Weight with 48-inch mower deck. 284 kg
Front tread	30.8 inches 78 cm
Rear tread	28.6 inches 72 cm

Attachments

Attachment overview
48" mid-mount mower deck
Snowblower
Blade

48" Mower deck
Type	mid-mount Kubota RCK48-LT23
	2-blade with manual lift
Cutting width	48 inches 121 cm
Cut height	1 to 4 inch 2 to 10 cm

Photos

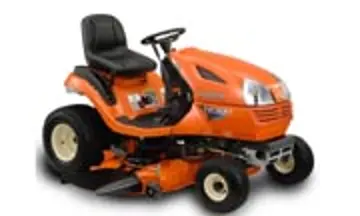

Kubota T2380

Kubota T2380 operator station and controls.
