Kubota Z723

The Kubota Z723 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 694 cc 42.4 ci engine. The listed engine power is Gasoline (gross): 22.5 hp / 16.8 kW. Transmission: Parker Torqpact GT14. Operating weight: 1168.4 lbs 529 kg.

Overview

	2014 - Z700 SeriesZero-turn mower
2014 -
Z700 Series
Zero-turn mower

2014 -
Z700 Series
Zero-turn mower

Production
Manufacturer	Kubota
Zero-turn mower
Original price	$8,299 (2015 )
	$8,199 (2021 )

Kubota Z723 Engine
22.5HP Kohler 694cc 2-cyl gasoline
Fuel tank	11.6 gal 43.9 L
Engine details ...

Kubota Z723 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Power steering
Drum discs brakes
Two-post foldable ROPS.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric dry disc

Dimensions & Tires
Wheelbase	50.9 inches 129 cm
Weight	1168.4 lbs 529 kg
Front tire	13x5.0-6
Rear tire	24x9.5-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	15
Battery CCA	300
Battery volts	12

References
Z700 Series published in 2014, by Kubota
Z700 Series published in 2018, by Kubota

Engine

	2014 - Z700 SeriesZero-turn mower
2014 -
Z700 Series
Zero-turn mower

2014 -
Z700 Series
Zero-turn mower

Engine Detail — 694 cc / 42.4 ci Gasoline

Manufacturer	Kohler CV682
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
Displacement	694 cc 42.4 ci
Bore/Stroke	3.15x2.72 inches 80 x 69 mm
Power (gross)	22.5 hp 16.8 kW
Fuel system	carburetor
Rated RPM	3600
Starter	electric
Starter volts	12
Oil capacity	2.2 qts 2.1 L

Transmission

	2014 - Z700 SeriesZero-turn mower
2014 -
Z700 Series
Zero-turn mower

2014 -
Z700 Series
Zero-turn mower

Transmission — Parker Torqpact GT14

Transmission	Parker Torqpact GT14
Type	hydrostatic
Gears	infinite forward and reverse
Oil capacity	3.5 qts 3.3 L

Dimensions

	2014 - Z700 SeriesZero-turn mower
2014 -
Z700 Series
Zero-turn mower

2014 -
Z700 Series
Zero-turn mower

Kubota Z723 Tires
Lawn/turf front	13x5.0-6
Lawn/turf rear	24x9.5-12

Dimensions
Wheelbase	50.9 inches 129 cm
Length	83.9 inches 213 cm
Width	50.4 inches 128 cm
Height (ROPS)	69.9 inches 177 cm
Height (Folded ROPS)	48.3 inches 122 cm
Weight	1168.4 lbs 529 kg
Front tread	37.6 inches 95 cm
Rear tread	40.2 inches 102 cm

Attachments

	2014 - Z700 SeriesZero-turn mower
2014 -
Z700 Series
Zero-turn mower

2014 -
Z700 Series
Zero-turn mower

48" Mower deck
Type	mid-mount Kubota RCK48P-723Z
	3-blade
Cutting width	48 inches 121 cm
Overall width	61.3 inches 155 cm
Cut height	1 to 5 inch 2 to 12 cm

Photos

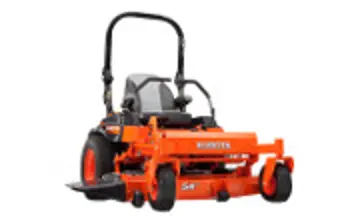

Kubota Z723KH zero-turn mower.
