Kubota ZG222

The Kubota ZG222 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 768 cc 46.9 ci engine. The listed engine power is Gasoline (gross): 22 hp / 16.4 kW. Transmission: infinite forward and reverse. Operating weight: 1168 lbs 529 kg.

Overview

	2008 - ???? Z200 SeriesZero-turn mower
2008 - ????
Z200 Series
Zero-turn mower

2008 - ????
Z200 Series
Zero-turn mower

Production
Manufacturer	Kubota
Zero-turn mower
Original price	$8,160 (2015 48S )
	$8,568 ( 48P )
	$8,999 (2021 48S )

Kubota ZG222 Engine
22HP Kubota 768cc 2-cyl gasoline
Fuel tank	7.1 gal 26.9 L
Engine details ...

Kubota ZG222 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Steering	differential power
Wet discs brakes
Two-post foldable ROPS.

Power Take-off (PTO)
Mid PTO	independent
Clutch	hydraulic wet disc

Dimensions & Tires
Wheelbase	51 inches 129 cm
Weight	1168 lbs 529 kg
Front tire	13x5.0-6
Rear tire	23x10.5-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	13.4
Charging volts	12
Battery CCA	300
Battery volts	12

References
Z200/Z300 Series published in 2016, by Kubota
ZG Series published in 2019, by Kubota

Engine

	2008 - ???? Z200 SeriesZero-turn mower
2008 - ????
Z200 Series
Zero-turn mower

2008 - ????
Z200 Series
Zero-turn mower

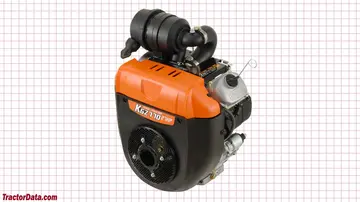

Engine Detail — 768 cc / 46.9 ci Gasoline

Manufacturer	Kubota KGZ770-E2-MA3
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled horizontal-shaft V-Twin
Displacement	768 cc 46.9 ci
Bore/Stroke	3.31x2.72 inches 84 x 69 mm
Power (gross)	22 hp 16.4 kW
Rated RPM	3600
Starter	electric
Starter volts	12
Oil capacity	1.9 qts 1.8 L

Kubota ZG222 Engine

Transmission

	2008 - ???? Z200 SeriesZero-turn mower
2008 - ????
Z200 Series
Zero-turn mower

2008 - ????
Z200 Series
Zero-turn mower

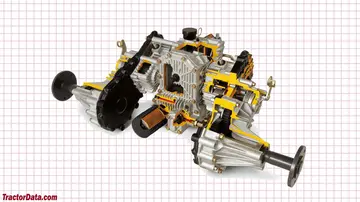

Transmission — infinite forward and reverse hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse
Oil capacity	7.9 qts 7.5 L

Kubota ZG222 Transmission

Dimensions

	2008 - ???? Z200 SeriesZero-turn mower
2008 - ????
Z200 Series
Zero-turn mower

2008 - ????
Z200 Series
Zero-turn mower

Kubota ZG222 Tires
Lawn/turf front	13x5.0-6
Lawn/turf rear	23x10.5-12

Dimensions
Wheelbase	51 inches 129 cm
Length	82.5 inches 209 cm
Width	47.7 inches 121 cm
Height (ROPS)	69.9 inches 177 cm
Height (Folded ROPS)	52.8 inches 134 cm
Weight	1168 lbs 529 kg
Front tread	34.3 inches 87 cm
Rear tread	36.6 inches 92 cm

Attachments

	2008 - ???? Z200 SeriesZero-turn mower
2008 - ????
Z200 Series
Zero-turn mower

2008 - ????
Z200 Series
Zero-turn mower

Photos

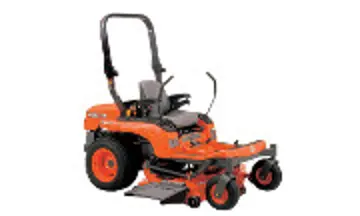

Kubota ZG222 tractor photo
