Lindner Geotrac 73

The Lindner Geotrac 73 is a tractor produced by Lindner. It is equipped with a 201.4 ci 3.3 L engine. The listed engine power is Diesel (listed): 74 hp / 55.2 kW. Transmission: 16 forward and 8 reverse. Operating weight: 6,505 lbs 2950 kg.

Engine Power
Diesel (listed): 74 hp / 55.2 kW
Fuel & Capacities
22.5 gal 85.2 L
Transmission
16 forward and 8 reverse
Operating Weight
6,505 lbs 2950 kg

Overview

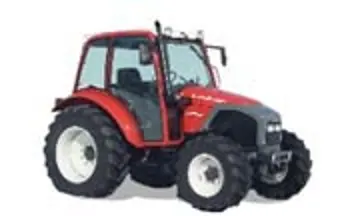

Lindner Geotrac 73 tractor photo
Production
Manufacturer
Lindner
Built in Austria
Lindner Geotrac 73 Engine
Perkins 3.3L 3-cyl diesel
Fuel tank
22.5 gal 85.2 L
Engine details ...
Lindner Geotrac 73 Transmission
16-speed
Transmission details ...
Lindner Geotrac 73 Power
Engine
74 hp 55.2 kW
Mechanical
Four-wheel drive
Hydraulics
Pressure
2537.5 psi 175.0 bar
Total flow
13.21 gpm 50.0 lpm
Power Take-off (PTO)
Rear PTO Type
430, 540, 750, 1000
Front PTO Type
1000
Dimensions & Tires
Wheelbase
82.3 inches 209 cm
Weight
6,505 lbs 2950 kg
Front tire
375/70R20
Rear tire
420/85R30
Full dimensions and tires ...

Engine

Engine Detail — 201.4 ci / 3.3 L Diesel

Manufacturer
Perkins 1103
Configuration
turbo diesel, 3-cylinder, liquid-cooled
Displacement
201.4 ci 3.3 L
Bore/Stroke
4.134x5.00 inches 105 x 127 mm
Power
74 hp 55.2 kW
Rated RPM
2200
Torque
291 lb-ft 394.6 Nm
Torque RPM
1400

Transmission

Transmission — 16 forward and 8 reverse

Gears
16 forward and 8 reverse

Dimensions

Lindner Geotrac 73 Tires
Ag front
375/70R20
Ag rear
420/85R30
Dimensions
Wheelbase
82.3 inches 209 cm
Length
149.2 inches 378 cm
Width
77.6 inches 197 cm
Height
96.5 inches 245 cm
Weight
6,505 lbs 2950 kg

Photos

Lindner Geotrac 73 tractor photo

Lindner Geotrac 73 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Lindner Geotrac 73 based on its 74 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
3 to 4 Bottom (16")3 - 4 铧 (40 cm)Heavy DutySuitable for medium loam and stubble turnover.
Rotary Cutter / MowerMowing & Clearing
7 to 8 ft (84-96 in)2.1 - 2.4 mHeavy DutyHeavy-duty twin spindle cutter for overgrown acreage.
Rotary TillerSeedbed Prep
78 to 84 in200 - 215 cmHeavy DutyHeavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage
7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙Medium DutyField leveling and clod breaking behind plows.
Hay BalerHay & Forage
4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机Heavy DutySilage and dry hay; 540 RPM PTO with slip-clutch.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Lindner Geotrac 73.

Estimated Continuous Field Runtime: 5.8 hrs

Approximately 5.8 hours of continuous field operation at ~75% rated power on a full tank (22.5 gal / 85.2 L).

Estimated 75% Load Fuel Burn~3.8 gal/hr (14.6 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Lindner Geotrac 73 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Lindner Geotrac 73.

Converted Equivalents:

Horsepower (HP)74 hp
Kilowatts (kW)55.2 kW
Metric Horsepower (PS / CV)75 PS

Direct Competitor Comparison

Compare Lindner Geotrac 73 against same-era industry alternatives in the same horsepower class.

Current Model
Lindner

Lindner Geotrac 73

Engine Power:Diesel (listed): 74 hp / 55.2 kW
★ Baseline Reference
Massey FergusonMarket Competitor

Massey Ferguson 265

Engine Power:66.7
Production Years:1975 - 1983
International HarvesterMarket Competitor

International Harvester Mogul 30-60

Engine Power:66.7
Production Years:1912 - 1917
DeereMarket Competitor

Deere 1650

Engine Power:67
Production Years:1984 - 1988
CaseMarket Competitor

Case 1390

Engine Power:66.7
Production Years:1980 - 1983
