Lindner Geotrac 103

The Lindner Geotrac 103 is a tractor produced by Lindner. It is equipped with a 268.5 ci 4.4 L engine. The listed engine power is Diesel (listed): 97 hp / 72.3 kW. Transmission: 16 forward and reverse. Operating weight: 8,203 lbs 3720 kg.

Engine Power
Diesel (listed): 97 hp / 72.3 kW
Fuel & Capacities
30.4 gal 115.1 L
Transmission
16 forward and reverse
Operating Weight
8,203 lbs 3720 kg

Overview

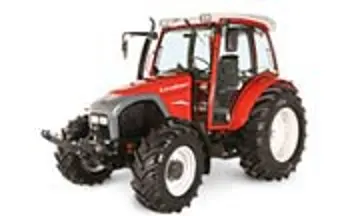

Lindner Geotrac 103 tractor photo
Production
Manufacturer
Lindner
Built in Austria
Lindner Geotrac 103 Engine
Perkins 4.4L 4-cyl diesel
Fuel tank
30.4 gal 115.1 L
Engine details ...
Lindner Geotrac 103 Transmission
16-speed
Transmission details ...
Lindner Geotrac 103 Power
Engine
97 hp 72.3 kW
Mechanical
Four-wheel drive
Hydraulics
Pressure
2537.5 psi 175.0 bar
Total flow
13.21 gpm 50.0 lpm
Power Take-off (PTO)
Rear PTO Type
430, 540, 750, 1000
Front PTO Type
1000
Dimensions & Tires
Wheelbase
88.1 inches 223 cm
Weight
8,203 lbs 3720 kg
Front tire
340/85R24
Rear tire
420/85R34
Full dimensions and tires ...

Engine

Engine Detail — 268.5 ci / 4.4 L Diesel

Manufacturer
Perkins 1104
Configuration
turbo diesel, 4-cylinder, liquid-cooled
Displacement
268.5 ci 4.4 L
Bore/Stroke
4.134x5.00 inches 105 x 127 mm
Power
97 hp 72.3 kW
Rated RPM
2200
Torque
404 lb-ft 547.8 Nm
Torque RPM
1400

Transmission

Transmission — 16 forward and reverse

Gears
16 forward and reverse

Dimensions

Lindner Geotrac 103 Tires
Ag front
340/85R24
Ag rear
420/85R34
Dimensions
Wheelbase
88.1 inches 223 cm
Length
151.6 inches 385 cm
Width
79.5 inches 201 cm
Height
100.8 inches 256 cm
Weight
8,203 lbs 3720 kg

Photos

Lindner Geotrac 103 tractor photo

Lindner Geotrac 103 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Lindner Geotrac 103 based on its 97 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)Heavy DutyHeavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing
10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼Heavy DutyWide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep
78 to 84 in200 - 215 cmHeavy DutyHeavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage
10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙Heavy DutyAggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage
5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机Heavy DutyHigh density baling; requires minimum 85 PTO HP.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Lindner Geotrac 103.

Estimated Continuous Field Runtime: 6 hrs

Approximately 6 hours of continuous field operation at ~75% rated power on a full tank (30.4 gal / 115.1 L).

Estimated 75% Load Fuel Burn~5 gal/hr (19.1 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Lindner Geotrac 103 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Lindner Geotrac 103.

Converted Equivalents:

Horsepower (HP)97 hp
Kilowatts (kW)72.3 kW
Metric Horsepower (PS / CV)98.3 PS

Direct Competitor Comparison

Compare Lindner Geotrac 103 against same-era industry alternatives in the same horsepower class.

Current Model
Lindner

Lindner Geotrac 103

Engine Power:Diesel (listed): 97 hp / 72.3 kW
★ Baseline Reference
KubotaMarket Competitor

Kubota GM90

Engine Power:87.8
Production Years:1998 - 2007
DeereMarket Competitor

Deere 2755

Engine Power:88
Production Years:1987 - 1992
Deutz-FahrMarket Competitor

Deutz-Fahr 4.61

Engine Power:88
Production Years:1990 - 1993
Massey FergusonMarket Competitor

Massey Ferguson 5290

Engine Power:88
Production Years:2002 - 2009
