Lindner Geotrac 63

The Lindner Geotrac 63 is a tractor produced by Lindner. It is equipped with a 201.4 ci 3.3 L engine. The listed engine power is Diesel (listed): 64 hp / 47.7 kW. Transmission: 16 forward and 8 reverse. Operating weight: 6,350 lbs 2880 kg.

Engine Power
Diesel (listed): 64 hp / 47.7 kW
Fuel & Capacities
17.2 gal 65.1 L
Transmission
16 forward and 8 reverse
Operating Weight
6,350 lbs 2880 kg

Overview

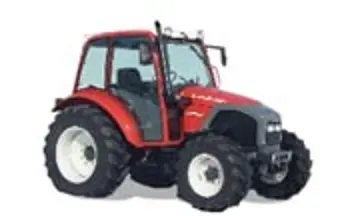

Lindner Geotrac 63 tractor photo
Production
Manufacturer
Lindner
Built in Austria
Lindner Geotrac 63 Engine
Perkins 3.3L 3-cyl diesel
Fuel tank
17.2 gal 65.1 L
Engine details ...
Lindner Geotrac 63 Transmission
16-speed
Transmission details ...
Lindner Geotrac 63 Power
Engine
64 hp 47.7 kW
Mechanical
Four-wheel drive
Hydraulics
Pressure
2537.5 psi 175.0 bar
Total flow
13.21 gpm 50.0 lpm
Power Take-off (PTO)
Rear PTO Type
430, 540, 750, 1000
Front PTO Type
1000
Dimensions & Tires
Wheelbase
82.0 inches 208 cm
Weight
6,350 lbs 2880 kg
Front tire
365/70R18
Rear tire
380/85R28
Full dimensions and tires ...

Engine

Engine Detail — 201.4 ci / 3.3 L Diesel

Manufacturer
Perkins 1103
Configuration
turbo diesel, 3-cylinder, liquid-cooled
Displacement
201.4 ci 3.3 L
Bore/Stroke
4.134x5.00 inches 105 x 127 mm
Power
64 hp 47.7 kW
Rated RPM
2200
Torque
270 lb-ft 366.1 Nm
Torque RPM
1400

Transmission

Transmission — 16 forward and 8 reverse

Gears
16 forward and 8 reverse

Dimensions

Lindner Geotrac 63 Tires
Ag front
365/70R18
Ag rear
380/85R28
Dimensions
Wheelbase
82.0 inches 208 cm
Length
157.5 inches 400 cm
Width
77.6 inches 197 cm
Height
92.5 inches 234 cm
Weight
6,350 lbs 2880 kg

Photos

Lindner Geotrac 63 tractor photo

Lindner Geotrac 63 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Lindner Geotrac 63 based on its 64 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
3 to 4 Bottom (16")3 - 4 铧 (40 cm)Heavy DutySuitable for medium loam and stubble turnover.
Rotary Cutter / MowerMowing & Clearing
6 ft (72 in)1.8 mMedium DutyMedium pasture clearing; rear slip-clutch recommended.
Rotary TillerSeedbed Prep
66 to 72 in165 - 180 cmMedium DutyStandard utility tiller; slip clutch protection required.
Disc HarrowSecondary Tillage
7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙Medium DutyField leveling and clod breaking behind plows.
Hay BalerHay & Forage
4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机Heavy DutySilage and dry hay; 540 RPM PTO with slip-clutch.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Lindner Geotrac 63.

Estimated Continuous Field Runtime: 5.2 hrs

Approximately 5.2 hours of continuous field operation at ~75% rated power on a full tank (17.2 gal / 65.1 L).

Estimated 75% Load Fuel Burn~3.3 gal/hr (12.6 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Lindner Geotrac 63 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Lindner Geotrac 63.

Converted Equivalents:

Horsepower (HP)64 hp
Kilowatts (kW)47.7 kW
Metric Horsepower (PS / CV)64.9 PS

Direct Competitor Comparison

Compare Lindner Geotrac 63 against same-era industry alternatives in the same horsepower class.

Current Model
Lindner

Lindner Geotrac 63

Engine Power:Diesel (listed): 64 hp / 47.7 kW
★ Baseline Reference
New HollandMarket Competitor

New Holland 3930

Engine Power:57.8
Production Years:1990 - 2002
International HarvesterMarket Competitor

International Harvester 544

Engine Power:57.8
Production Years:1968 - 1973
KubotaMarket Competitor

Kubota M5660SU

Engine Power:57.9
Production Years:2015 - 2025
Massey FergusonMarket Competitor

Massey Ferguson 363

Engine Power:58
Production Years:1987 - 1994
