Lindner Geotrac 93

The Lindner Geotrac 93 is a tractor produced by Lindner. It is equipped with a 268.5 ci 4.4 L engine. The listed engine power is Diesel (listed): 90 hp / 67.1 kW. Transmission: 16 forward and reverse. Operating weight: 7,453 lbs 3380 kg.

Engine Power
Diesel (listed): 90 hp / 67.1 kW
Fuel & Capacities
22.5 gal 85.2 L
Transmission
16 forward and reverse
Operating Weight
7,453 lbs 3380 kg

Overview

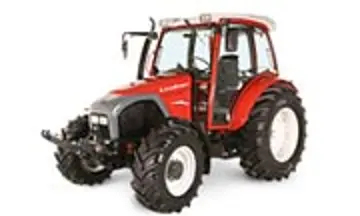

Lindner Geotrac 93 tractor photo
Production
Manufacturer
Lindner
Built in Austria
Lindner Geotrac 93 Engine
Perkins 4.4L 4-cyl diesel
Fuel tank
22.5 gal 85.2 L
Engine details ...
Lindner Geotrac 93 Transmission
16-speed
Transmission details ...
Lindner Geotrac 93 Power
Engine
90 hp 67.1 kW
Mechanical
Four-wheel drive
Hydraulics
Pressure
2537.5 psi 175.0 bar
Total flow
13.21 gpm 50.0 lpm
Power Take-off (PTO)
Rear PTO Type
430, 540, 750, 1000
Front PTO Type
1000
Dimensions & Tires
Wheelbase
86.4 inches 219 cm
Weight
7,453 lbs 3380 kg
Front tire
375/70R20
Rear tire
420/85R30
Full dimensions and tires ...

Engine

Engine Detail — 268.5 ci / 4.4 L Diesel

Manufacturer
Perkins 1104C-44
Configuration
turbo diesel, 4-cylinder, liquid-cooled
Displacement
268.5 ci 4.4 L
Bore/Stroke
4.134x5.00 inches 105 x 127 mm
Power
90 hp 67.1 kW
Rated RPM
2200
Torque
370 lb-ft 501.7 Nm
Torque RPM
1400

Transmission

Transmission — 16 forward and reverse

Gears
16 forward and reverse

Dimensions

Lindner Geotrac 93 Tires
Ag front
375/70R20
Ag rear
420/85R30
Dimensions
Wheelbase
86.4 inches 219 cm
Length
149.2 inches 378 cm
Width
77.6 inches 197 cm
Height
96.5 inches 245 cm
Weight
7,453 lbs 3380 kg

Photos

Lindner Geotrac 93 tractor photo

Lindner Geotrac 93 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Lindner Geotrac 93 based on its 90 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)Heavy DutyHeavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing
7 to 8 ft (84-96 in)2.1 - 2.4 mHeavy DutyHeavy-duty twin spindle cutter for overgrown acreage.
Rotary TillerSeedbed Prep
78 to 84 in200 - 215 cmHeavy DutyHeavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage
10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙Heavy DutyAggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage
4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机Heavy DutySilage and dry hay; 540 RPM PTO with slip-clutch.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Lindner Geotrac 93.

Estimated Continuous Field Runtime: 4.8 hrs

Approximately 4.8 hours of continuous field operation at ~75% rated power on a full tank (22.5 gal / 85.2 L).

Estimated 75% Load Fuel Burn~4.7 gal/hr (17.7 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Lindner Geotrac 93 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Lindner Geotrac 93.

Converted Equivalents:

Horsepower (HP)90 hp
Kilowatts (kW)67.1 kW
Metric Horsepower (PS / CV)91.2 PS
