Massey Ferguson 1130

The Massey Ferguson 1130 is a tractor produced by Massey Ferguson. It is equipped with a 354 ci 5.8 L engine. The listed engine power is 120.51 hp 89.9 kW. Transmission: Multi-Power. Operating weight: 9500 to 13560 pounds.

Engine Power

120.51 hp 89.9 kW

Fuel & Capacities

50 gal 189.2 L

Transmission

Multi-Power

Operating Weight

9500 to 13560 pounds

Overview

	1964 - 1972 1000 SeriesRow-Crop tractor 1000 Series Row-Crop tractor

Production
Manufacturer	Massey Ferguson
Row-Crop tractor
Original price was $11,500 in 1972

Massey Ferguson 1130 Engine
Perkins 5.8L 6-cyl diesel
Engine details ...

Massey Ferguson 1130 Transmission
12-speed two-speed power shift
Transmission details ...

Massey Ferguson 1130 Power
Drawbar (claimed)	106 hp 79.0 kW
PTO (claimed)	121 hp 90.2 kW
Drawbar (tested)	106.91 hp 79.7 kW
PTO (tested)	120.51 hp 89.9 kW
Performance test details ...

Mechanical
Two-wheel drive
Differential lock	hydraulic rear OptOptional
Power steering
Hydraulic wet disc brakes
Open operator station. Cab optional with available air-conditioning.

Capacity
Fuel	50 gal 189.2 L
Hydraulic system	17 gal 64.3 L

Hydraulics
Type	closed center
Capacity	17 gal 64.3 L
Valves	1
Pump flow	20 gpm 75.7 lpm

Tractor hitch
Rear Type	II
Control	position and draft control

Power Take-off (PTO)
Rear PTO	independent
Clutch	wet disc
Rear PTO Type	540/1000 (1.375)

Dimensions & Tires
Wheelbase	102 inches 259 cm
Weight	9500 to 13560 pounds
Front tire	11.00-16
Rear tire	24.5-32
Full dimensions and tires ...

Electrical
Ground	negatve
Charging system	alternator
Batteries	2
Battery volts	12

References

MF Row Crop Tractors published in 1969, by Massey Ferguson
MF 1100 Series Tractor Product Information Manual published by Massey Ferguson

Engine

Engine Detail — 354 ci / 5.8 L Diesel

Manufacturer	Perkins AT6.534
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled inline
Displacement	354 ci 5.8 L
Bore/Stroke	3.875x5.00 inches 98 x 127 mm
Air cleaner	dry
Compression	16:1
Rated RPM	2200
Starter volts	12
Oil capacity	16 qts 15.1 L
Coolant capacity	22 qts 20.8 L

Massey Ferguson 1130 Engine

Transmission

Transmission — Multi-Power

Transmission	Multi-Power
Type	two-speed power shift
Gears	12 forward and 4 reverse
Clutch	279.4mm dry disc
Three gears in two ranges with two-speed Multi-Power power shift.

Dimensions

Massey Ferguson 1130 Tires
Ag front	11.00-16
Ag rear	24.5-32

Dimensions
Wheelbase	102 inches 259 cm
Length	165 inches 419 cm
Height (steering wheel)	74.6 inches 189 cm
Height (cab)	113.5 inches 288 cm
Rear axle	3.25 inch diameter 82 mm
Front tread	56 to 80 inches 142 to 203 cm
Rear tread	60 to 96 inches 152 to 243 cm
Rear tread	60 to 120 inches 152 to 304 cm

Massey Ferguson 1130 Weight
Shipping	9500 lbs 4309 kg
Operating	13560 lbs 6150 kg
Ballasted	18460 lbs 8373 kg

Tests

Nebraska Tractor Test 948
Diesel 12-speed 2WD October 7 - 19, 1966 Link: Nebraska Tractor Test 948 file
PTO performance
Power at rated engine speed	120.51 hp 89.9 kW
Fuel use	7.6 gal/hour 28.8 l/hour
Power at rated PTO speed	117.35 hp 87.5 kW
Fuel use	7.1 gal/hour 26.9 l/hour
Drawbar performance
Max power	106.91 hp 79.7 kW
Fuel use	7.5 gal/hour 28.4 l/hour
Gear 5 used for power test.

Photos

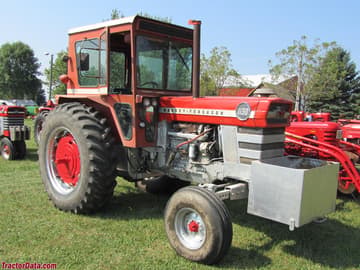

Massey Ferguson 1130 with cab.

Open station Massey Ferguson 1130.

Recommended Implements & Sizing Guide

Engineering recommendations for Massey Ferguson 1130 based on its 120.51 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)	Heavy Duty	Heavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing	10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼	Heavy Duty	Wide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙	Commercial / Field Scale	Wide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage	5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机	Heavy Duty	High density baling; requires minimum 85 PTO HP.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson 1130.

Estimated Continuous Field Runtime: 8 hrs

Approximately 8 hours of continuous field operation at ~75% rated power on a full tank (50 gal / 189.3 L).

Estimated 75% Load Fuel Burn~6.3 gal/hr (23.7 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
