Massey Ferguson 154-4
The Massey Ferguson 154-4 is a tractor produced by Massey Ferguson. It is equipped with a 152.7 ci 2.5 L engine. The rated power output is 50 hp 37.3 kW. Transmission: 12 forward and 4 reverse. Operating weight: 5176 lbs 2347 kg.
Engine Power
50 hp
37.3 kW
Fuel & Capacities
16 gal
60.6 L
Transmission
12 forward and 4 reverse
Operating Weight
5176 lbs
2347 kg
Massey Ferguson 154-4 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1980 - 1981
104 SeriesUtility tractorLandini built |
|---|---|
1980 - 1981 | |
104 Series | |
Utility tractor | |
Landini built | |
1980 - 1981 | |
|---|---|
104 Series | |
Utility tractor | |
Landini built |
Production | |
|---|---|
Distributor | Massey Ferguson |
Manufacturer | Landini |
Utility tractor | |
Built in Italy | |
Original price was $18,700 in 1981 | |
Variants | |
|---|---|
154 | 2WD |
154-4 | 4WD |
Massey Ferguson 154-4 Engine | |
|---|---|
Perkins 2.5L 3-cyl diesel | |
Fuel tank | 16 gal
60.6 L |
Engine details ...  | |
Massey Ferguson 154-4 Transmission | |
|---|---|
12-speed partially synchronized | |
Transmission details ...  |
Massey Ferguson 154-4 Power | |
|---|---|
Engine | 50 hp
37.3 kW |
PTO (claimed) | 42 hp
31.3 kW |
Drawbar (tested) | 35.56 hp
26.5 kW |
PTO (tested) | 42.52 hp
31.7 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Four-wheel drive | |
Differential lock | mechanical rear |
Power steering | |
Dry disc brakes | |
Open operator station. Cab optional. | |
Hydraulics | |
|---|---|
Type | open center |
Pump flow | 7.4 gpm
28.0 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position and draft control |
Rear lift (at ends) | 5842 lbs
2649 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | dry disc |
Rear PTO Type | 540 (1.375) |
540/1000 (1.375)OptOptional | |
Engine RPM | 540@1944 |
1000@1916 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 81.1 inches
205 cm |
Weight | 5176 lbs
2347 kg |
Front tire | 9.5/9-20 |
Rear tire | 13.6/12-28 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Operator Instruction Book 154 - 174 - 184 - 194 (3300912M2)* | |
*Publication contains known errors. |
Engine
| 1980 - 1981
104 SeriesUtility tractorLandini built |
|---|---|
1980 - 1981 | |
104 Series | |
Utility tractor | |
Landini built | |
1980 - 1981 | |
|---|---|
104 Series | |
Utility tractor | |
Landini built |
Engine Detail — 152.7 ci / 2.5 L Diesel
Manufacturer | Perkins AD3.152 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 152.7 ci
2.5 L |
Bore/Stroke | 3.60x5.00 inches
91 x 127 mm |
Power | 50 hp
37.3 kW |
Fuel system | direct injection |
Air cleaner | oil bath |
Compression | 17.4:1 |
Rated RPM | 2200 |
Idle RPM | 650-2390 |
Torque | 126.6 lb-ft
171.7 Nm |
Torque RPM | 1350 |
Firing order | 1-2-3 |
Starter | electric |
Starter volts | 12 |
Coolant capacity | 11 qts
10.4 L |
Intake valve clearance | 0.012 inches (cold)
0.305 mm |
Exhaust valve clearance | 0.012 inches (cold)
0.305 mm |
Transmission
| 1980 - 1981
104 SeriesUtility tractorLandini built |
|---|---|
1980 - 1981 | |
104 Series | |
Utility tractor | |
Landini built | |
1980 - 1981 | |
|---|---|
104 Series | |
Utility tractor | |
Landini built |

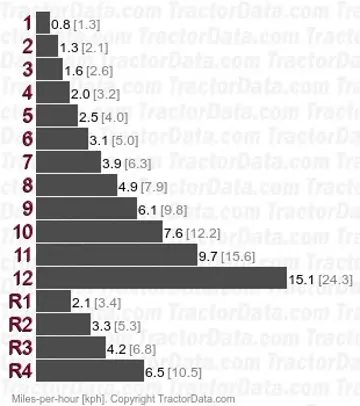

Transmission — 12 forward and 4 reverse partially synchronized
Type | partially synchronized |
Gears | 12 forward and 4 reverse |
Clutch | 279.4mm dry disc |
Four synchronized gears in three ranges, plus reverse range. Tractor must be stopped, and clutch used, to shift range. | |
 | |
Dimensions
| 1980 - 1981
104 SeriesUtility tractorLandini built |
|---|---|
1980 - 1981 | |
104 Series | |
Utility tractor | |
Landini built | |
1980 - 1981 | |
|---|---|
104 Series | |
Utility tractor | |
Landini built |
Massey Ferguson 154-4 Tires | |
|---|---|
Standard tires (ag) | Front: 9.5/9-20. Rear: 13.6/12-28 |
Optional tires (ag) | Front: 8.3/8-24. Rear: 14.9/13-28 |
Front: 8.3/8-24. Rear: 12.4/11-32 | |
Dimensions | |
|---|---|
Wheelbase | 81.1 inches
205 cm |
Length | 140 inches
355 cm |
Width | 60.6 inches*Minimum width
153 cm |
Operating weight | 5176 lbs
2347 kg |
Ballasted weight | 6920 lbs
3138 kg |
Clearance (front axle) | 12 inches
30 cm |
Front tread | 59.1 inches
150 cm |
Rear tread | 47.2 to 74.8 inches
119 to 189 cm |
Massey Ferguson 154-4 Height | |
|---|---|
Steering wheel | 61.4 inches
155 cm |
Hood | 53.7 inches
136 cm |
ROPS | 87.8 inches
223 cm |
Tests
| 1980 - 1981
104 SeriesUtility tractorLandini built |
|---|---|
1980 - 1981 | |
104 Series | |
Utility tractor | |
Landini built | |
1980 - 1981 | |
|---|---|
104 Series | |
Utility tractor | |
Landini built |
Nebraska Tractor Test 1411 | |
|---|---|
Diesel 12-speed 4WD
October 12 - 19, 1981
Link: Nebraska Tractor Test 1411 file | |
PTO performance | |
Power at rated engine speed | 42.52 hp
31.7 kW |
Fuel use | 2.6 gal/hour
9.8 l/hour |
Power at rated PTO speed | 40.38 hp
30.1 kW |
Fuel use | 2.3 gal/hour
8.7 l/hour |
Drawbar performance | |
Max power | 35.56 hp
26.5 kW |
Fuel use | 2.5 gal/hour
9.5 l/hour |
Gear 8 used for power test. | |
Max pull | 5138 lbs
2330 kg |
Gear 5 used for pull test. | |
