Massey Ferguson 3505

The Massey Ferguson 3505 is a tractor produced by Massey Ferguson. It is equipped with a 354 ci 5.8 L engine. The listed engine power is Diesel (listed): 110 hp / 82.0 kW. Transmission: 16 forward and 12 reverse. Operating weight: 12,935 lbs 5867 kg.

Engine Power

Diesel (listed): 110 hp / 82.0 kW

Fuel & Capacities

Diesel

Transmission

16 forward and 12 reverse

Operating Weight

12,935 lbs 5867 kg

Overview

	1983 - 1987 3500 SeriesRow-Crop tractor 3500 Series Row-Crop tractor

Production
Manufacturer	Massey Ferguson
Row-Crop tractor
Built in France
Original price	$38,000 (1987)

Massey Ferguson 3505 Engine
Perkins 5.8L 6-cyl diesel
Engine details ...

Massey Ferguson 3505 Transmission
16-speed partial power shift
Transmission details ...

Massey Ferguson 3505 Power
Engine	110 hp 82.0 kW
Drawbar (claimed)	73 hp 54.4 kW
PTO (claimed)	90 hp 67.1 kW
Drawbar (tested)	74.18 hp 55.3 kW
PTO (tested)	91.50 hp 68.2 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Differential lock	hydraulic
Steering	hydrostatic power
Differential hydraulic wet disc brakes
Cab standard with air-conditioning.

Hydraulics
Type	open center
Pressure	2539 psi 175.1 bar
Valves	2 or 3
Pump flow	15 gpm 56.8 lpm
Total flow	29.5 gpm (total) 111.7 lpm
	14.5 gpm (main pump) 54.9 lpm
	15 gpm (two-spool aux pump) 56.8 lpm

Tractor hitch
Rear Type	II
Rear lift (at 24"/610mm)	7,611 lbs 3452 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	107 inches 271 cm
Weight	12,935 lbs 5867 kg
Front tire	10.00-16
Rear tire	18.4-38
Full dimensions and tires ...

Engine

Engine Detail — 354 ci / 5.8 L Diesel

Manufacturer	Perkins
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	354 ci 5.8 L
Bore/Stroke	3.875x5.00 inches 98 x 127 mm
Power	110 hp 82.0 kW
Air cleaner	dual paper elements
Compression	16:1
Rated RPM	2400
Starter volts	12

Transmission

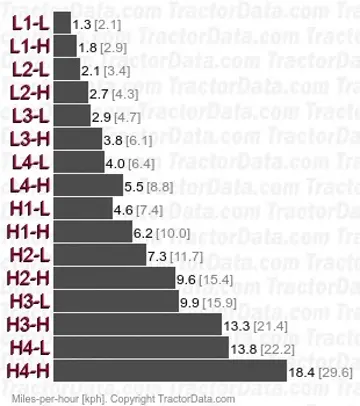

Transmission — 16 forward and 12 reverse partial power shift

Type	partial power shift
Gears	16 forward and 12 reverse
Four gears (1-4) in two ranges (low/high) plus two-speed push-button power shift. Manual shuttle. Shifts within range are synchronized.
With 18.4x38 rear tires.

Dimensions

Massey Ferguson 3505 Tires
Ag front	10.00-16
Ag rear	18.4-38

Dimensions
Wheelbase	107 inches 271 cm
Length	185 inches 469 cm
Width	94 inches 238 cm
Operating weight	12,935 lbs 5867 kg
Ballasted weight	13,195 lbs 5985 kg
Rear axle	3.25 inch diameter 82 mm
Front tread	61 to 85 inches 154 to 215 cm (2WD)
Front tread	63 to 81 inches 160 to 205 cm (4WD)
Rear tread	60 to 98 inches 152 to 248 cm

Tests

Nebraska Tractor Test 1511
Diesel 16-speed 4WD April 17 - 27, 1984 Link: Nebraska Tractor Test 1511 file
PTO performance
Power at rated engine speed	91.50 hp 68.2 kW
Fuel use	6.4 gal/hour 24.2 l/hour
Power at rated PTO speed	87.47 hp 65.2 kW
Fuel use	5.6 gal/hour 21.2 l/hour
Drawbar performance
Max power	74.18 hp 55.3 kW
Fuel use	6.3 gal/hour 23.8 l/hour
Gear 10 used for power test.
Max pull	8,344 lbs 3784 kg
Gear 5 used for pull test.

Attachments

Attachment overview
Massey Ferguson 246 loader
Massey Ferguson 856 loader

Photos

Massey Ferguson 3505

Recommended Implements & Sizing Guide

Engineering recommendations for Massey Ferguson 3505 based on its 110 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)	Heavy Duty	Heavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing	10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼	Heavy Duty	Wide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙	Heavy Duty	Aggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage	5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机	Heavy Duty	High density baling; requires minimum 85 PTO HP.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson 3505.

Estimated Continuous Field Runtime: 1.1 hrs

Approximately 1.1 hours of continuous field operation at ~75% rated power on a full tank (6.3 gal / 23.8 L).

Estimated 75% Load Fuel Burn~5.7 gal/hr (21.7 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
