Massey Ferguson 4292

The Massey Ferguson 4292 is a tractor produced by Massey Ferguson. It is equipped with a 268.4 ci 4.4 L engine. The listed engine power is Diesel (listed): 110 hp / 82.0 kW. Transmission: 12 forward and 4 reverse. Operating weight: 14815 lbs 6720 kg.

Engine Power

Diesel (listed): 110 hp / 82.0 kW

Fuel & Capacities

52.8 gal 199.8 L

Transmission

12 forward and 4 reverse

Operating Weight

14815 lbs 6720 kg

Overview

	2010 - 2020 4200 Latin America SeriesRow-Crop tractor 4200 Latin America Series Row-Crop tractor

Production
Manufacturer	Massey Ferguson (a part of AGCO)
Row-Crop tractor
Built in Canoas, Brazil

Massey Ferguson 4292 Engine
AGCO Power 4.4L 4-cyl diesel
Engine details ...

Massey Ferguson 4292 Transmission
12-speed synchromesh
Transmission details ...

Massey Ferguson 4292 Power
Engine	110 hp 82.0 kW
PTO (claimed)	100 hp 74.6 kW

Mechanical
Two- or four-wheel drive
Final drives	planetary
Differential lock	mechanical rear
Power steering
Hydraulic wet disc brakes
Two-post fixed ROPS. Cab optional.

Capacity
Fuel	52.8 gal 199.8 L
Hydraulic system	12.2 gal 46.2 L

Hydraulics
Capacity	12.2 gal 46.2 L
Pressure	2466 psi 170.0 bar
Valves	2 or 3
Pump flow	17.7 gpm 67.0 lpm
	19.8 gpmOptOptional 74.9 lpm

Tractor hitch
Rear Type	II

Power Take-off (PTO)
Rear PTO	independent
Clutch	dry disc
Rear PTO Type	540/1000 (1.375)
Engine RPM	540@1900
	1000@1900

Dimensions & Tires
Wheelbase	102.8 inches 261 cm
Weight	14815 lbs 6720 kg
Front tire	14.9-24
Rear tire	18.4-34
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
ROPS Charging amps	55
Cab Charging amps	120
Battery volts	12

References

Series 4200 published in 2010, by Massey Ferguson
MF4292 published in 2010, by Massey Ferguson

Engine

Engine Detail — 268.4 ci / 4.4 L Diesel

Manufacturer	AGCO Power 420DS
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled inline
Displacement	268.4 ci 4.4 L
Bore/Stroke	4.25x4.72 inches 108 x 120 mm
Power	110 hp 82.0 kW
Rated RPM	2200
Torque	317 lb-ft 429.9 Nm
Torque RPM	1400
Starter	electric
Starter volts	12
Oil capacity	9.5 qts 9.0 L

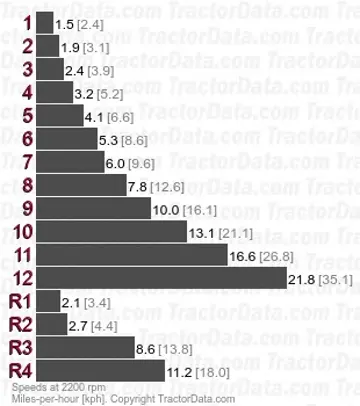

Transmission

Transmission — 12 forward and 4 reverse synchromesh

Type	synchromesh
Gears	12 forward and 4 reverse
Clutch	dry disc
With 18.4-34 rear tires.

Dimensions

Massey Ferguson 4292 Tires
Standard tires (ag)	Front: 14.9-24. Rear: 18.4-34

Dimensions
Wheelbase	102.8 inches 261 cm
Length	168.1 inches 426 cm
Height	102.4 inches 260 cm
Weight	14815 lbs 6720 kg
Ground clearance	15.8 inches 40 cm
Rear tread	61.4 to 85.2 inches 155 to 216 cm

Photos

Massey Ferguson 4292

Recommended Implements & Sizing Guide

Engineering recommendations for Massey Ferguson 4292 based on its 110 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)	Heavy Duty	Heavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing	10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼	Heavy Duty	Wide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙	Heavy Duty	Aggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage	5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机	Heavy Duty	High density baling; requires minimum 85 PTO HP.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson 4292.

Estimated Continuous Field Runtime: 9.2 hrs

Approximately 9.2 hours of continuous field operation at ~75% rated power on a full tank (52.8 gal / 199.9 L).

Estimated 75% Load Fuel Burn~5.7 gal/hr (21.7 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
