Massey Ferguson 5470

The Massey Ferguson 5470 is a tractor produced by Massey Ferguson. It is equipped with a 268 ci 4.4 L engine. The listed engine power is Diesel (listed): 125 hp / 93.2 kW. Transmission: Dyna-4. Operating weight: 9545 to 10385 pounds.

Engine Power

Diesel (listed): 125 hp / 93.2 kW

Fuel & Capacities

38 gal 143.8 L

Transmission

Dyna-4

Operating Weight

9545 lbs 4329 kg

Overview

	2005 - 2013 Model year 2005-20082008-2013 5400 SeriesUtility tractor 5400 Series Utility tractor

Production
Manufacturer	Massey Ferguson
Utility tractor
Built in Beauvais, France

Variants
5470SA	low-profile and narrow, special applications

Massey Ferguson 5470 Engine
Sisu 4.4L 4-cyl diesel
Fuel tank	38 gal 143.8 L
	55 gal (with optional tank) 208.2 L
Engine details ...

Massey Ferguson 5470 Transmission
16-speed
Transmission details ...

Massey Ferguson 5470 Power
Engine	125 hp 93.2 kW
Drawbar (claimed)	89 hp 66.4 kW
PTO (claimed)	105 hp 78.3 kW
Drawbar (tested)	88.5 hp 66.0 kW
PTO (tested)	110.6 hp 82.5 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Power steering
Independent hydraulic wet disc brakes
cab standard

Hydraulics
Type	open center
	closed OptOptional
Pressure	2900 psi 200.0 bar
Valves	2 to 5
Total flow	15 gpm (open) 56.8 lpm
	34.8 gpm (combined flow) 131.7 lpm
	29 gpm (closed) 109.8 lpm

Tractor hitch
Rear Type	II
Rear lift (at 24"/610mm)	7000 lbs 3175 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000
	540E/1000 OptOptional

Dimensions & Tires
Wheelbase	105.1 inches 266 cm
Weight	9545 to 10385 pounds
Front tire	10.00-16
Rear tire	18.4R38
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	80
	120 OptOptional
Battery CCA	505
Battery volts	12

References

5400 Series published in 2006, by Massey Ferguson

Engine

Engine Detail — 268 ci / 4.4 L Diesel

Manufacturer	Sisu 44DT
Configuration	turbocharged intercooled diesel, 4-cylinder, liquid-cooled vertical
Displacement	268 ci 4.4 L
Bore/Stroke	4.252x4.724 inches 108 x 120 mm
Emissions	Tier II
Power	125 hp 93.2 kW
Air cleaner	dual paper elements
Compression	18.5:1
Rated RPM	2200
Starter volts	12

Massey Ferguson 5470 Engine

Transmission

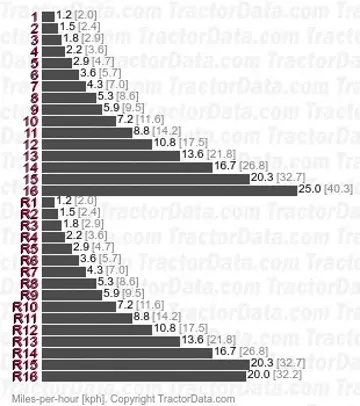

Transmission — Dyna-4

Transmission	Dyna-4
Gears	16 forward and reverse

Dimensions

Massey Ferguson 5470 Tires
Ag front	10.00-16 (2WD)
Ag rear	18.4R38

Dimensions
Wheelbase	105.1 inches 266 cm
Length	171.3 inches 435 cm
Width	79.3 inches 201 cm
Height	110.2 inches 279 cm
2WD Operating weight	9545 lbs 4329 kg
4WD Operating weight	10385 lbs 4710 kg

Tests

OCED Tractor Test 2359
Diesel 16-speed 4WD May 2006 - 2006, Link: OCED Tractor Test 2359 file
PTO performance
Max power	110.6 hp 82.5 kW
Fuel use	6.0 gal/hour 22.7 l/hour
Power at rated engine speed	108.0 hp 80.5 kW
Fuel use	6.3 gal/hour 23.8 l/hour
Power at rated PTO speed	110.5 hp 82.4 kW
Fuel use	6.0 gal/hour 22.7 l/hour
Drawbar performance
Max power	88.5 hp 66.0 kW
Fuel use	6.4 gal/hour 24.2 l/hour
Gear 9 used for power test.
Max pull	9510 lbs 4313 kg
Gear 1D used for pull test.

Photos

Massey Ferguson 5470

Recommended Implements & Sizing Guide

Engineering recommendations for Massey Ferguson 5470 based on its 125 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)	Heavy Duty	Heavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing	10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼	Heavy Duty	Wide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙	Commercial / Field Scale	Wide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage	5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机	Heavy Duty	High density baling; requires minimum 85 PTO HP.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson 5470.

Estimated Continuous Field Runtime: 5.8 hrs

Approximately 5.8 hours of continuous field operation at ~75% rated power on a full tank (38 gal / 143.8 L).

Estimated 75% Load Fuel Burn~6.5 gal/hr (24.6 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
