Massey Ferguson 6713

The Massey Ferguson 6713 is a tractor produced by Massey Ferguson. It is equipped with a 268.5 ci 4.4 L engine. The listed engine power is Diesel (listed): 125 hp / 93.2 kW. Transmission: 12 forward and reverse. Operating weight: 8840 to 9017 pounds.

Engine Power

Diesel (listed): 125 hp / 93.2 kW

Fuel & Capacities

38.3 gal 145.0 L

Transmission

12 forward and reverse

Operating Weight

8840 to 9017 pounds

Overview

	2017 - 6700 SeriesUtility tractor
2017 -
6700 Series
Utility tractor

Production
Manufacturer	Massey Ferguson (a part of AGCO)
Utility tractor

Massey Ferguson 6713 Engine
AGCO Power 4.4L 4-cyl diesel
Fuel tank	38.3 gal 145.0 L
Engine details ...

Massey Ferguson 6713 Transmission
12-speed power shuttle
Transmission details ...

Massey Ferguson 6713 Power
Engine	125 hp 93.2 kW
PTO (claimed)	110 hp 82.0 kW

Mechanical
Four-wheel drive
Final drives	internal planetary
Differential lock	electro-hydraulic rear
Power steering
Wet disc brakes
Two-post folding ROPS. Cab optional.

Hydraulics
Type	open center
Valves	2 or 3
Pump flow	15.1 gpm 57.2 lpm
	25.9 gpm*Optional, with additional 41L auxiliary pump. 98.0 lpm

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/540E/1000

Dimensions & Tires
Wheelbase	98.4 inches 249 cm
Weight	8840 to 9017 pounds
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	80
Battery volts	12

References

MF 5700 and MF 6700 12x12 Power Shuttle and Dyna-4 Global Series published in 2021, by Massey Ferguson

Engine

Engine Detail — 268.5 ci / 4.4 L Diesel

Manufacturer	AGCO Power
Configuration	intercooled turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	268.5 ci 4.4 L
Bore/Stroke	4.25x4.72 inches 108 x 120 mm
Emissions	Tier IV
Emission control	selective catalytic reduction (SCR)
Power	125 hp 93.2 kW
Maximum Power	130 hp 96.9 kW
Fuel system	high-pressure common rail direct injection
Rated RPM	2200
Torque	540 lb-ft 732.2 Nm
Torque RPM	1500
Starter	electric
Starter volts	12

Transmission

Transmission — 12 forward and reverse power shuttle

Type	power shuttle
Gears	12 forward and reverse
Clutch	wet disc

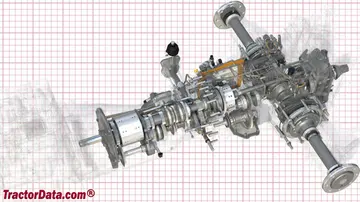

Massey Ferguson 6713 Transmission

Dimensions

Massey Ferguson 6713 Tires

Dimensions
Wheelbase	98.4 inches 249 cm
Width	70.7 inches*Minimum 179 cm
ROPS Weight	8840 lbs 4009 kg
Cab Weight	9017 lbs 4090 kg
Flange rear axle

Attachments

Attachment overview
Massey Ferguson 941X loader
Massey Ferguson 946X loader
Massey Ferguson FL3723 loader
Massey Ferguson FL3819 loader

Photos

Massey Ferguson 6713

Recommended Implements & Sizing Guide

Engineering recommendations for Massey Ferguson 6713 based on its 125 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)	Heavy Duty	Heavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing	10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼	Heavy Duty	Wide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙	Commercial / Field Scale	Wide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage	5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机	Heavy Duty	High density baling; requires minimum 85 PTO HP.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson 6713.

Estimated Continuous Field Runtime: 5.9 hrs

Approximately 5.9 hours of continuous field operation at ~75% rated power on a full tank (38.3 gal / 145 L).

Estimated 75% Load Fuel Burn~6.5 gal/hr (24.6 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
