Massey Ferguson 8260

The Massey Ferguson 8260 is a tractor produced by Massey Ferguson. It is equipped with a 449.4 ci 7.4 L engine. The listed engine power is 181.26 hp 135.2 kW. Transmission: 18 forward and 6 reverse. Operating weight: 18,845 lbs 8548 kg.

Engine Power

181.26 hp 135.2 kW

Fuel & Capacities

120 gal 454.2 L

Transmission

18 forward and 6 reverse

Operating Weight

18,845 lbs 8548 kg

Overview

	1999 - 2003 8200 SeriesRow-Crop tractor 8200 Series Row-Crop tractor

Production
Manufacturer	Massey Ferguson
Row-Crop tractor
Original price	$108,600

Massey Ferguson 8260 Engine
Valmet 7.4L 6-cyl diesel
Engine details ...

Massey Ferguson 8260 Transmission
18-speed full power shift
Transmission details ...

Massey Ferguson 8260 Power
PTO (claimed)	180 hp 134.2 kW
PTO (tested)	184.49 hp 137.6 kW
Performance test details ...

Mechanical
Four-wheel drive
Steering	hydrostatic power
Independent hydraulic wet disc brakes
Cab standard

Capacity
Fuel	120 gal 454.2 L
Hydraulic system	28.7 gal 108.6 L

Hydraulics
Type	pressure flow compensated (PFC)
Capacity	28.7 gal 108.6 L
Valves	4

Tractor hitch
Rear Type	III
Rear lift	16000 lbs 7257 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	1000

Dimensions & Tires
Wheelbase	121 inches 307 cm
Weight	18,845 lbs 8548 kg
Front tire	14.9R-28
Rear tire	18.4R-38
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References

MF Loaders for Compact & Agricultural Tractors published in 2003, by Massey Ferguson

Engine

Engine Detail — 449.4 ci / 7.4 L Diesel

Manufacturer	Valmet
Configuration	turbocharged intercooled diesel, 6-cylinder, liquid-cooled
Displacement	449.4 ci 7.4 L
Bore/Stroke	4.251x5.278 inches 108 x 134 mm
Air cleaner	dual paper elements
Compression	16.5:1
Rated RPM	2200
Starter volts	12
Coolant capacity	26 qts 24.6 L

Transmission

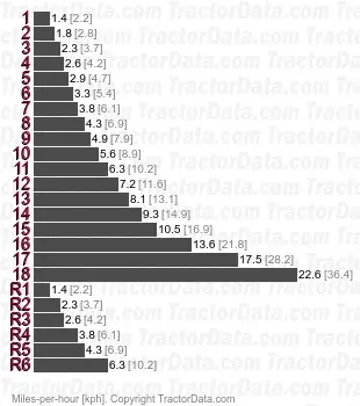

Transmission — 18 forward and 6 reverse full power shift

Type	full power shift
Gears	18 forward and 6 reverse
Clutch	electro-hydraulic wet disc

Dimensions

Massey Ferguson 8260 Tires
Ag front	14.9R-28
Ag rear	18.4R-38

Dimensions
Wheelbase	121 inches 307 cm
Operating weight	18,845 lbs 8548 kg

Tests

Nebraska Tractor Test 1782B
Diesel 18-speed 4WD September 19 - 26, 2000 Link: Nebraska Tractor Test 1782B file
PTO performance
Max power	184.49 hp 137.6 kW
Fuel use	10.6 gal/hour 40.1 l/hour
Power at rated engine speed	181.26 hp 135.2 kW
Fuel use	11.3 gal/hour 42.8 l/hour
Power at rated PTO speed	183.87 hp 137.1 kW
Fuel use	10.9 gal/hour 41.3 l/hour

Photos

Massey Ferguson 8260

Recommended Implements & Sizing Guide

Engineering recommendations for Massey Ferguson 8260 based on its 181.26 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	5 to 7 Bottom (18")5 - 7 铧 (45 cm)	Commercial / Field Scale	Large acreage tillage; requires front ballast weights.
Rotary Cutter / MowerMowing & Clearing	15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼	Commercial / Field Scale	Large commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙	Commercial / Field Scale	Wide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage	Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)	Commercial / Field Scale	High-capacity commercial forage harvesting (1000 RPM PTO).

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson 8260.

Estimated Continuous Field Runtime: 12.7 hrs

Approximately 12.7 hours of continuous field operation at ~75% rated power on a full tank (120 gal / 454.2 L).

Estimated 75% Load Fuel Burn~9.4 gal/hr (35.7 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
