Massey Ferguson 1655

The Massey Ferguson 1655 is a tractor produced by Massey Ferguson Lawn Tractors. It is equipped with a 709 cc 43.3 ci engine. The rated power output is 16 hp 11.9 kW. Transmission: Sundstrand Series 15 - HT90. Operating weight: 860 to 950 pounds.

Overview

	1976 - 1979 Garden tractorSnapper built
1976 - 1979
Garden tractor
Snapper built

1976 - 1979
Garden tractor
Snapper built

Production
Distributor	Massey Ferguson
Manufacturer	Snapper
Garden tractor
Built in Fort Worth, Texas, USA

Massey Ferguson 1655 Engine
16HP Onan 709cc 2-cyl gasoline
Fuel tank	3.5 gal 13.2 L
Engine details ...

Massey Ferguson 1655 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Disc brakes
Open operator station.

Tractor hitch
Rear Type	0 OptOptional
Rear lift (at ends)	650 lbs 294 kg

Power Take-off (PTO)
Rear PTO	independent OptOptional
Rear PTO Type	2000
Mid PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	52 inches 132 cm
Weight	860 to 950 pounds
Front tire	18x8.50-8
Rear tire	26x12.00-12
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
The MF 1655 & 1855 are new published in 1977, by Massey Ferguson
Operator's Manual 1655 and 1855 (1448 382 M2) published in 1977
Lawn and Garden Tractors published in 1977, by Massey Ferguson

Engine

	1976 - 1979 Garden tractorSnapper built
1976 - 1979
Garden tractor
Snapper built

1976 - 1979
Garden tractor
Snapper built

Engine Detail — 709 cc / 43.3 ci Gasoline

Manufacturer	Onan B43M
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled horizontal-shaft opposed-twin
Displacement	709 cc 43.3 ci
Bore/Stroke	3.25x2.62 inches 83 x 67 mm
Power (gross)	16 hp 11.9 kW
Compression	6.2:1
Idle RPM	1800-3650
Starter	electric
Starter volts	12
Sparkplug gap	0.025 inches 0.635 mm
Point gap	0.025 inches 0.635 mm
Intake valve clearance	0.005 inches (cold) 0.127 mm
Exhaust valve clearance	0.013 inches (cold) 0.330 mm

Transmission

	1976 - 1979 Garden tractorSnapper built
1976 - 1979
Garden tractor
Snapper built

1976 - 1979
Garden tractor
Snapper built

Transmission — Sundstrand Series 15 - HT90

Transmission	Sundstrand Series 15 - HT90
Type	belt-driven hydrostatic
Gears	infinite forward and reverse (2-range)
Oil capacity	5 qts 4.7 L

Dimensions

	1976 - 1979 Garden tractorSnapper built
1976 - 1979
Garden tractor
Snapper built

1976 - 1979
Garden tractor
Snapper built

Massey Ferguson 1655 Tires
Lawn/turf front	18x8.50-8
Lawn/turf rear	26x12.00-12

Dimensions
Wheelbase	52 inches 132 cm
Length	78 inches 198 cm
Width	45.5 inches 115 cm
Height (steering wheel)	48 inches 121 cm
1655 Weight	860 lbs 390 kg
1655A Weight	950 lbs 430 kg
Ground clearance	16 inches (at steps) 40 cm
Clearance (rear axle)	8 inches 20 cm
Clearance (drawbar)	8.25 inches 20 cm
Front tread	32 inches 81 cm
Rear tread	33.5 inches 85 cm

Attachments

	1976 - 1979 Garden tractorSnapper built
1976 - 1979
Garden tractor
Snapper built

1976 - 1979
Garden tractor
Snapper built

Attachment overview
48" mid-mount mower deck
54" mid-mount mower deck
Snowblower
Blade
The Massey 1655 was compatible with the 4250 and 4850 tillers.

Photos

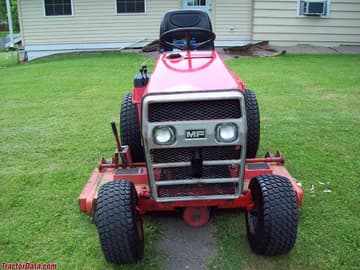

Massey Ferguson 1655

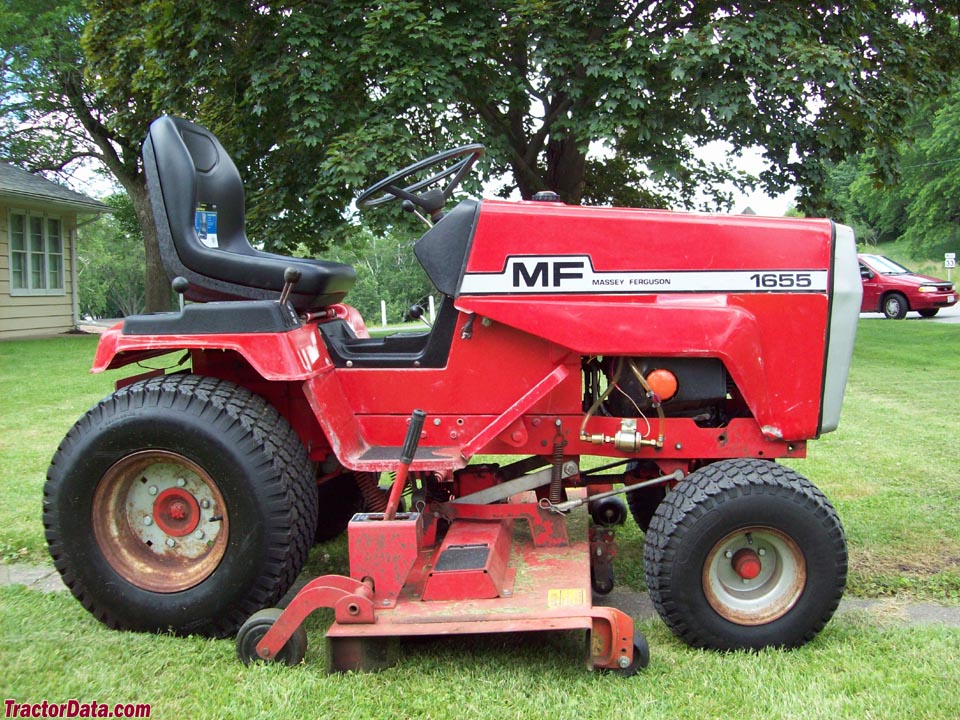

Massey Ferguson 1655

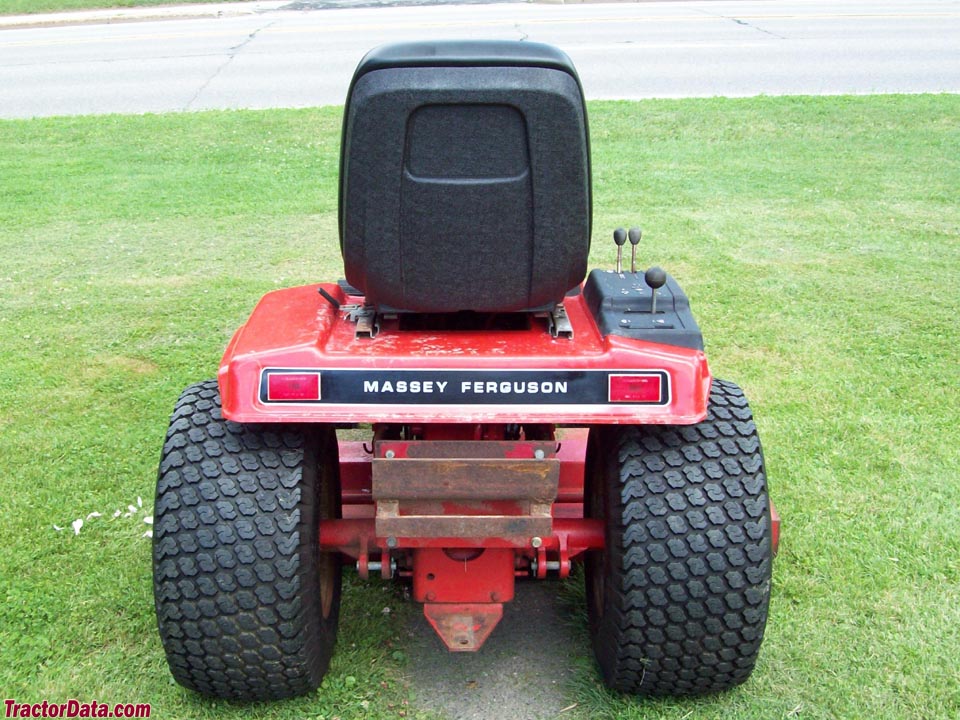

Massey Ferguson 1655

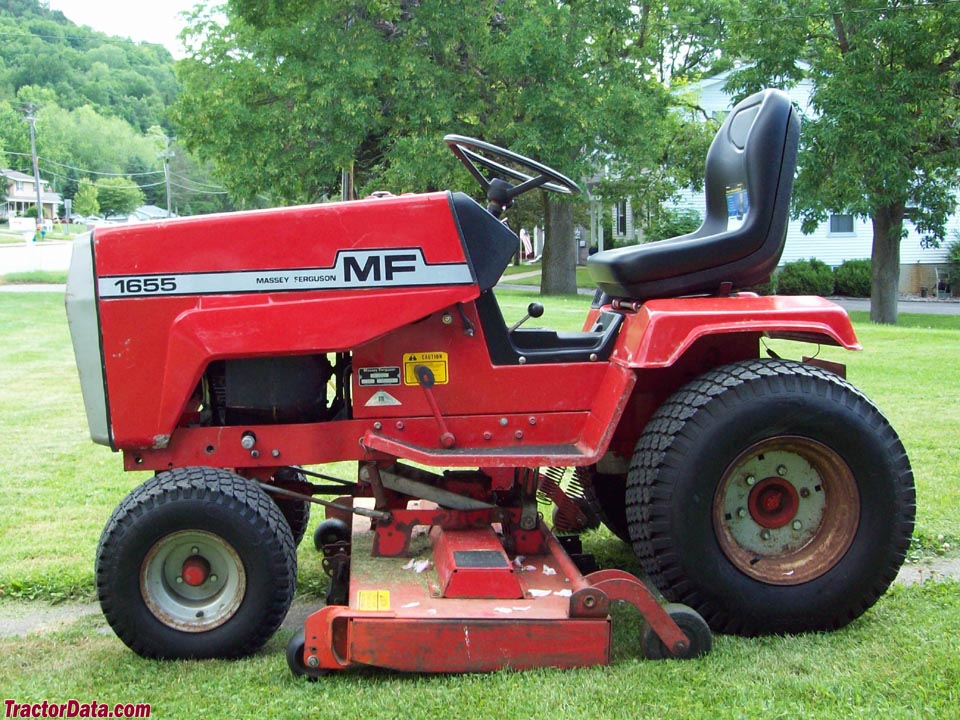

Massey Ferguson 1655

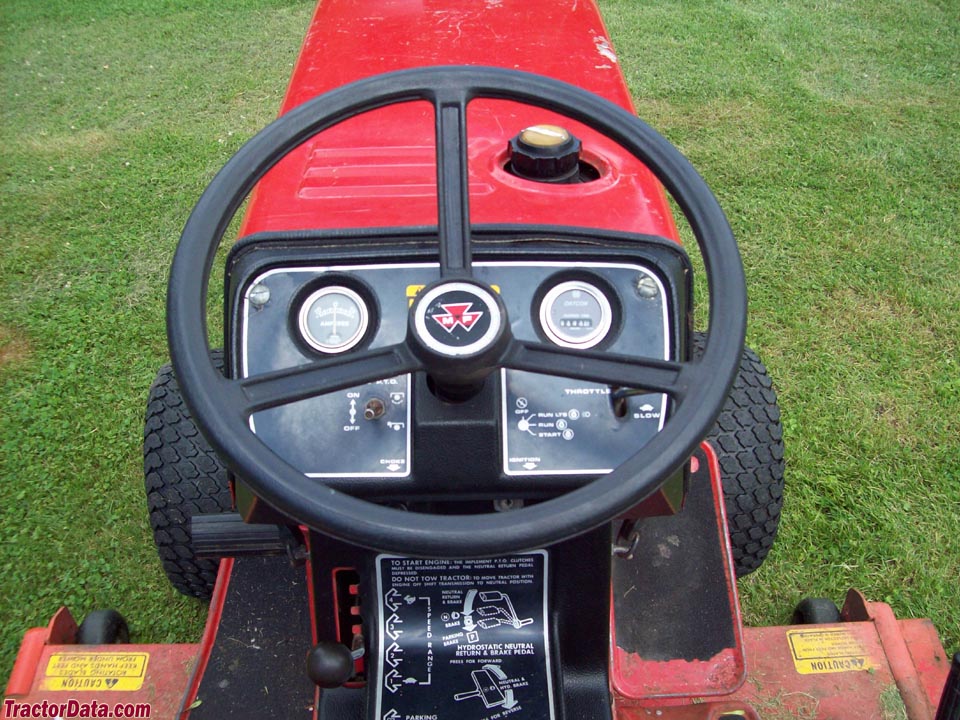

Massey Ferguson 1655 operator station and controls.
