Massey Ferguson 2516H
The Massey Ferguson 2516H is a tractor produced by Massey Ferguson Lawn Tractors. It is equipped with a 457 cc 27.9 ci engine. The rated power output is 16 hp 11.9 kW. Transmission: Tuff Torq K56. Operating weight: 463 lbs (with mower deck) 210 kg.
Engine Power
16 hp
11.9 kW
Fuel & Capacities
2 gal
7.6 L
Transmission
Tuff Torq K56
Operating Weight
463 lbs (with mower deck)
210 kg
Massey Ferguson Lawn Tractors Massey Ferguson 2516H Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1996 - 2001
2500 SeriesLawn tractorSimplicity built |
|---|---|
1996 - 2001 | |
2500 Series | |
Lawn tractor | |
Simplicity built | |
1996 - 2001 | |
|---|---|
2500 Series | |
Lawn tractor | |
Simplicity built |
Production | |
|---|---|
Distributor | Massey Ferguson |
Manufacturer | Simplicity |
Lawn tractor | |
Built in Port Washington, Wisconsin, USA | |
Massey Ferguson 2516H Engine | |
|---|---|
16HP Kohler 457cc 1-cyl gasoline | |
Fuel tank | 2 gal
7.6 L |
Engine details ...  | |
Massey Ferguson 2516H Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. Vinyl snow cab optional. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 50 inches
127 cm |
Weight | 463 lbs
210 kg |
Front tire | 15x6.0-6 |
Rear tire | 20x8.0-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Operator's Manual 2500 Series (1720116) published in 2001 | |
Tractors and Riding Mowers published in 1996, by Massey Ferguson | |
Lawn & Garden Equipment published in 1997, by Massey Ferguson | |
Lawn & Garden Equipment published in 1998, by Massey Ferguson | |
Lawn & Garden Equipment published in 1999, by Massey Ferguson | |
Lawn & Garden Equipment published in 2000, by Massey Ferguson* | |
Lawn & Garden Equipment published in 2002, by Massey Ferguson | |
*Publication contains known errors. |
Engine
| 1996 - 2001
2500 SeriesLawn tractorSimplicity built |
|---|---|
1996 - 2001 | |
2500 Series | |
Lawn tractor | |
Simplicity built | |
1996 - 2001 | |
|---|---|
2500 Series | |
Lawn tractor | |
Simplicity built |
Engine Detail — 457 cc / 27.9 ci Gasoline
Manufacturer | Kohler CV460 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 457 cc
27.9 ci |
Bore/Stroke | 3.43x3.03 inches
87 x 77 mm |
Power (gross) | 16 hp
11.9 kW |
Rated RPM | 3400 |
Starter | electric |
Starter volts | 12 |
Transmission
| 1996 - 2001
2500 SeriesLawn tractorSimplicity built |
|---|---|
1996 - 2001 | |
2500 Series | |
Lawn tractor | |
Simplicity built | |
1996 - 2001 | |
|---|---|
2500 Series | |
Lawn tractor | |
Simplicity built |
Transmission — Tuff Torq K56
Transmission | Tuff Torq K56 |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
| 1996 - 2001
2500 SeriesLawn tractorSimplicity built |
|---|---|
1996 - 2001 | |
2500 Series | |
Lawn tractor | |
Simplicity built | |
1996 - 2001 | |
|---|---|
2500 Series | |
Lawn tractor | |
Simplicity built |
Massey Ferguson 2516H Tires | |
|---|---|
Lawn/turf front | 15x6.0-6 |
Lawn/turf rear | 20x8.0-8 |
Dimensions | |
|---|---|
Wheelbase | 50 inches
127 cm |
Length | 68 inches
172 cm |
Width | 36 inches
91 cm |
Height (steering wheel) | 41 inches
104 cm |
Weight | 463 lbs (with mower deck)
210 kg |
Keyed shaft rear axle | |
Attachments
| 1996 - 2001
2500 SeriesLawn tractorSimplicity built |
|---|---|
1996 - 2001 | |
2500 Series | |
Lawn tractor | |
Simplicity built | |
1996 - 2001 | |
|---|---|
2500 Series | |
Lawn tractor | |
Simplicity built |
Attachment overview | |
|---|---|
44" mid-mount mower deck | |
Snowblower | |
Blade | |
The 42-inch front blade was intended for snow only. |
44" Mower deck | |
|---|---|
Type | mid-mount Massey Ferguson |
3-blade with manual lift | |
Cutting width | 44 inches
111 cm |
Overall width | 56 inches
142 cm |
Cut height | 1.5 to 3.9 inch
3 to 9 cm |
Photos

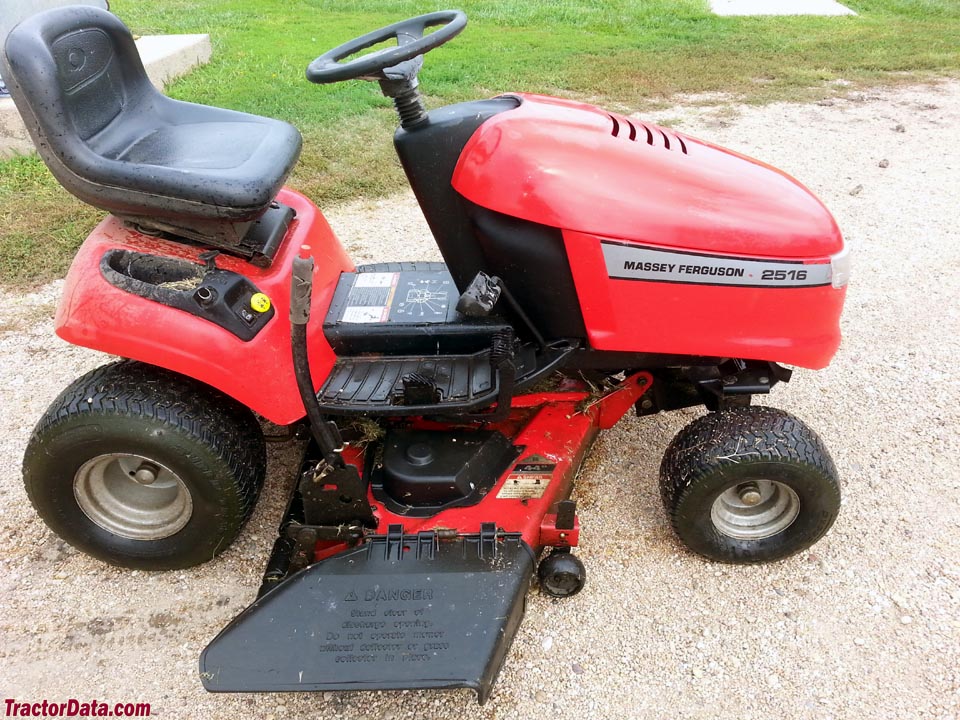

Massey Ferguson 2516H
