Massey Ferguson 2716H

The Massey Ferguson 2716H is a tractor produced by Massey Ferguson Lawn Tractors. It is equipped with a 480 cc 29.3 ci engine. The listed engine power is Gasoline (gross): 16 hp / 11.9 kW. Transmission: Tuff Torq K66. Operating weight: 586 lbs*Weight of tractor alone. 265 kg.

Engine Power

Gasoline (gross): 16 hp / 11.9 kW

Fuel & Capacities

4 gal 15.1 L

Transmission

Tuff Torq K66

Operating Weight

586 lbs*Weight of tractor alone. 265 kg

Overview

	2002 - 2004 2700 SeriesGarden tractorSimplicity built 2700 Series Garden tractor Simplicity built

Series map: 2716H2718H16.0hp18.0hp

Note: the Massey Ferguson model 2716H is the same as the Simplicity Conquest 16H. The following data is from the Conquest 16H listing.

Production
Distributor	Massey Ferguson
Manufacturer	Simplicity
Garden tractor
Original price was $4,399 in 2003

Variants
Conquest 16H	similar Simplicity model
1716H	similar AGCO model

Massey Ferguson 2716H Engine
16HP Briggs & Stratton 480cc 2-cyl gasoline
Fuel tank	4 gal 15.1 L
Engine details ...

Massey Ferguson 2716H Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Tractor hitch
Type	sleeve hitch OptOptional

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	53 inches 134 cm
Weight	586 lbs 265 kg
Front tire	16x6.5-8
Rear tire	23x10.5-12
Full dimensions and tires ...

Electrical
Charging amps	16
Battery CCA	340
Battery volts	12

References

Lawn & Garden Equipment published in 2002, by Massey Ferguson

Engine

Series map: 2716H2718H16.0hp18.0hp

Note: the Massey Ferguson model 2716H is the same as the Simplicity Conquest 16H. The following data is from the Conquest 16H listing.

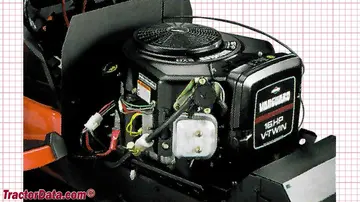

Engine Detail — 480 cc / 29.3 ci Gasoline

Manufacturer	Briggs & Stratton Vanguard
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
Displacement	480 cc 29.3 ci
Bore/Stroke	2.68x2.60 inches 68 x 66 mm
Power (gross)	16 hp 11.9 kW
Air cleaner	dual dry element
Starter	electric
Starter volts	12
Oil capacity	1.75 qts 1.7 L

Massey Ferguson 2716H Engine

Transmission

Series map: 2716H2718H16.0hp18.0hp

Note: the Massey Ferguson model 2716H is the same as the Simplicity Conquest 16H. The following data is from the Conquest 16H listing.

Transmission — Tuff Torq K66

Transmission	Tuff Torq K66
Type	belt-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	2.6 qts 2.5 L

Dimensions

Series map: 2716H2718H16.0hp18.0hp

Note: the Massey Ferguson model 2716H is the same as the Simplicity Conquest 16H. The following data is from the Conquest 16H listing.

Massey Ferguson 2716H Tires
Lawn/turf front	16x6.5-8
Lawn/turf rear	23x10.5-12

Dimensions
Wheelbase	53 inches 134 cm
Length	75 inches 190 cm
Width	39 inches 99 cm
Height	47 inches 119 cm
Weight	586 lbs*Weight of tractor alone. 265 kg
Max rear axle	697 lbs 316 kg
Front axle	Cast-iron

Attachments

Series map: 2716H2718H16.0hp18.0hp

Note: the Massey Ferguson model 2716H is the same as the Simplicity Conquest 16H. The following data is from the Conquest 16H listing.

Attachment overview
44" mid-mount mower deck
50" mid-mount mower deck
54" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

Massey Ferguson 2716H tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Massey Ferguson Lawn Tractors Massey Ferguson 2716H based on its 16 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	1 to 2 Bottom (12")1 - 2 铧 (30 cm)	Light Duty	Ideal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing	4 ft (48 in)1.2 m	Light Duty	Pasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep	42 to 48 in105 - 120 cm	Light Duty	Covers compact tractor tire width.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson Lawn Tractors Massey Ferguson 2716H.

Estimated Continuous Field Runtime: 4.8 hrs

Approximately 4.8 hours of continuous field operation at ~75% rated power on a full tank (4 gal / 15.1 L).

Estimated 75% Load Fuel Burn~0.8 gal/hr (3.1 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

Massey Ferguson Lawn Tractors Massey Ferguson 2716H Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Massey Ferguson Lawn Tractors Massey Ferguson 2716H.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)16 hp

Kilowatts (kW)11.9 kW

Metric Horsepower (PS / CV)16.2 PS
