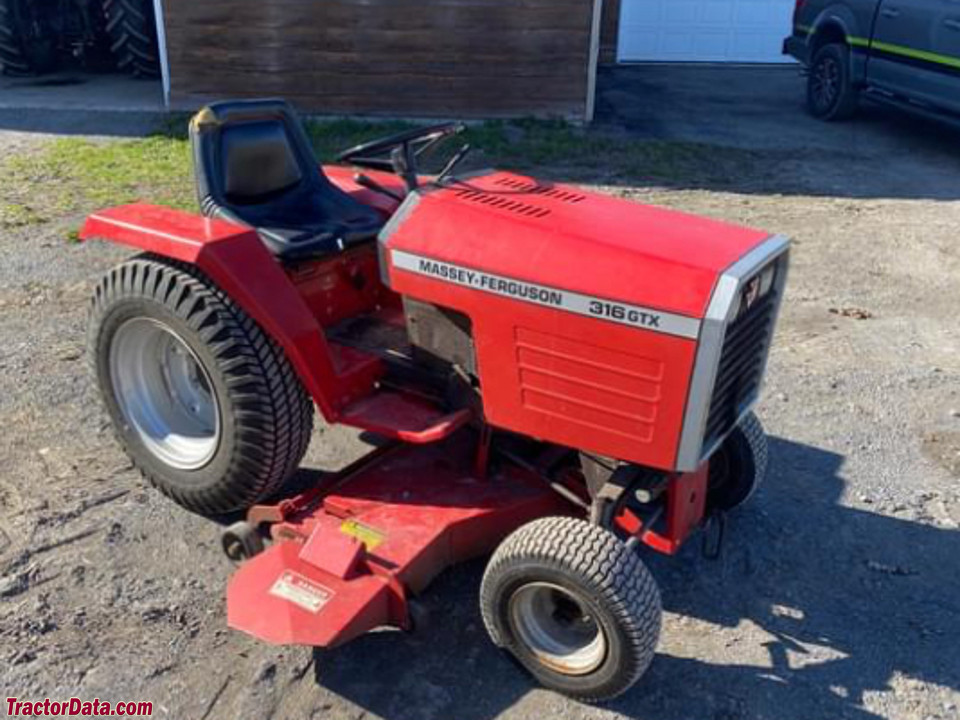

Massey Ferguson 316GTX

The Massey Ferguson 316GTX is a tractor produced by Massey Ferguson Lawn Tractors. It is equipped with a 691 cc 42.18 ci engine. The listed engine power is Gasoline (gross): 16 hp / 11.9 kW. Transmission: Hy-drive. Operating weight: 730 lbs 331 kg.

Engine Power

Gasoline (gross): 16 hp / 11.9 kW

Fuel & Capacities

3 gal 11.4 L

Transmission

Hy-drive

Operating Weight

730 lbs 331 kg

Overview

	1991 - 1994 300 GTX SeriesGarden tractorIngersoll built 300 GTX Series Garden tractor Ingersoll built

Production
Distributor	Massey Ferguson
Manufacturer	Ingersoll
Garden tractor

Massey Ferguson 316GTX Engine
16HP Kohler 691cc 2-cyl gasoline
Fuel tank	3 gal 11.4 L
Engine details ...

Massey Ferguson 316GTX Transmission
hydraulic drive
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Band brakes
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	48 inches 121 cm
Weight	730 lbs 331 kg
Front tire	16x6.50-8
Rear tire	8.00-16
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	15
Battery volts	12

References

Lawn and Garden Tractors published in 1991, by Massey Ferguson

Engine

Engine Detail — 691 cc / 42.18 ci Gasoline

Manufacturer	Kohler Magnum M16QS
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled horizontal-shaft
Displacement	691 cc 42.18 ci
Bore/Stroke	3.125x2.75 inches 79 x 70 mm
Power (gross)	16 hp 11.9 kW
Starter	electric
Starter volts	12
Oil capacity	2 qts 1.9 L

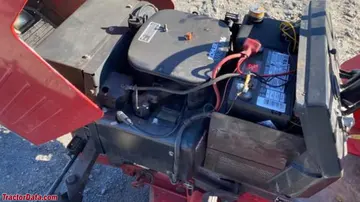

Massey Ferguson 316GTX Engine

Image courtesy of Zachary Legros

Transmission

Transmission — Hy-drive

Transmission	Hy-drive
Type	hydraulic drive
Gears	infinite forward and reverse

Dimensions

Massey Ferguson 316GTX Tires
Lawn/turf front	16x6.50-8
Lawn/turf rear	8.00-16

Dimensions
Wheelbase	48 inches 121 cm
Length	72 inches 182 cm
Width	40.75 inches 103 cm
Height (steering wheel)	44 inches 111 cm
Weight	730 lbs 331 kg

Attachments

Attachment overview
44" mid-mount mower deck
48" mid-mount mower deck
60" mid-mount mower deck
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

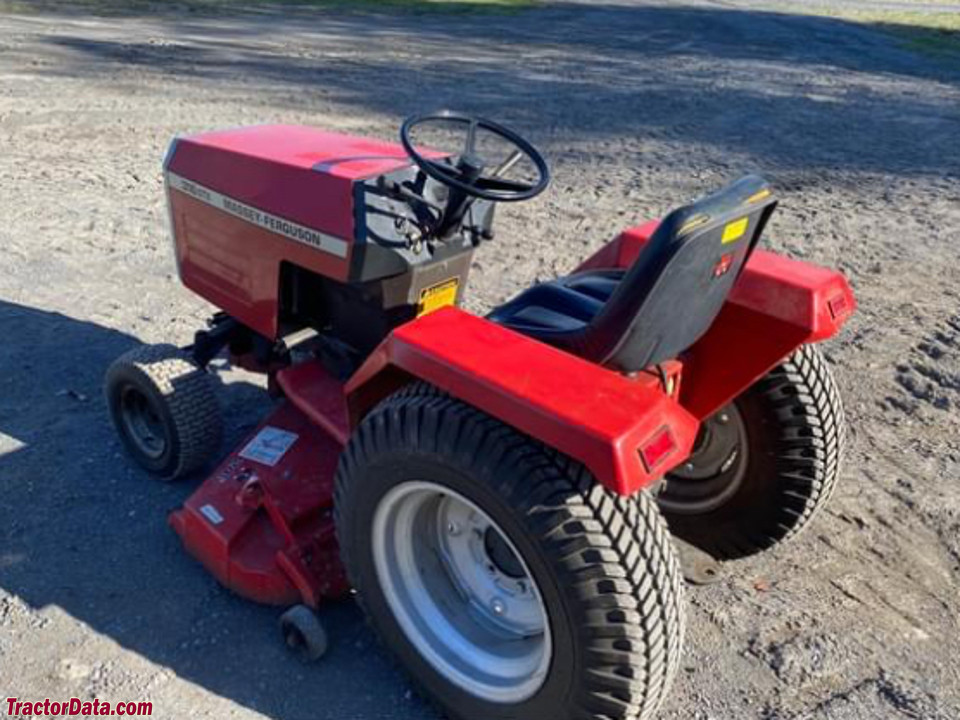

Massey Ferguson 316GTX

Recommended Implements & Sizing Guide

Engineering recommendations for Massey Ferguson Lawn Tractors Massey Ferguson 316GTX based on its 16 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	1 to 2 Bottom (12")1 - 2 铧 (30 cm)	Light Duty	Ideal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing	4 ft (48 in)1.2 m	Light Duty	Pasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep	42 to 48 in105 - 120 cm	Light Duty	Covers compact tractor tire width.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson Lawn Tractors Massey Ferguson 316GTX.

Estimated Continuous Field Runtime: 3.6 hrs

Approximately 3.6 hours of continuous field operation at ~75% rated power on a full tank (3 gal / 11.4 L).

Estimated 75% Load Fuel Burn~0.8 gal/hr (3.1 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

Massey Ferguson Lawn Tractors Massey Ferguson 316GTX Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Massey Ferguson Lawn Tractors Massey Ferguson 316GTX.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)16 hp

Kilowatts (kW)11.9 kW

Metric Horsepower (PS / CV)16.2 PS
