Minneapolis-Moline Town & Country 107

The Minneapolis-Moline Town & Country 107 is a tractor produced by Minneapolis Moline Lawn Tractors. It is equipped with a 245 cc 15 ci engine. The listed engine power is Gasoline (listed): 7 hp / 5.2 kW. Transmission: 3 forward and 1 reverse. Operating weight: 310 to 340 pounds.

Overview

	1968 Garden tractorJacobsen built Garden tractor Jacobsen built

Production
Distributor	Minneapolis-Moline
Manufacturer	Jacobsen
Garden tractor
Built in Brookhaven, Mississippi, USA

Variants
107M	recoil start
107E	electric start

Minneapolis-Moline 107 Engine
7HP Tecumseh 245cc 1-cyl gasoline
Fuel tank	1 gal 3.8 L
Engine details ...

Minneapolis-Moline 107 Transmission
3-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Disc brakes
Open operator station.

Dimensions & Tires
Weight	310 to 340 pounds
Front tire	13x4
Rear tire	18x8.50-8
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Town and Country New 7HP Tractor published in 1968, by Minneapolis-Moline

Engine

Engine Detail — 245 cc / 15 ci Gasoline

Manufacturer	Tecumseh V70
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	245 cc 15 ci
Bore/Stroke	2.75x2.531 inches 70 x 64 mm
Power	7 hp 5.2 kW
Rated RPM	3600
Starter	manual recoil
	electric OptOptional
Starter volts	12
Oil capacity	0.75 qts 0.7 L

Transmission

Transmission — 3 forward and 1 reverse gear

Type	gear
Gears	3 forward and 1 reverse
Clutch	idler pulley

Dimensions

Minneapolis-Moline 107 Tires
107M Lawn/turf front	13x4
107E Lawn/turf front	13x5
Lawn/turf rear	18x8.50-8

Dimensions
Length	57.75 inches 146 cm
Width	31.75 inches 80 cm
Height (steering wheel)	37 inches 93 cm
Height (hood)	31.75 inches 80 cm
107M Weight	310 lbs 140 kg
107E Weight	340 lbs 154 kg
Clearance (front axle)	7 inches 17 cm
Clearance (rear axle)	5.5 inches 13 cm

Attachments

Attachment overview
34" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

34" Mower deck
Type	mid-mount Minneapolis-Moline
	2-blade
Cutting width	34 inches 86 cm

Photos

Minneapolis-Moline Town & Country 107

Minneapolis-Moline Town & Country 107

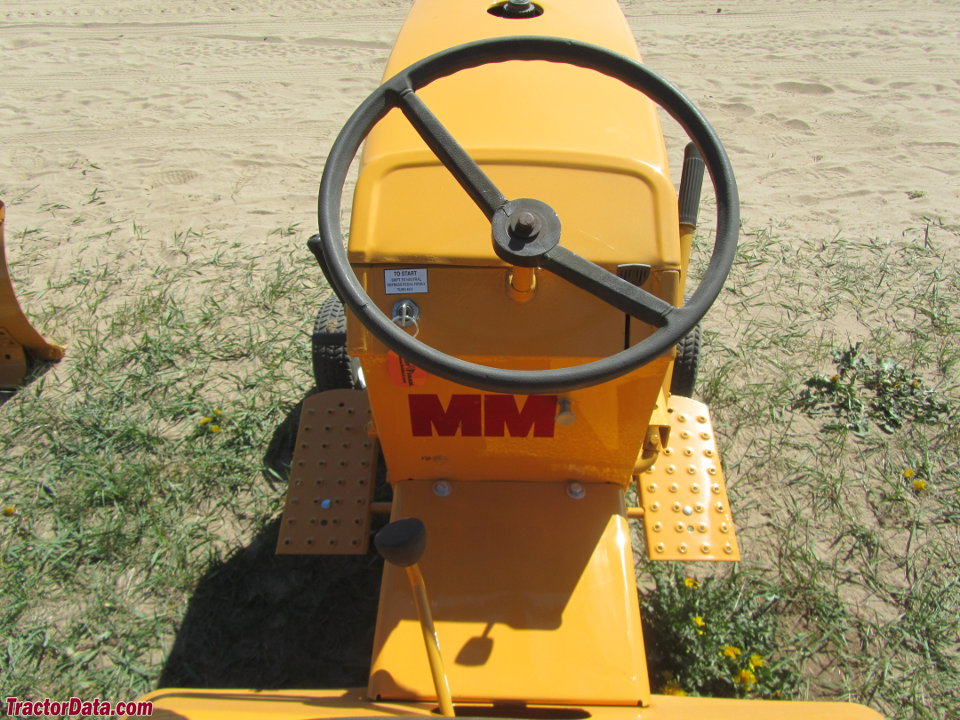

Minneapolis-Moline 107 operator station and controls.
