Minneapolis-Moline Town & Country 114
The Minneapolis-Moline Town & Country 114 is a tractor produced by Minneapolis Moline Lawn Tractors. It is equipped with a 512 cc 31.27 ci engine. The listed engine power is Gasoline (gross): 14 hp / 10.4 kW. Transmission: infinite forward and reverse.
Overview
 | 1969 - 1971
Garden tractorJacobsen built
Garden tractor
Jacobsen built |
|---|
Production | |
|---|---|
Distributor | Minneapolis-Moline |
Manufacturer | Jacobsen |
Garden tractor | |
Built in Racine, Wisconsin, USA | |
Minneapolis-Moline 114 Engine | |
|---|---|
14HP Kohler 512cc 1-cyl gasoline | |
Fuel tank | 2 gal
7.6 L |
Engine details ...  | |
Minneapolis-Moline 114 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Differential lock | limited-slip rear differential |
Steering | manual |
Mechanical band brakes | |
Open operator station. | |
Tractor hitch | |
|---|---|
Type | sleeve hitch (optional) |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 43 inches
109 cm |
Front tire | 5.50x8 |
Rear tire | 23x8.50x12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Product News: MM Model 114 Town & Country Tractor published in 1969, by Minneapolis-Moline |
Engine
Engine Detail — 512 cc / 31.27 ci Gasoline
Manufacturer | Kohler K321 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled |
Displacement | 512 cc
31.27 ci |
Bore/Stroke | 3.50x3.25 inches
89 x 83 mm |
Power (gross) | 14 hp
10.4 kW |
Rated RPM | 3200 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — infinite forward and reverse hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse |
 | |

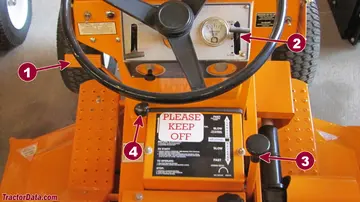

114 Transmission Controls | |
|---|---|
 | |
1 | Brake |
2 | Throttle |
3 | Forward/reverse |
4 | Parking brake |
Dimensions
Minneapolis-Moline 114 Tires | |
|---|---|
Lawn/turf front | 5.50x8 |
Lawn/turf rear | 23x8.50x12 |
Dimensions | |
|---|---|
Wheelbase | 43 inches
109 cm |
Length | 61 inches
154 cm |
Width | 34.25 inches
86 cm |
Height (steering wheel) | 39 inches
99 cm |
Clearance (front axle) | 8.75 inches
22 cm |
Clearance (rear axle) | 6.25 inches
15 cm |
Attachments
Attachment overview | |
|---|---|
36" mid-mount mower deck | |
42" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
Photos

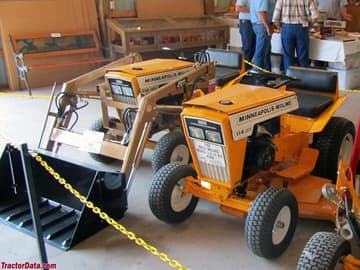

Minneapolis-Moline 114 tractors with loader and mower.

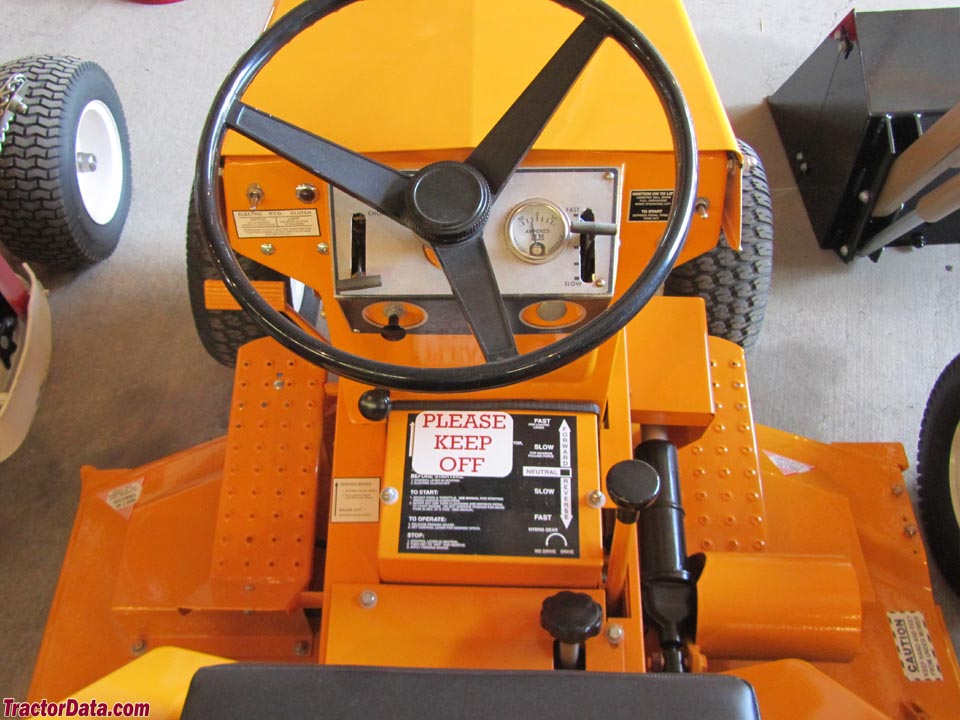

Minneapolis-Moline 114 dash and controls.

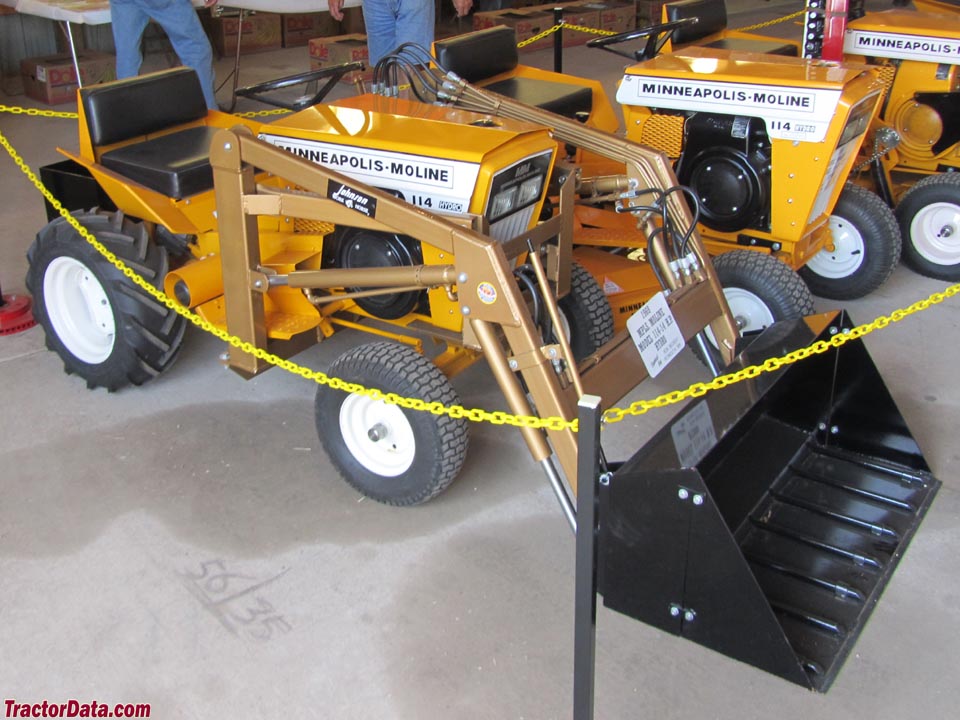

Minneapolis-Moline 114 with Johnson Work Horse loader.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Minneapolis Moline Lawn Tractors Minneapolis-Moline Town & Country 114.
Estimated Continuous Field Runtime: 2.7 hrs
Approximately 2.7 hours of continuous field operation at ~75% rated power on a full tank (2 gal / 7.6 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
Minneapolis Moline Lawn Tractors Minneapolis-Moline Town & Country 114 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Minneapolis Moline Lawn Tractors Minneapolis-Moline Town & Country 114.
Converted Equivalents:
