Minneapolis-Moline Town & Country 110

The Minneapolis-Moline Town & Country 110 is a tractor produced by Minneapolis Moline Lawn Tractors. It is equipped with a 390 cc 23.85 ci engine. The listed engine power is Gasoline (listed): 10 hp / 7.5 kW. Transmission: infinite forward and reverse.

Overview

	1964 - 1971 Garden tractorJacobsen built Garden tractor Jacobsen built

Production
Distributor	Minneapolis-Moline
Manufacturer	Jacobsen
Garden tractor
Built in Racine, Wisconsin, USA

Minneapolis-Moline 110 Engine
10HP Kohler 390cc 1-cyl gasoline
Fuel tank	1.25 gal 4.7 L
Engine details ...

Mechanical
Two-wheel drive
Steering	manual
Band brakes
Open operator station.

Dimensions & Tires
Wheelbase	42 inches 106 cm
Front tire	4.80/4.00-8
Rear tire	6.00-12
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Town and Country Tractors published in 1963, by Minneapolis-Moline
8 or 10 hp Tractors published in 1964, by Minneapolis-Moline

Engine

Engine Detail — 390 cc / 23.85 ci Gasoline

Manufacturer	Kohler K241S
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled
Displacement	390 cc 23.85 ci
Bore/Stroke	3.2515x2.875 inches 83 x 73 mm
Power	10 hp 7.5 kW
Air cleaner	dry
Rated RPM	3600
Starter volts	12
Oil capacity	2.5 qts 2.4 L

Transmission

Transmission options
3-speed gear
hydrostatic

Transmission — 3 forward and 1 reverse belt-driven gear

Type	belt-driven gear
Gears	3 forward and 1 reverse
Clutch	idler pulley

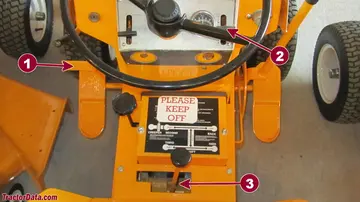

110 Transmission Controls
1	Clutch/brake
2	Throttle
3	Gear shift

Transmission — infinite forward and reverse belt-driven hydrostatic

Type	belt-driven hydrostatic
Gears	infinite forward and reverse

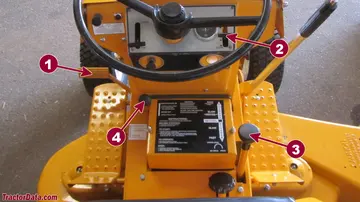

110 Transmission Controls
1	Brake
2	Throttle
3	Forward/reverse
4	Parking brake

Dimensions

Minneapolis-Moline 110 Tires
Lawn/turf front	4.80/4.00-8
Lawn/turf rear	6.00-12

Dimensions
Wheelbase	42 inches 106 cm
Length	61 inches 154 cm
Width	33 inches 83 cm
Ground clearance	11.75 inches*Clearance at frame 29 cm
Clearance (front axle)	8.75 inches 22 cm
Clearance (rear axle)	7 inches 17 cm

Minneapolis-Moline 110 Height
	32 inches (Seat) 81 cm
Steering wheel	38 inches 96 cm
Hood	34.5 inches 87 cm

Attachments

Attachment overview
36" mid-mount mower deck
42" mid-mount mower deck
48" mid-mount mower deck
Snowblower
Blade
Front-end loader
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

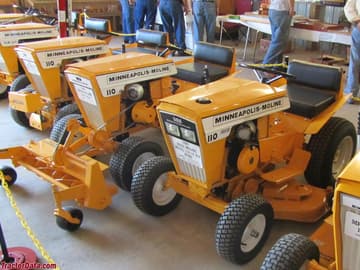

Display of three Minnapolis-Moline Town & County 110 garden tractors, with attachments.

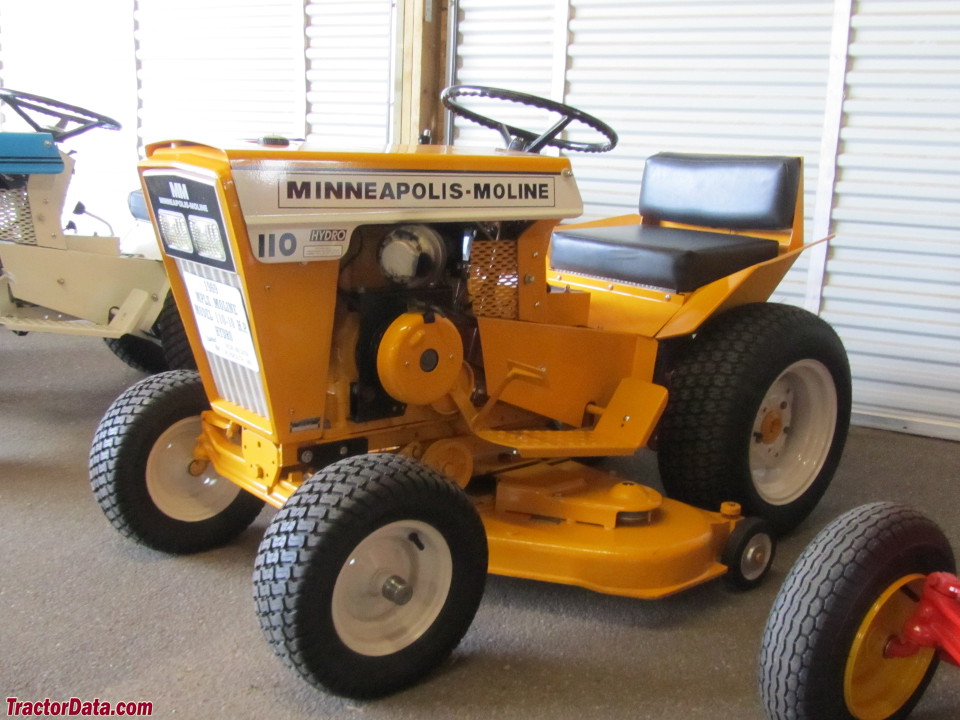

Minneapolis-Moline Town & Country 110

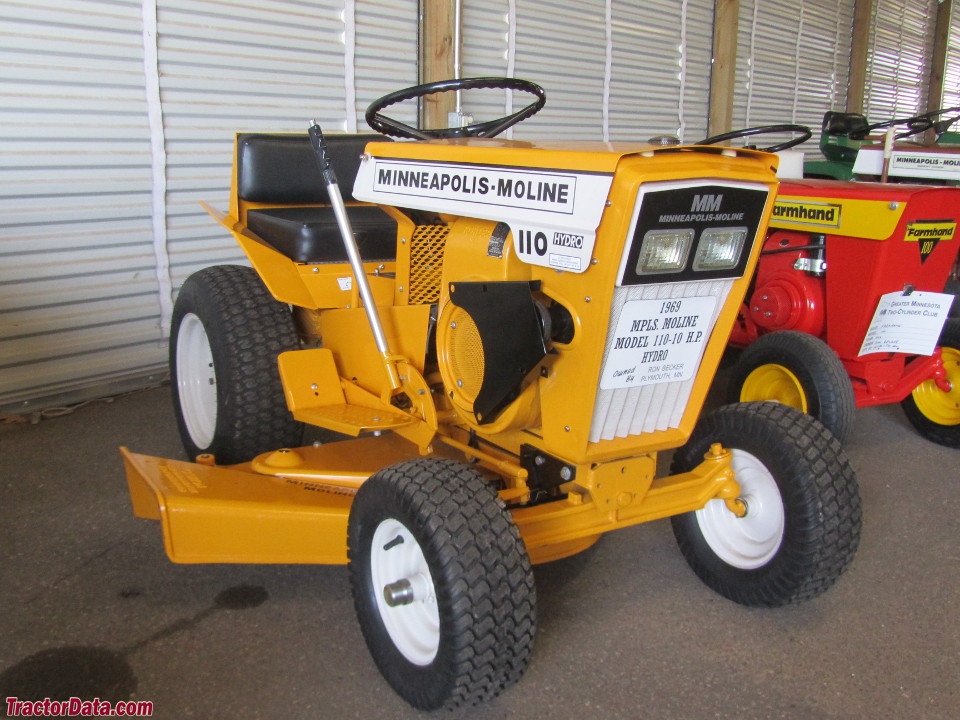

Minneapolis-Moline Town & Country 110
