Minneapolis-Moline MoCraft 100
The Minneapolis-Moline MoCraft 100 is a tractor produced by Minneapolis Moline Lawn Tractors. The listed engine power is Gasoline (gross): 7 hp / 5.2 kW. Transmission: 3 forward and 1 reverse.
Engine Power
Gasoline (gross): 7 hp / 5.2 kW
Fuel & Capacities
Gasoline
Transmission
3 forward and 1 reverse
Overview
 | 1962 - 1963
Garden tractorJacobsen built
Garden tractor
Jacobsen built |
|---|
Production | |
|---|---|
Distributor | Minneapolis-Moline |
Manufacturer | Jacobsen |
Garden tractor | |
Built in Racine, Wisconsin, USA | |
Minneapolis-Moline MoCraft 100 Engine | |
|---|---|
7HP Kohler 1-cyl gasoline | |
Engine details ...  |
Minneapolis-Moline MoCraft 100 Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Band brakes | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Full dimensions and tires ...  |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Town and Country Tractor published in 1963, by Minneapolis-Moline |
Engine
Engine Detail — Gasoline
Manufacturer | Kohler |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled |
Power (gross) | 7 hp
5.2 kW |
Rated RPM | 3200 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — 3 forward and 1 reverse gear
Type | gear |
Gears | 3 forward and 1 reverse |
Dimensions
Minneapolis-Moline MoCraft 100 Tires |
|---|
Dimensions |
|---|
Attachments
Attachment overview | |
|---|---|
34" mid-mount mower deck | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
34" Mower deck | |
|---|---|
Type | mid-mount Minneapolis-Moline |
2-blade with manual lift | |
Cutting width | 34 inches
86 cm |
Photos

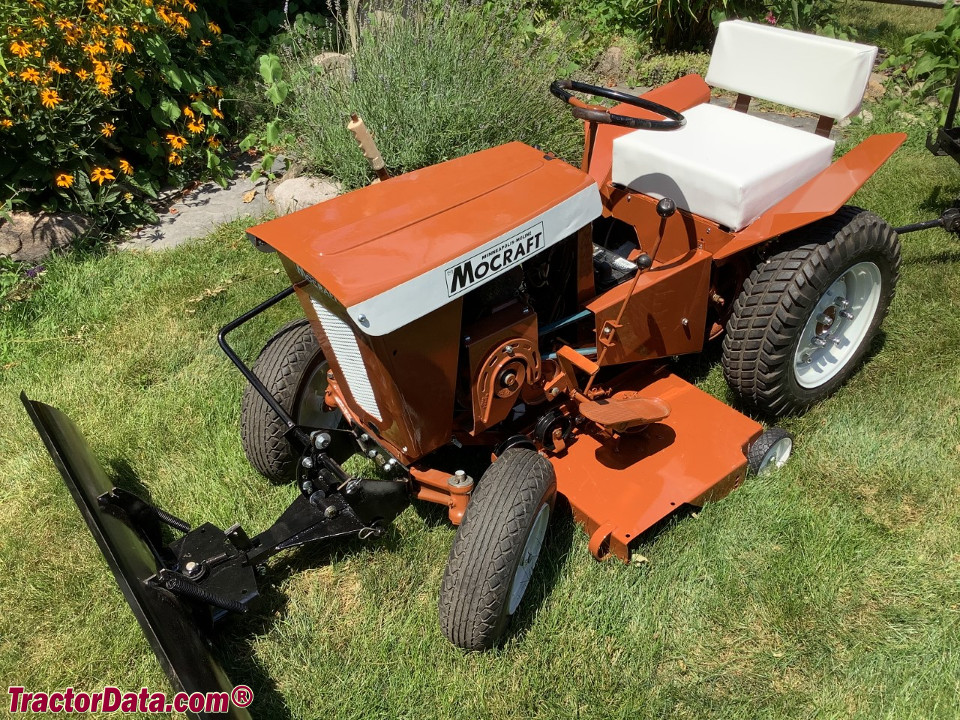

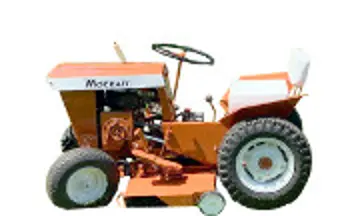

Minneapolis-Moline MoCraft 100
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Minneapolis Moline Lawn Tractors Minneapolis-Moline MoCraft 100.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Minneapolis Moline Lawn Tractors Minneapolis-Moline MoCraft 100 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Minneapolis Moline Lawn Tractors Minneapolis-Moline MoCraft 100.
Converted Equivalents:
Horsepower (HP)7 hp
Kilowatts (kW)5.2 kW
Metric Horsepower (PS / CV)7.1 PS
