Minneapolis-Moline Town & Country 108

The Minneapolis-Moline Town & Country 108 is a tractor produced by Minneapolis Moline Lawn Tractors. It is equipped with a 305 cc 18.63 ci engine. The listed engine power is Gasoline (gross): 8 hp / 6.0 kW. Transmission: 3 forward and 1 reverse.

Engine Power
Gasoline (gross): 8 hp / 6.0 kW
Fuel & Capacities
1.25 gal 4.7 L
Transmission
3 forward and 1 reverse

Overview

Minneapolis-Moline Town & Country 108 tractor photo
1964 - 1971 Garden tractorJacobsen built Garden tractor Jacobsen built
Production
Distributor
Minneapolis-Moline
Manufacturer
Jacobsen
Garden tractor
Built in Racine, Wisconsin, USA
Minneapolis-Moline 108 Engine
8HP Kohler 305cc 1-cyl gasoline
Fuel tank
1.25 gal 4.7 L
Engine details ...
Minneapolis-Moline 108 Transmission
3-speed gear
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Mechanical band brakes
Open operator station.
Dimensions & Tires
Wheelbase
42 inches 106 cm
Front tire
4.80/4.00-8
Rear tire
6.00-12
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
References
Town & Country 108 references literature
Town and Country Tractors published in 1963, by Minneapolis-Moline
8 or 10 hp Tractors published in 1964, by Minneapolis-Moline

Engine

Engine Detail — 305 cc / 18.63 ci Gasoline

Manufacturer
Kohler K181S
Fuel Type
Gasoline
Configuration
1-cylinder, air-cooled
Displacement
305 cc 18.63 ci
Bore/Stroke
2.938x2.75 inches 75 x 70 mm
Power (gross)
8 hp 6.0 kW
Air cleaner
dry
Rated RPM
3600
Starter volts
12
Oil capacity
1.25 qts 1.2 L

Transmission

Transmission — 3 forward and 1 reverse belt-driven gear

Type
belt-driven gear
Gears
3 forward and 1 reverse
Clutch
idler pulley
Town & Country 108 belt-driven gear speeds

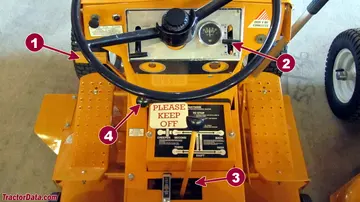

108 Transmission Controls
Minneapolis-Moline 108 transmission controls
1
Clutch/brake
2
Throttle
3
Gear shift
4
Parking brake

Dimensions

Minneapolis-Moline 108 Tires
Lawn/turf front
4.80/4.00-8
Lawn/turf rear
6.00-12
Dimensions
Wheelbase
42 inches 106 cm
Length
61 inches 154 cm
Width
33 inches 83 cm
Ground clearance
11.75 inches*Clearance at frame 29 cm
Clearance (front axle)
8.75 inches 22 cm
Clearance (rear axle)
7 inches 17 cm
Minneapolis-Moline 108 Height
32 inches (Seat backrest) 81 cm
Steering wheel
38 inches 96 cm
Hood
34.5 inches 87 cm

Attachments

Attachment overview
36" mid-mount mower deck
Snowblower
Blade
Front-end loader
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.
36" Mower deck
Type
mid-mount Minneapolis-Moline
Cutting width
36 inches 91 cm

Photos

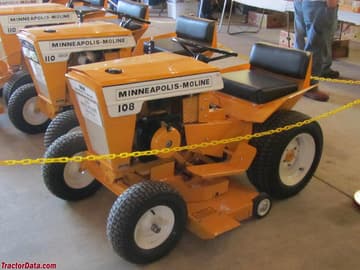

Minneapolis-Moline Town & Country 108.

Minneapolis-Moline Town & Country 108.

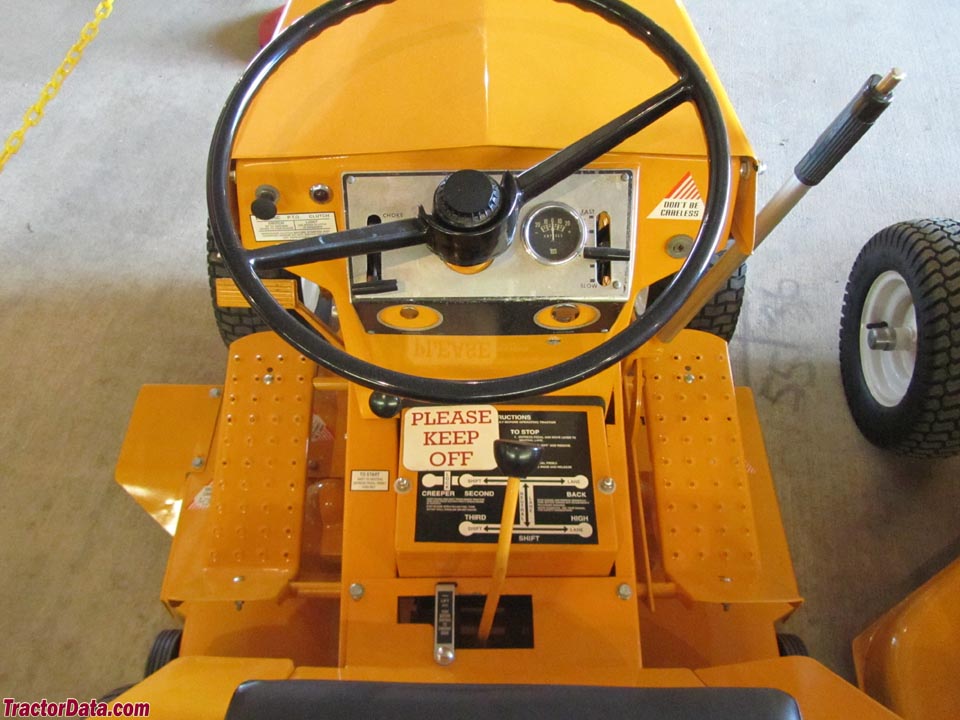

Minneapolis-Moline 108 dashboard and gear shift.

Minneapolis-Moline 108 dashboard and gear shift.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Minneapolis Moline Lawn Tractors Minneapolis-Moline Town & Country 108.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Minneapolis Moline Lawn Tractors Minneapolis-Moline Town & Country 108 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Minneapolis Moline Lawn Tractors Minneapolis-Moline Town & Country 108.

Converted Equivalents:

Horsepower (HP)8 hp
Kilowatts (kW)6 kW
Metric Horsepower (PS / CV)8.1 PS
