New Holland MZ17H

The New Holland MZ17H is a tractor produced by New Holland Lawn Tractors. It is equipped with a 490 cc 29.9 ci engine. The listed engine power is Gasoline (listed): 18 hp / 13.4 kW. Transmission: infinite forward and reverse. Operating weight: 641 lbs 290 kg.

Engine Power

Gasoline (listed): 18 hp / 13.4 kW

Fuel & Capacities

5 gal 18.9 L

Transmission

infinite forward and reverse

Operating Weight

641 lbs 290 kg

Overview

	2006 - 2007 MZ SeriesZero-turn mower MZ Series Zero-turn mower

Production
Manufacturer	New Holland
Zero-turn mower

New Holland MZ17H Engine
18HP Kohler 490cc 1-cyl gasoline
Fuel tank	5 gal 18.9 L
Engine details ...

New Holland MZ17H Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Power steering
Open operator station

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	52.1 inches 132 cm
Weight	641 lbs 290 kg
Front tire	10x4
Rear tire	18x7.5-8
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	15
Battery CCA	260
Battery volts	12

Engine

Engine Detail — 490 cc / 29.9 ci Gasoline

Manufacturer	Kohler CV492S
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	490 cc 29.9 ci
Bore/Stroke	3.60x3.06 inches 91 x 78 mm
Power	18 hp 13.4 kW
Air cleaner	dual dry element
Starter	electric
Starter volts	12

Transmission

Transmission — infinite forward and reverse hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse

Dimensions

New Holland MZ17H Tires
Lawn/turf front	10x4
Lawn/turf rear	18x7.5-8

Dimensions
Wheelbase	52.1 inches 132 cm
Length	77.5 inches 196 cm
Height	40 inches 101 cm
Weight	641 lbs 290 kg

Attachments

Attachment overview
44" mid-mount mower deck
Blade

44" Mower deck
Type	mid-mount New Holland
	3-blade
Cutting width	44 inches 111 cm
Overall width	60 inches 152 cm

Photos

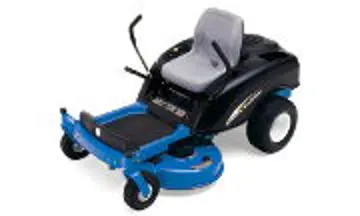

New Holland MZ17H tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for New Holland Lawn Tractors New Holland MZ17H based on its 18 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	1 to 2 Bottom (12")1 - 2 铧 (30 cm)	Light Duty	Ideal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing	4 ft (48 in)1.2 m	Light Duty	Pasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep	42 to 48 in105 - 120 cm	Light Duty	Covers compact tractor tire width.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for New Holland Lawn Tractors New Holland MZ17H.

Estimated Continuous Field Runtime: 5.3 hrs

Approximately 5.3 hours of continuous field operation at ~75% rated power on a full tank (5 gal / 18.9 L).

Estimated 75% Load Fuel Burn~0.9 gal/hr (3.5 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

New Holland Lawn Tractors New Holland MZ17H Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for New Holland Lawn Tractors New Holland MZ17H.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)18 hp

Kilowatts (kW)13.4 kW

Metric Horsepower (PS / CV)18.2 PS
