Page 12RG

The Page 12RG is a tractor produced by Page Lawn Tractors. It is equipped with a 291 cc 17.8 ci engine. The listed engine power is Gasoline (listed): 7 hp / 5.2 kW; Gasoline (listed): 7 hp / 5.2 kW; Gasoline (listed): 7 hp / 5.2 kW. Transmission: 3 forward and 1 reverse. Operating weight: 680 lbs 308 kg.

Overview

	1958 - 1963 Garden tractor

Production
Manufacturer	Page (a part of Pioneer Manufacturing)
Garden tractor
Built in Richfield, Wisconsin, USA

Page 12RG Transmission
3-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Final drives	spur gear
Manual steering
Open operator station.

Dimensions & Tires
Wheelbase	56 inches 142 cm
Weight	680 lbs 308 kg
Full dimensions and tires ...

References
Red Book 1960 published by Implement & Tractor
Page published in 1963, by Pioneer Manufacturing

Engine

Engine options
7HP Kohler 277cc 1-cyl gasoline
7HP Briggs & Stratton 304cc 1-cyl gasoline
7HP Wisconsin 291cc 1-cyl gasoline

Engine Detail — 277 cc / 16.94 ci Gasoline

Manufacturer	Kohler K161
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled horizontal-shaft
Displacement	277 cc 16.94 ci
Bore/Stroke	2.875x2.50 inches 73 x 64 mm
Power	7 hp 5.2 kW
Rated RPM	3600
Starter type	manual recoil
	electric OptOptional

Engine Detail — 304 cc / 18.56 ci Gasoline

Manufacturer	Briggs & Stratton 19
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled horizontal-shaft
Displacement	304 cc 18.56 ci
Bore/Stroke	3.00x2.625 inches 76 x 67 mm
Power	7 hp 5.2 kW
Starter type	manual recoil
	electric OptOptional

Engine Detail — 291 cc / 17.8 ci Gasoline

Manufacturer	Wisconsin BKN
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled horizontal-shaft
Displacement	291 cc 17.8 ci
Bore/Stroke	2.875x2.75 inches 73 x 70 mm
Power	7 hp 5.2 kW
Starter type	manual recoil
	electric OptOptional

Transmission

Transmission — 3 forward and 1 reverse shaft-driven gear

Type	shaft-driven gear
Gears	3 forward and 1 reverse
Clutch	152.4mm dry disc

Dimensions

Page 12RG Tires
Ag front	4x8
Ag rear	6x16

Dimensions
Wheelbase	56 inches 142 cm
Length	78 inches 198 cm
Width	38 inches 96 cm
Height	37 inches 93 cm
Weight	680 lbs 308 kg
Clearance (rear axle)	14 inches 35 cm
Rear tread	22 to 38 inches 55 to 96 cm

Attachments

Attachment overview
32" mid-mount mower deck
48" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

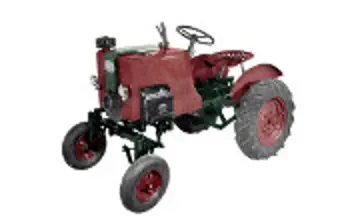

Page 12RG tractor photo
