Pasquali 991

The Pasquali 991 is a tractor produced by Pasquali. It is equipped with a 49.9 ci 0.8 L engine. The listed engine power is Diesel (net): 20.7 hp / 15.4 kW; Diesel (gross): 24 hp / 17.9 kW. Transmission: 9 forward and 3 reverse. Operating weight: 1764 lbs 800 kg.

Overview

	1970 - 1981 Utility tractor

Production
Manufacturer	Pasquali
Utility tractor
Built in Italy

Pasquali 991 Engine
Lombardini 0.8L 1-cyl diesel
Engine details ...

Pasquali 991 Transmission
9-speed gear
Transmission details ...

Pasquali 991 Power
Engine (gross)	24 hp 17.9 kW
Engine (net)	20.7 hp 15.4 kW

Mechanical
Four-wheel drive
Differential lock	mechanical rear
Steering	mechanical
	power OptOptional
Mechanical drum brakes
Open operator station.

Hydraulics
Type	open center
Pump flow	2.6 gpm 9.8 lpm

Tractor hitch
Rear Type	I
Control	position control

Power Take-off (PTO)
Rear PTO Type	540/750/ground

Dimensions & Tires
Wheelbase	46.5 inches 118 cm
Weight	1764 lbs 800 kg
Front tire	7.50x16
Rear tire	7.50x16
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12
Battery AH	92

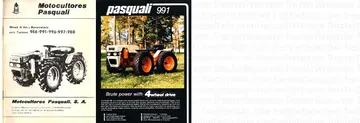

References
Manual de Uso y Maintenimiento
991 published by Pasquali

Engine

Engine Detail — 49.9 ci / 0.8 L Diesel

Manufacturer	Lombardini LDA-820
Fuel Type	Diesel
Configuration	1-cylinder, air-cooled
Displacement	49.9 ci 0.8 L
Bore/Stroke	4.02x3.94 inches 102 x 100 mm
Power (net)	20.7 hp 15.4 kW
Power (gross)	24 hp 17.9 kW
Rated RPM	3000
Starter	electric
Starter volts	12

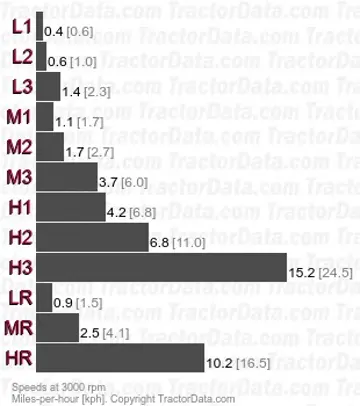

Transmission

Transmission — 9 forward and 3 reverse gear

Type	gear
Gears	9 forward and 3 reverse
Clutch	203.2mm mechanical dry disc
Three gears, plus reverse, in three ranges.

Dimensions

Pasquali 991 Tires
Ag front	7.50x16
Ag rear	7.50x16

Dimensions
Wheelbase	46.5 inches 118 cm
Length	96.5 inches 245 cm
Height (steering wheel)	42.1 inches 106 cm
Weight	1764 lbs 800 kg
Ground clearance	9.8 inches 24 cm
Front tread	26.4 to 40.6 inches 67 to 103 cm
Rear tread	26.4 to 40.6 inches 67 to 103 cm

Photos

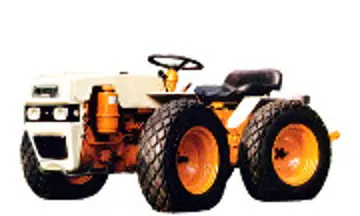

Pasquali 991 tractor photo
