SAME Panther 95

The SAME Panther 95 is a tractor produced by Same. It is equipped with a 316.87 ci 5.2 L engine. The rated power output is 94 hp 70.1 kW. Transmission: 20 forward and 5 reverse. Operating weight: 7227 to 7880 pounds.

Overview

	1979 - 1981 Row-Crop tractor
1979 - 1981
Row-Crop tractor

Production
Manufacturer	SAME
Row-Crop tractor

SAME Panther 95 Engine
SAME 5.2L 5-cyl diesel
Fuel tank	25.3 gal 95.8 L
Engine details ...

SAME Panther 95 Power
Engine	94 hp 70.1 kW

Mechanical
Two- or four-wheel drive
Differential lock	mechanical rear
Power steering
Mechanical wet disc brakes
Four-post ROPS. Cab optional.

Hydraulics
Pressure	2489 psi 171.6 bar
Pump flow	9.2 gpm 34.8 lpm
	15.9 gpmOptOptional 60.2 lpm

Tractor hitch
Rear Type	II
Control	lower-link draft sensing
Rear lift	9349 lbs 4240 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	hydraulic wet disc
Rear PTO Type	540/1000 (1.375)
	540 (1.75)OptOptional

Dimensions & Tires
2WD Wheelbase	98.4 inches 249 cm
4WD Wheelbase	99.6 inches 252 cm
Weight	7227 to 7880 pounds
Front tire	7.50-20
2WD Rear tire	18.4/15-34
Full dimensions and tires ...

References
Panther 95 published in 1983, by SAME

Engine

Engine Detail — 316.87 ci / 5.2 L Diesel

Manufacturer	SAME 1055 P
Fuel Type	Diesel
Configuration	5-cylinder, air-cooled inline
Displacement	316.87 ci 5.2 L
Bore/Stroke	4.13x4.72 inches 105 x 120 mm
Power	94 hp 70.1 kW
Fuel system	direct injection
Air cleaner	dry
Compression	17:1
Rated RPM	2200
Starter	electric
Starter volts	12

Transmission

Transmission options
12-speed synchronized
20-speed creeper

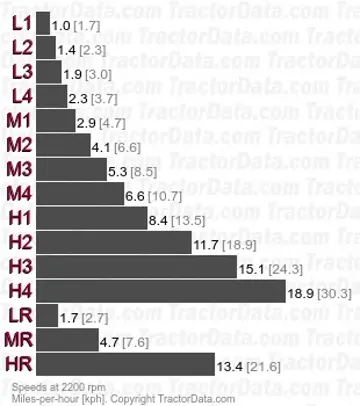

Transmission — 12 forward and 3 reverse synchronized

Type	synchronized
Gears	12 forward and 3 reverse
Clutch	mechanical dry disc
Four gears, plus reverse, in three ranges.
With 18.4/15-34 rear tires and 30 kph transmission.
Transmission
Type	creeper
Gears	20 forward and 5 reverse
With 18.4/15-34 rear tires and 30 kph transmission.

Dimensions

SAME Panther 95 Tires
2WD Standard tires (ag)	Front: 7.50-20. Rear: 18.4/15-34
4WD Standard tires (ag)	Front: 16.9/14-24. Rear: 18.4/15-34
@WD Optional tires (ag)	Front: 7.50-18. Rear: 13.6/12-38
2WD Optional tires (ag)	Front: 7.50-18. Rear: 16.9/14-34
2WD Optional tires (ag)	Front: 9.00-16. Rear: 21.3/18-30
4WD Optional tires (ag)	Front: 12.4/11-28. Rear: 13.6/12-38
4WD Optional tires (ag)	Front: 13.6/12-24. Rear: 23.1/18-26
4WD Optional tires (ag)	Front: 14.9/13-24. Rear: 23.1/18/-30
4WD Optional tires (ag)	Front: 14.9/13-24. Rear: 16.9/14-24

Dimensions
2WD Wheelbase	98.4 inches 249 cm
4WD Wheelbase	99.6 inches 252 cm
2WD Length	152.3 inches 386 cm
4WD Length	157 inches 398 cm
Width	82.7 inches*Minimum width. 210 cm
Height (hood)	64.2 inches 163 cm
Height (ROPS)	106.7 inches 271 cm
2WD Weight	7227 lbs 3278 kg
4WD Weight	7880 lbs 3574 kg
Ground clearance	17.9 inches 45 cm
2WD Front tread	66.9 to 90.5 inches 169 to 229 cm
4WD Front tread	66.9 to 77.9 inches 169 to 197 cm
Rear tread	64.2 to 83.8 inches 163 to 212 cm

Photos

SAME Panther 95 tractor photo
