Scotts 50567X
The Scotts 50567X is a tractor produced by Scotts Lawn Tractors. The listed engine power is Gasoline (listed): 20 hp / 14.9 kW. Transmission: Peerless VST205-023B.
Engine Power
Gasoline (listed): 20 hp / 14.9 kW
Fuel & Capacities
Gasoline
Transmission
Peerless VST205-023B
Overview
 | 1998
Murray built |
|---|
Production | |
|---|---|
Distributor | Scotts |
Manufacturer | Murray |
Scotts 50567X Engine | |
|---|---|
20HP Kohler 2-cyl gasoline | |
Engine details ...  |
Scotts 50567X Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Front tire | 16x6.5-8 |
Rear tire | 22x10.5-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — Gasoline
Manufacturer | Kohler |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft V-Twin |
Power | 20 hp
14.9 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — Peerless VST205-023B
Transmission | Peerless VST205-023B |
Type | hydrostatic |
Gears | infinite forward and reverse |
Dimensions
Scotts 50567X Tires | |
|---|---|
Lawn/turf front | 16x6.5-8 |
Lawn/turf rear | 22x10.5-12 |
Dimensions |
|---|
Attachments
50" Mower deck | |
|---|---|
Type | mid-mount Scotts |
3-blade | |
Cutting width | 50 inches
127 cm |
Photos

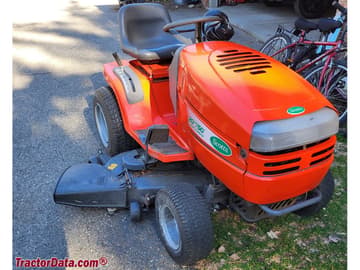

Scotts 50567X
Recommended Implements & Sizing Guide
Engineering recommendations for Scotts Lawn Tractors Scotts 50567X based on its 20 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Scotts Lawn Tractors Scotts 50567X.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Scotts Lawn Tractors Scotts 50567X Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Scotts Lawn Tractors Scotts 50567X.
Converted Equivalents:
Horsepower (HP)20 hp
Kilowatts (kW)14.9 kW
Metric Horsepower (PS / CV)20.3 PS
Direct Competitor Comparison
Compare Scotts 50567X against same-era industry alternatives in the same horsepower class.
Current Model
Scotts Lawn Tractors
Scotts 50567X
Engine Power:Gasoline (listed): 20 hp / 14.9 kW
★ Baseline Reference
International HarvesterMarket Competitor
International Harvester 184 Lo-Boy
Engine Power:18
Production Years:1977 - 1980
