Scotts L17.542
The Scotts L17.542 is a tractor produced by Scotts Lawn Tractors. It is equipped with a 460 cc 28.1 ci engine. The listed engine power is Gasoline (listed): 17.5 hp / 13.0 kW. Transmission: Tuff Torq K46 HD. Operating weight: 462 lbs 209 kg.
Engine Power
Gasoline (listed): 17.5 hp / 13.0 kW
Fuel & Capacities
2.1 gal
7.9 L
Transmission
Tuff Torq K46 HD
Operating Weight
462 lbs
209 kg
Overview
 | 2002
Lawn tractorJohn Deere built
Lawn tractor
John Deere built |
|---|
Production | |
|---|---|
Distributor | Scotts |
Manufacturer | John Deere |
Lawn tractor | |
Built in Greeneville, Tennessee, USA | |
Scotts L17.542 Engine | |
|---|---|
17.5HP Kohler 460cc 1-cyl gasoline | |
Fuel tank | 2.1 gal
7.9 L |
Engine details ...  | |
Scotts L17.542 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | manual |
Dimensions & Tires | |
|---|---|
Weight | 462 lbs
209 kg |
Front tire | 15x6.00-6 |
Rear tire | 20x8.0-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | Regulated circuit |
Charging amps | 9 |
Battery volts | 12 |
Battery Group | BCI Group U1 |
References | |
|---|---|
 | |
Operator's Manual Scotts Lawn Tractors L1742, L17.542, L2048 and L2548, S1742, and S2046 (OMGX20928) published in 2001 |
Engine
Engine Detail — 460 cc / 28.1 ci Gasoline
Manufacturer | Kohler |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 460 cc
28.1 ci |
Power | 17.5 hp
13.0 kW |
Air cleaner | paper with foam precleaner |
Starter | electric |
Starter volts | 12 |
Sparkplug gap | 0.040 inches
1.016 mm |
Oil capacity | 1.5 qts
1.4 L |
Transmission
Transmission — Tuff Torq K46 HD
Transmission | Tuff Torq K46 HD |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
Scotts L17.542 Tires | |
|---|---|
Lawn/turf front | 15x6.00-6 |
Lawn/turf rear | 20x8.0-8 |
Dimensions | |
|---|---|
Length | 60 inches
152 cm |
Width | 36 inches
91 cm |
Height | 38.6 inches
98 cm |
Weight | 462 lbs
209 kg |
Attachments
Attachment overview | |
|---|---|
42" mid-mount mower deck | |
Snowblower | |
Blade |
42" Mower deck | |
|---|---|
Type | mid-mount Scotts |
2-blade | |
Cutting width | 42 inches
106 cm |
Cut height | 1 to 4 inch
2 to 10 cm |
Photos

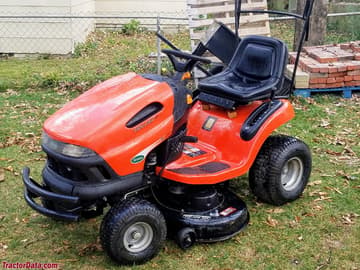

Scotts L17.542
Recommended Implements & Sizing Guide
Engineering recommendations for Scotts Lawn Tractors Scotts L17.542 based on its 17.5 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Scotts Lawn Tractors Scotts L17.542.
Estimated Continuous Field Runtime: 2.3 hrs
Approximately 2.3 hours of continuous field operation at ~75% rated power on a full tank (2.1 gal / 7.9 L).
Estimated 75% Load Fuel Burn~0.9 gal/hr (3.4 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Scotts Lawn Tractors Scotts L17.542 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Scotts Lawn Tractors Scotts L17.542.
Converted Equivalents:
Horsepower (HP)17.5 hp
Kilowatts (kW)13 kW
Metric Horsepower (PS / CV)17.7 PS
Direct Competitor Comparison
Compare Scotts L17.542 against same-era industry alternatives in the same horsepower class.
Current Model
Scotts Lawn Tractors
Scotts L17.542
Engine Power:Gasoline (listed): 17.5 hp / 13.0 kW
★ Baseline Reference
