Scotts L2048
The Scotts L2048 is a tractor produced by Scotts Lawn Tractors. It is equipped with a 655 cc 40 ci engine. The rated power output is 20 hp 14.9 kW. Transmission: Tuff Torq K46 HD. Operating weight: 532 lbs 241 kg.
Engine Power
20 hp
14.9 kW
Fuel & Capacities
2.1 gal
7.9 L
Transmission
Tuff Torq K46 HD
Operating Weight
532 lbs
241 kg
Scotts Lawn Tractors Scotts L2048 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2002
Lawn tractorJohn Deere built |
|---|---|
2002 | |
Lawn tractor | |
John Deere built | |
2002 | |
|---|---|
Lawn tractor | |
John Deere built |
Production | |
|---|---|
Distributor | Scotts |
Manufacturer | John Deere |
Lawn tractor | |
Built in Greeneville, Tennessee, USA | |
Scotts L2048 Engine | |
|---|---|
20HP Briggs & Stratton 655cc 2-cyl gasoline | |
Fuel tank | 2.1 gal
7.9 L |
Engine details ...  | |
Scotts L2048 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Weight | 532 lbs
241 kg |
Front tire | 16x6.5-8 |
Rear tire | 22x9.5-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | Regulated circuit |
Charging amps | 16 |
Battery volts | 12 |
Battery Group | BCI Group U1 |
References | |
|---|---|
 | |
Operator's Manual Scotts Lawn Tractors L1742, L17.542, L2048 and L2548, S1742, and S2046 (OMGX20928) published in 2001 |
Engine
| 2002
Lawn tractorJohn Deere built |
|---|---|
2002 | |
Lawn tractor | |
John Deere built | |
2002 | |
|---|---|
Lawn tractor | |
John Deere built |
Engine Detail — 655 cc / 40 ci Gasoline
Manufacturer | Briggs & Stratton Intek |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft V-Twin |
Displacement | 655 cc
40 ci |
Power | 20 hp
14.9 kW |
Air cleaner | foam |
Starter | electric |
Starter volts | 12 |
Sparkplug gap | 0.040 inches
1.016 mm |
Oil capacity | 2 qts
1.9 L |
Transmission
| 2002
Lawn tractorJohn Deere built |
|---|---|
2002 | |
Lawn tractor | |
John Deere built | |
2002 | |
|---|---|
Lawn tractor | |
John Deere built |
Transmission — Tuff Torq K46 HD
Transmission | Tuff Torq K46 HD |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
| 2002
Lawn tractorJohn Deere built |
|---|---|
2002 | |
Lawn tractor | |
John Deere built | |
2002 | |
|---|---|
Lawn tractor | |
John Deere built |
Scotts L2048 Tires | |
|---|---|
Lawn/turf front | 16x6.5-8 |
Lawn/turf rear | 22x9.5-12 |
Dimensions | |
|---|---|
Length | 60 inches
152 cm |
Width | 36 inches
91 cm |
Height | 38.6 inches
98 cm |
Weight | 532 lbs
241 kg |
Attachments
| 2002
Lawn tractorJohn Deere built |
|---|---|
2002 | |
Lawn tractor | |
John Deere built | |
2002 | |
|---|---|
Lawn tractor | |
John Deere built |
Attachment overview | |
|---|---|
48" mid-mount mower deck | |
Snowblower | |
Blade |
48" Mower deck | |
|---|---|
Type | mid-mount Scotts |
3-blade | |
Cutting width | 48 inches
121 cm |
Cut height | 1 to 4 inch
2 to 10 cm |
Photos

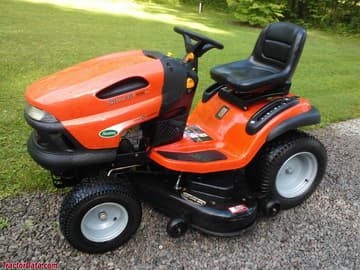

Scotts L2048
