Scotts S2048
The Scotts S2048 is a tractor produced by Scotts Lawn Tractors. It is equipped with a 624 cc 38.1 ci engine. The listed engine power is Gasoline (listed): 20 hp / 14.9 kW. Transmission: Tuff Torq K62. Operating weight: 570 lbs 258 kg.
Overview
 | 1999 - 2001
Lawn tractorJohn Deere built
Lawn tractor
John Deere built |
|---|
Production | |
|---|---|
Distributor | Scotts |
Manufacturer | John Deere |
Lawn tractor | |
Built in Horicon, Wisconsin, USA | |
Scotts S2048 Engine | |
|---|---|
20HP Kohler 624cc 2-cyl gasoline | |
Fuel tank | 3 gal
11.4 L |
Engine details ...  | |
Scotts S2048 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Weight | 570 lbs
258 kg |
Front tire | 16x6.5-8 |
Rear tire | 23x9.5-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Scotts Lawn Tractors S1642, S1742, and S2046 (OMGX10342) published in 1998 | |
Scotts Lawn Tractors S1642, S1742, and S2046 (OMGX10784 ) |
Engine
Engine Detail — 624 cc / 38.1 ci Gasoline
Manufacturer | Kohler CV20S |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft V-Twin |
Displacement | 624 cc
38.1 ci |
Bore/Stroke | 3.03x2.64 inches
77 x 67 mm |
Power | 20 hp
14.9 kW |
Air cleaner | paper with foam precleaner |
Starter | electric |
Starter volts | 12 |
Sparkplug gap | 0.030 inches
0.762 mm |
Oil capacity | 2 qts
1.9 L |

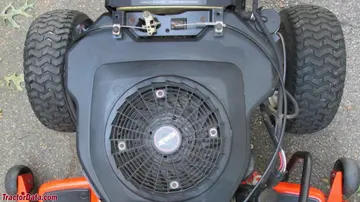

Scotts S2048 Engine | |
|---|---|
 | |
Image courtesy of Jay's Power Equipment |
Transmission
Transmission — Tuff Torq K62
Transmission | Tuff Torq K62 |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
Oil type | 5W30 |
 | |
5W30 |
|---|
S2048 Transmission Controls | |
|---|---|
 | |
1 | Throttle |
2 | Brake |
3 | Forward |
4 | Reverse |
5 | Parking brake |
Dimensions
Scotts S2048 Tires | |
|---|---|
Lawn/turf front | 16x6.5-8 |
Lawn/turf rear | 23x9.5-12 |
Dimensions | |
|---|---|
Length | 72 inches
182 cm |
Height | 44.9 inches
114 cm |
Weight | 570 lbs
258 kg |
Attachments
48" Mower deck | |
|---|---|
Type | mid-mount Scotts |
Cutting width | 48 inches
121 cm |
Cut height | 1.25 to 4 inch
3 to 10 cm |
Photos

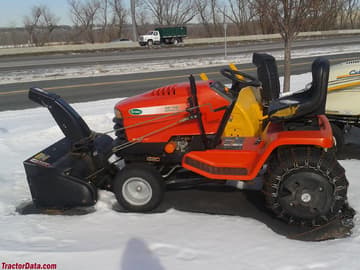

Scotts S2048 with front-mount snowblower.
Scotts S2048 dashboard and controls.
Scotts S2048 with Power Flow bagger.
Scotts S2048 with Power Flow bagger.
Scotts S2048 with Power Flow bagger.
Scotts S2048 with Power Flow bagger.
Scotts S2048 with Power Flow bagger.
Recommended Implements & Sizing Guide
Engineering recommendations for Scotts Lawn Tractors Scotts S2048 based on its 20 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Scotts Lawn Tractors Scotts S2048.
Estimated Continuous Field Runtime: 2.9 hrs
Approximately 2.9 hours of continuous field operation at ~75% rated power on a full tank (3 gal / 11.4 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
Scotts Lawn Tractors Scotts S2048 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Scotts Lawn Tractors Scotts S2048.
Converted Equivalents:
Direct Competitor Comparison
Compare Scotts S2048 against same-era industry alternatives in the same horsepower class.
Scotts S2048
International Harvester 184 Lo-Boy
