Scotts S2348
The Scotts S2348 is a tractor produced by Scotts Lawn Tractors. The listed engine power is Gasoline (gross): 23 hp / 17.2 kW. Transmission: Tuff Torq K62.
Engine Power
Gasoline (gross): 23 hp / 17.2 kW
Fuel & Capacities
Gasoline
Transmission
Tuff Torq K62
Overview
 | 2000 - 2001
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | Scotts (a part of John Deere) |
Lawn tractor | |
Built in Horicon, Wisconsin, USA | |
Scotts S2348 Engine | |
|---|---|
23HP Kohler 2-cyl gasoline | |
Engine details ...  |
Scotts S2348 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electro-magnetic |
Dimensions & Tires | |
|---|---|
Front tire | 16x6.5-8 |
Rear tire | 23x9.5-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — Gasoline
Manufacturer | Kohler Command |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft V-twin |
Power (gross) | 23 hp
17.2 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — Tuff Torq K62
Transmission | Tuff Torq K62 |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
Dimensions
Scotts S2348 Tires | |
|---|---|
Lawn/turf front | 16x6.5-8 |
Lawn/turf rear | 23x9.5-12 |
Dimensions |
|---|
Attachments
Attachment overview | |
|---|---|
48" mid-mount mower deck | |
Snowblower | |
Blade |
48" Mower deck | |
|---|---|
Type | mid-mount Scotts |
Cutting width | 48 inches
121 cm |
Photos

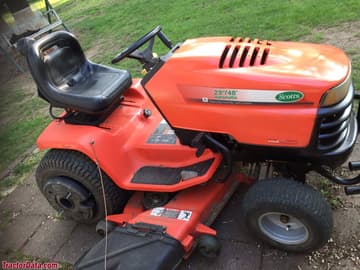

Scotts S2348
Recommended Implements & Sizing Guide
Engineering recommendations for Scotts Lawn Tractors Scotts S2348 based on its 23 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Scotts Lawn Tractors Scotts S2348.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Scotts Lawn Tractors Scotts S2348 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Scotts Lawn Tractors Scotts S2348.
Converted Equivalents:
Horsepower (HP)23 hp
Kilowatts (kW)17.2 kW
Metric Horsepower (PS / CV)23.3 PS
