Simplicity 12.5LTG

The Simplicity 12.5LTG is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 398 cc 24.3 ci engine. The listed engine power is Gasoline (gross): 12.5 hp / 9.3 kW. Transmission: 5 forward and 1 reverse. Operating weight: 115 lbs 52 kg.

Overview

	1990 - 1993 Broadmoor LT SeriesLawn tractor Broadmoor LT Series Lawn tractor

Production
Manufacturer	Simplicity
Lawn tractor
Built in Port Washington, Wisconsin, USA
Original price was $2,750 in 1991

Variants

Simplicity 12.5LTG Engine
12.5HP Kohler 398cc 1-cyl gasoline
Fuel tank	4 gal 15.1 L
Engine details ...

Simplicity 12.5LTG Transmission
5-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric
Mid PTO Type	pulley

Dimensions & Tires
Wheelbase	48 inches 121 cm
Weight	440 lbs 199 kg
Front tire	15x6.0-6
Rear tire	18x8.5-8
Full dimensions and tires ...

Electrical
Ground	negative
Battery CCA	340
Battery volts	12

References
Operator's Manual Broadmoor Series (1709979) published in 1994
Outdoor Power Equipment published in 1990, by Simplicity
Outdoor Power Equipment published in 1992, by Simplicity
1991 Pocket Price List published in 1990, by Simplicity
1993 Price List published in 1992, by Simplicity

Engine

Engine Detail — 398 cc / 24.3 ci Gasoline

Manufacturer	Kohler
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	398 cc 24.3 ci
Bore/Stroke	3.43x2.64 inches 87 x 67 mm
Power (gross)	12.5 hp 9.3 kW
Starter	electric
Starter volts	12
Oil capacity	2 qts 1.9 L

Transmission

Transmission — 5 forward and 1 reverse belt-driven gear

Type	belt-driven gear
Gears	5 forward and 1 reverse

Dimensions

Simplicity 12.5LTG Tires
Lawn/turf front	15x6.0-6
Lawn/turf rear	18x8.5-8

Dimensions
Wheelbase	48 inches 121 cm
Length	67 inches 170 cm
Width	34.5 inches 87 cm
Height (steering wheel)	39 inches 99 cm
Height (hood)	33 inches 83 cm
Weight	440 lbs*Tractor only 199 kg

Attachments

Attachment overview
38" mid-mount mower deck
Snowblower
Blade

38" Mower deck
Type	mid-mount Simplicity 1691704
Cutting width	38 inches 96 cm
Weight	115 lbs 52 kg

Photos

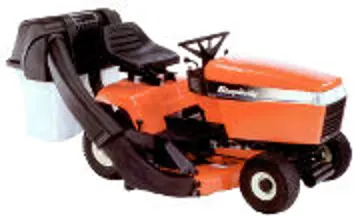

Simplicity 12.5LTG tractor photo
