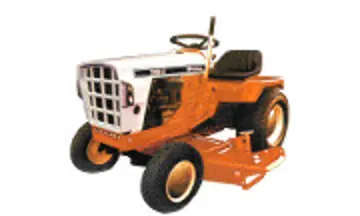

Simplicity 3310V

The Simplicity 3310V is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 392 cc 23.94 ci engine. The listed engine power is Gasoline (gross): 10 hp / 7.5 kW. Transmission: 3 forward and 1 reverse. Operating weight: 785 lbs 356 kg.

Overview

	1970 - 1971 Landlord SeriesGarden tractor Landlord Series Garden tractor

Production
Manufacturer	Simplicity (a part of Allis Chalmers)
Garden tractor
Built in Port Washington, Wisconsin, USA

Variants
3310V	gear drive
3310H	hydrostatic

Simplicity 3310V Engine
10HP Briggs & Stratton 392cc 1-cyl gasoline
Fuel tank	3 gal 11.4 L
Engine details ...

Simplicity 3310V Transmission
3-speed gear with mechanical CVT
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Mechanical band brakes
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	mechanical idler pulley

Dimensions & Tires
Wheelbase	48 inches 121 cm
Weight	785 lbs 356 kg
Front tire	4.80-8
Rear tire	23x8.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
We offer Simplicity published in 1971

Engine

Engine Detail — 392 cc / 23.94 ci Gasoline

Manufacturer	Briggs & Stratton 243431
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled horizontal-shaft
Displacement	392 cc 23.94 ci
Bore/Stroke	3.0625x3.25 inches 78 x 83 mm
Power (gross)	10 hp 7.5 kW
Starter	electric
Starter volts	12

Transmission

Transmission — 3 forward and 1 reverse shaft-driven gear with mechanical CVT

Type	shaft-driven gear with mechanical CVT
Gears	3 forward and 1 reverse
Oil capacity	1.75 qts 1.7 L
Oil type	SAE 90

Dimensions

Simplicity 3310V Tires
Lawn/turf front	4.80-8
Lawn/turf rear	23x8.50-12

Dimensions
Wheelbase	48 inches 121 cm
Length	67 inches 170 cm
Width	34.5 inches 87 cm
Height (steering wheel)	35 inches 88 cm
Shipping weight	785 lbs 356 kg
Clearance (front axle)	9 inches 22 cm
Clearance (rear axle)	6 inches 15 cm
Clearance (drawbar)	7 inches 17 cm

Attachments

Attachment overview
42" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

42" Mower deck
Type	mid-mount Simplicity
	3-blade
Cutting width	42 inches 106 cm
Overall width	47.5 inches 120 cm
Cut height	1.625 to 3.125 inch 4 to 7 cm

Photos

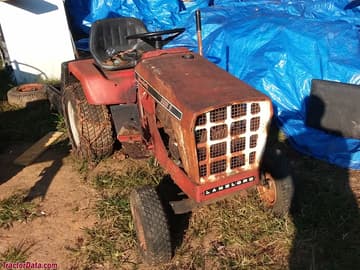

Simplicity 3310V
