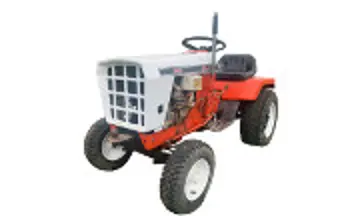

Simplicity 3410

The Simplicity 3410 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 392 cc 23.94 ci engine. The listed engine power is Gasoline (gross): 10 hp / 7.5 kW. Transmission: 3 forward and 1 reverse.

Overview

	1972 - 1974 Landlord SeriesGarden tractor Landlord Series Garden tractor

Production
Manufacturer	Simplicity (a part of Allis Chalmers)
Garden tractor
Built in Port Washington, Wisconsin, USA

Variants
3410	gear drive
3410S	shuttle shift
3410H	hydrostatic

Simplicity 3410 Engine
10HP Briggs & Stratton 392cc 1-cyl gasoline
Fuel tank	3 gal 11.4 L
Engine details ...

Simplicity 3410 Transmission
3-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Mechanical band brakes
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	mechanical idler pulley

Dimensions & Tires
Wheelbase	48 inches 121 cm
Front tire	4.80-8
Rear tire	23x6.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
15 hp. and 10 hp. tractors published in 1972, by Simplicity
Lawn Tractors published in 1973, by Simplicity
Tractors and Attachments published in 1974, by Simplicity

Engine

Engine Detail — 392 cc / 23.94 ci Gasoline

Manufacturer	Briggs & Stratton 243431
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled horizontal-shaft
Displacement	392 cc 23.94 ci
Bore/Stroke	3.0625x3.25 inches 78 x 83 mm
Power (gross)	10 hp 7.5 kW
Starter	electric
Starter volts	12
Oil capacity	2 qts 1.9 L
Oil change	25 h

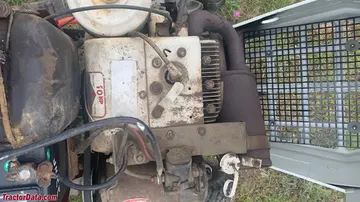

Simplicity 3410 Engine
Image courtesy of Richard McCarthy

Transmission

Transmission — 3 forward and 1 reverse shaft-driven gear

Type	shaft-driven gear
Gears	3 forward and 1 reverse

Dimensions

Simplicity 3410 Tires
Lawn/turf front	4.80-8
Lawn/turf rear	23x6.50-12

Dimensions
Wheelbase	48 inches 121 cm
Length	67 inches 170 cm
Width	34.5 inches 87 cm
Height (steering wheel)	39.25 inches 99 cm
Clearance (front axle)	9 inches 22 cm
Clearance (rear axle)	6 inches 15 cm
Clearance (drawbar)	7 inches 17 cm

Attachments

Attachment overview
42" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

42" Mower deck
Type	mid-mount Simplicity
	3-blade
Cutting width	42 inches 106 cm
Overall width	47.5 inches 120 cm
Cut height	1.625 to 3.125 inch 4 to 7 cm

Photos

Simplicity 3410

Simplicity 3410

Simplicity 3410

Simplicity 3410

Simplicity Landlord 3410 with hood open.
