Simplicity 3110

The Simplicity 3110 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 361 cc 22.04 ci engine. The listed engine power is Gasoline (gross): 10 hp / 7.5 kW. Transmission: Tecumseh 740. Operating weight: 370 lbs 167 kg.

Overview

	1980 - 1989 Cavalier 3100 SeriesRiding lawn mower Cavalier 3100 Series Riding lawn mower

Production
Manufacturer	Simplicity
Riding lawn mower
Built in Port Washington, Wisconsin, USA

Simplicity 3110 Engine
10HP Briggs & Stratton 361cc 1-cyl gasoline
Fuel tank	1.75 gal 6.6 L
Engine details ...

Simplicity 3110 Transmission
5-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Dimensions & Tires
Weight	370 lbs 167 kg
Front tire	4.10x3.5-4
Rear tire	16x6.50-8
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	3
Battery volts	12

References
Riding Mowers and Garden Tractors published in 1982, by Simplicity
Outdoor Power Equipment published in 1987, by Simplicity

Engine

Engine Detail — 361 cc / 22.04 ci Gasoline

Manufacturer	Briggs & Stratton
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	361 cc 22.04 ci
Bore/Stroke	3.44x2.38 inches 87 x 60 mm
Power (gross)	10 hp 7.5 kW
Air cleaner	oiled foam
Rated RPM	3600
Starter	electric
Starter volts	12
Oil capacity	1.5 qts 1.4 L

Transmission

Transmission — Tecumseh 740

Transmission	Tecumseh 740
Type	belt-driven gear
Gears	5 forward and 1 reverse

Dimensions

Simplicity 3110 Tires
Lawn/turf front	4.10x3.5-4
Lawn/turf rear	16x6.50-8

Dimensions
Weight	370 lbs 167 kg

Attachments

36" Mower deck
Type	mid-mount Simplicity
	2-blade
Cutting width	36 inches 91 cm
Cut height	1.3 to 4.5 inch 3 to 11 cm
Cut positions	6

Photos

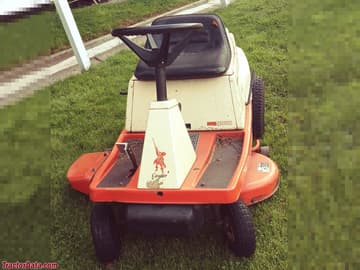

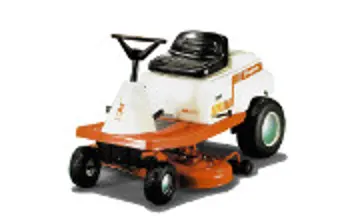

Simplicity 3110

Simplicity 3110

Simplicity 3110

Simplicity 3110
