Simplicity 10REG
The Simplicity 10REG is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 361 cc 22.04 ci engine. The listed engine power is Gasoline (gross): 10 hp / 7.5 kW. Transmission: 5 forward and 1 reverse. Operating weight: 370 lbs 167 kg.
Engine Power
Gasoline (gross): 10 hp / 7.5 kW
Fuel & Capacities
1.25 gal
4.7 L
Transmission
5 forward and 1 reverse
Operating Weight
370 lbs
167 kg
Overview
 | 1990 - 1992
Cavalier 3100 SeriesRiding lawn mower
Cavalier 3100 Series
Riding lawn mower |
|---|
Production | |
|---|---|
Manufacturer | Simplicity |
Riding lawn mower | |
Built in Port Washington, Wisconsin, USA | |
Original price | $1,699 (1990 30-inch ) |
$1,899 (1990 30-inch ) | |
Simplicity 10REG Engine | |
|---|---|
10HP Briggs & Stratton 361cc 1-cyl gasoline | |
Fuel tank | 1.25 gal
4.7 L |
Engine details ...  | |
Simplicity 10REG Transmission | |
|---|---|
5-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Mechanical band brakes | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Weight | 370 lbs
167 kg |
Front tire | 4.10/3.50-4 |
Rear tire | 16x6.50-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 3 |
Battery volts | 12 |
References | |
|---|---|
 | |
Outdoor Power Equipment published in 1990, by Simplicity | |
Outdoor Power Equipment published in 1992, by Simplicity | |
1990 Pocket Price List published in 1989, by Simplicity | |
1991 Pocket Price List published in 1990, by Simplicity |
Engine
Engine Detail — 361 cc / 22.04 ci Gasoline
Manufacturer | Briggs & Stratton |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 361 cc
22.04 ci |
Bore/Stroke | 3.44x2.38 inches
87 x 60 mm |
Power (gross) | 10 hp
7.5 kW |
Air cleaner | foam element |
Rated RPM | 3600 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 1.5 qts
1.4 L |
Transmission
Transmission — 5 forward and 1 reverse belt-driven gear
Type | belt-driven gear |
Gears | 5 forward and 1 reverse |
 | |
Dimensions
Simplicity 10REG Tires | |
|---|---|
Lawn/turf front | 4.10/3.50-4 |
Lawn/turf rear | 16x6.50-8 |
Dimensions | |
|---|---|
Length | 60.75 inches
154 cm |
Width | 31 inches
78 cm |
Height | 38 inches
96 cm |
Weight | 370 lbs
167 kg |
Attachments
Attachment overview | |
|---|---|
30" mid-mount mower deck | |
36" mid-mount mower deck |
Photos

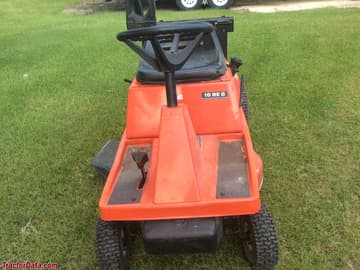

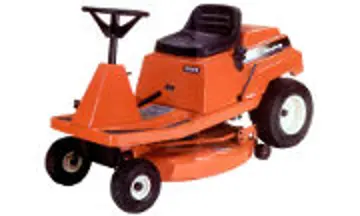

Simplicity 10REG
Simplicity 10REG
Simplicity 10REG
Simplicity 10REG operator station and controls.
Simplicity Lawn Tractors Simplicity 10REG Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Simplicity Lawn Tractors Simplicity 10REG.
Converted Equivalents:
Horsepower (HP)10 hp
Kilowatts (kW)7.5 kW
Metric Horsepower (PS / CV)10.1 PS
