Simplicity 12RTH

The Simplicity 12RTH is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 465 cc 28.4 ci engine. The listed engine power is Gasoline (gross): 12 hp / 8.9 kW. Transmission: infinite forward and reverse. Operating weight: 411 lbs 186 kg.

Overview

	1992 4200 SeriesLawn tractor 4200 Series Lawn tractor

Production
Manufacturer	Simplicity
Lawn tractor
Built in Port Washington, Wisconsin, USA

Variants
126RTG	gear
12RTH	hydrostatic

Simplicity 12RTH Engine
12HP Briggs & Stratton 465cc 1-cyl gasoline
Fuel tank	2.2 gal 8.3 L
Engine details ...

Simplicity 12RTH Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Mid PTO	indepenent
Clutch	manual

Dimensions & Tires
Weight	411 lbs 186 kg
Front tire	15x6.0-6
Rear tire	18x8.5-8
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Outdoor Power Equipment published in 1992, by Simplicity

Engine

Engine Detail — 465 cc / 28.4 ci Gasoline

Manufacturer	Briggs & Stratton
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled
Displacement	465 cc 28.4 ci
Bore/Stroke	3.44x3.06 inches 87 x 78 mm
Power (gross)	12 hp 8.9 kW
Rated RPM	3600
Starter	electric
Starter volts	12
Oil capacity	1.5 qts 1.4 L

Transmission

Transmission — infinite forward and reverse belt-driven hydrostatic

Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Simplicity 12RTH Tires
Lawn/turf front	15x6.0-6
Lawn/turf rear	18x8.5-8

Dimensions
Length	63 inches 160 cm
Width	34.25 inches 86 cm
Height	39.7 inches 100 cm
Weight	411 lbs 186 kg

Attachments

36" Mower deck
Type	mid-mount Simplicity
	2-blade
Cutting width	36 inches 91 cm
Cut height	1.5 to 3.5 inch 3 to 8 cm

Photos

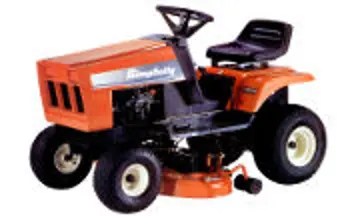

Simplicity 12RTH tractor photo
