Simplicity 3008 1690090

The Simplicity 3008 1690090 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 318 cc 19.44 ci engine. The listed engine power is Gasoline (listed): 8 hp / 6.0 kW. Transmission: 3 forward and 1 reverse. Operating weight: 97.5 lbs 44 kg.

Overview

	1975 - 1976 Lawn tractor

Production
Manufacturer	Simplicity (a part of Allis Chalmers)
Lawn tractor
Built in Port Washington, Wisconsin, USA
Original price was $995 in 1976

Simplicity 3008 Engine
8HP Briggs & Stratton 318cc 1-cyl gasoline
Fuel tank	0.875 gal 3.3 L
Engine details ...

Simplicity 3008 Transmission
3-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Dimensions & Tires
Wheelbase	41.5 inches 105 cm
Weight	302.5 lbs 137 kg
Front tire	13x5.0-6
Rear tire	16x6.50-8
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12
Battery AH	32

Engine

Engine Detail — 318 cc / 19.44 ci Gasoline

Manufacturer	Briggs & Stratton 190707
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	318 cc 19.44 ci
Bore/Stroke	3.00x2.75 inches 76 x 70 mm
Power	8 hp 6.0 kW
Starter	electric
Starter volts	12

Transmission

Transmission — 3 forward and 1 reverse belt-driven gear

Type	belt-driven gear
Gears	3 forward and 1 reverse

Dimensions

Simplicity 3008 Tires
Lawn/turf front	13x5.0-6
Lawn/turf rear	16x6.50-8

Dimensions
Wheelbase	41.5 inches 105 cm
Length	59 inches 149 cm
Width	31 inches 78 cm
Height (steering wheel)	32.5 inches 82 cm
Shipping weight	302.5 lbs 137 kg

Attachments

Attachment overview
36" mid-mount mower deck
Snowblower

36" Mower deck
Type	mid-mount Simplicity
	3-blade
Cutting width	36 inches 91 cm
Weight	97.5 lbs 44 kg

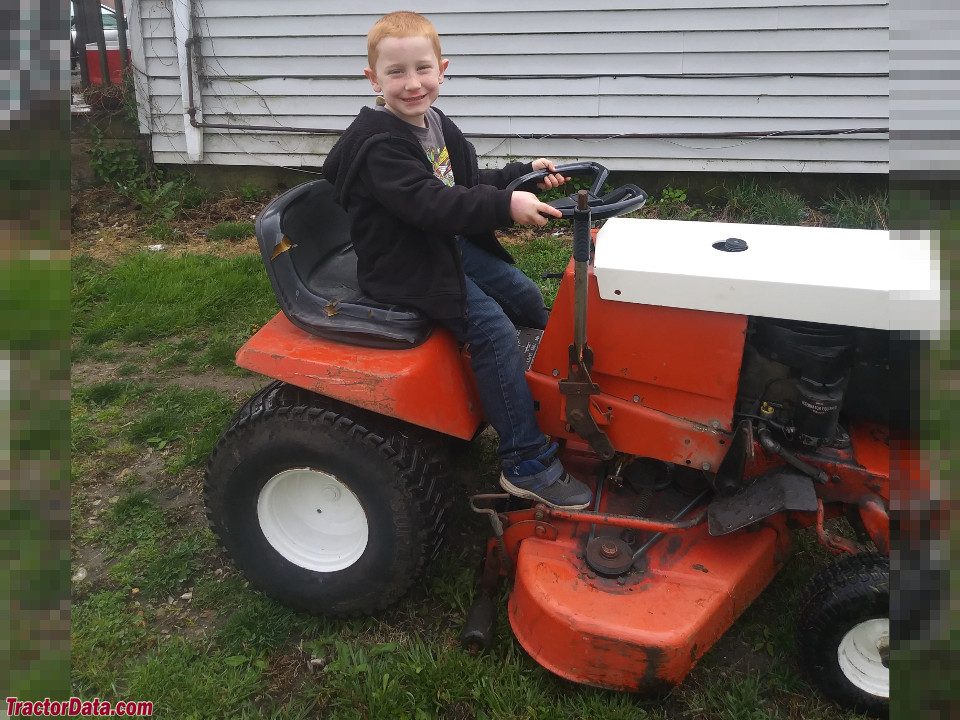

Photos

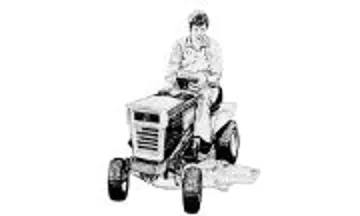

Simplicity 3008 1690090
