Simplicity 700

The Simplicity 700 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 304 cc 18.56 ci engine. The listed engine power is Gasoline (gross): 7 hp / 5.2 kW. Transmission: 3 forward and 1 reverse. Operating weight: 530 lbs 240 kg.

Overview

	1959 - 1960 Landlord SeriesGarden tractor Landlord Series Garden tractor

Production
Manufacturer	Simplicity
Garden tractor
Built in Port Washington, Wisconsin, USA

Simplicity 700 Engine
7HP Briggs & Stratton 304cc 1-cyl gasoline
Engine details ...

Simplicity 700 Transmission
3-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Dimensions & Tires
Wheelbase	44 inches 111 cm
Weight	530 lbs 240 kg
Front tire	6x12
Rear tire	4.00x8
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	generator OptOptional
Battery volts	12

References
Lawn & Garden Power Equipment published in 1959, by Simplicity

Engine

Engine Detail — 304 cc / 18.56 ci Gasoline

Manufacturer	Briggs & Stratton 19
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled
Displacement	304 cc 18.56 ci
Bore/Stroke	3.00x2.625 inches 76 x 67 mm
Power (gross)	7 hp 5.2 kW
Air cleaner	oil bath
Starter	manual recoil
	electric OptOptional
Starter volts	12

Transmission

Transmission — 3 forward and 1 reverse belt-driven gear

Type	belt-driven gear
Gears	3 forward and 1 reverse

Dimensions

Simplicity 700 Tires
Lawn/turf front	6x12
Lawn/turf rear	4.00x8

Dimensions
Wheelbase	44 inches 111 cm
Shipping weight	530 lbs 240 kg
5-bolt flange rear axle
Rear tread	26 inches 66 cm

Attachments

Attachment overview
32" mid-mount mower deck
42" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

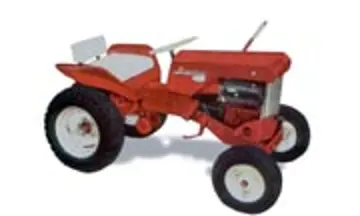

Simplicity 700 tractor photo
