Simplicity Broadmoor 707 990375

The Simplicity Broadmoor 707 990375 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 275 cc 16.79 ci engine. The listed engine power is Gasoline (gross): 7 hp / 5.2 kW.

Overview

	1967 Broadmoor SeriesLawn tractor Broadmoor Series Lawn tractor

Production
Manufacturer	Simplicity (a part of Allis Chalmers)
Lawn tractor
Built in Port Washington, Wisconsin, USA

Variants
990375	large tire electric start
990373	large tire recoil start
990303	small tire recoil start

Simplicity Broadmoor 707 Engine
7HP Briggs & Stratton 275cc 1-cyl gasoline
Engine details ...

Simplicity Broadmoor 707 Transmission
2-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Front PTO	independent
Clutch	mechanical

Dimensions & Tires
Wheelbase	41.5 inches 105 cm
Front tire	4.10x6
Rear tire	5.70x8
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
the new look of Simplicity action '67 published in 1967

Engine

Engine Detail — 275 cc / 16.79 ci Gasoline

Manufacturer	Briggs & Stratton 170702
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	275 cc 16.79 ci
Bore/Stroke	3.00x2.375 inches 76 x 60 mm
Power (gross)	7 hp 5.2 kW
Starter	manual recoil
	electric (optional)
Starter volts	12

Attachments

Attachment overview
32" mid-mount mower deck
Snowblower
Blade

32" Mower deck
Type	mid-mount Simplicity 289
	2-blade with manual lift
Cutting width	32 inches 81 cm
Cut height	1.625 to 3.5 inch 4 to 8 cm

Photos

Simplicity Broadmoor 707 990375

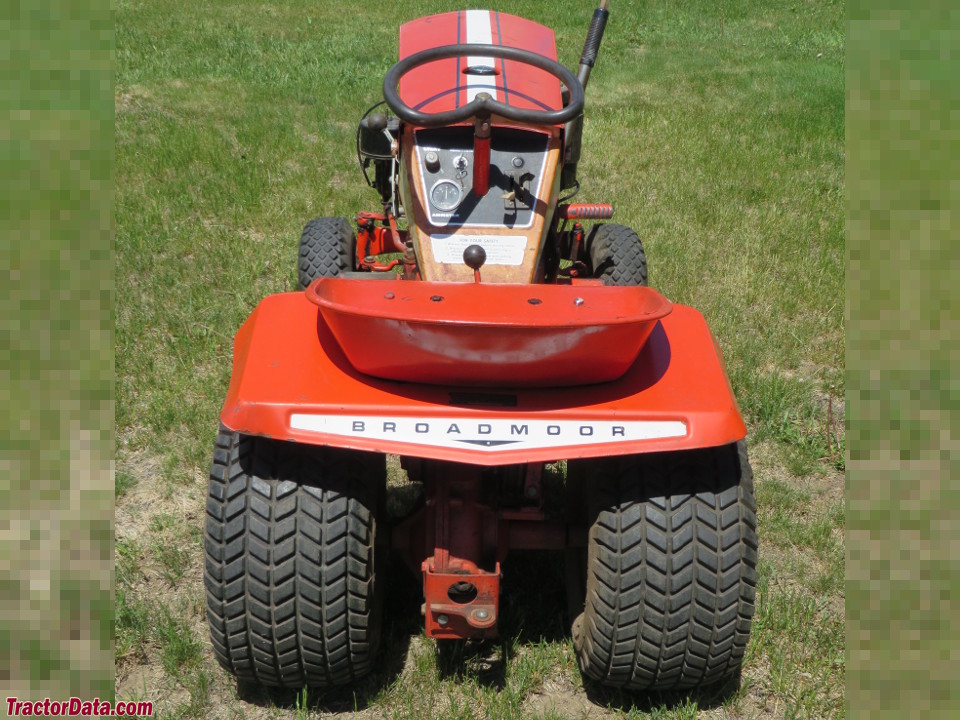

Simplicity Broadmoor 707, rear view.
