Simplicity 725

The Simplicity 725 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 304 cc 18.56 ci engine. The listed engine power is Gasoline (gross): 7.25 hp / 5.4 kW. Transmission: 3 forward and 1 reverse.

Overview

	1961 - 1964 Landlord SeriesGarden tractor Landlord Series Garden tractor

Production
Manufacturer	Simplicity
Garden tractor
Built in Port Washington, Wisconsin, USA

Simplicity 725 Engine
7.25HP Briggs & Stratton 304cc 1-cyl gasoline
Engine details ...

Simplicity 725 Transmission
3-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Dimensions & Tires
Wheelbase	44 inches 111 cm
Front tire	4.80x8
Rear tire	6.00x12
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Bring the wonderful world of Simplicity into your life in 1963

Engine

Engine Detail — 304 cc / 18.56 ci Gasoline

Manufacturer	Briggs & Stratton 19
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled horizontal-shaft
Displacement	304 cc 18.56 ci
Bore/Stroke	3.00x2.625 inches 76 x 67 mm
Power (gross)	7.25 hp 5.4 kW
Air cleaner	oiled foam
Starter	electric
Starter volts	12

Transmission

Transmission — 3 forward and 1 reverse shaft-driven gear

Type	shaft-driven gear
Gears	3 forward and 1 reverse

Dimensions

Simplicity 725 Tires
Lawn/turf front	4.80x8
Lawn/turf rear	6.00x12

Dimensions
Wheelbase	44 inches 111 cm
Width	26 inches 66 cm

Attachments

Attachment overview
32" mid-mount mower deck
42" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

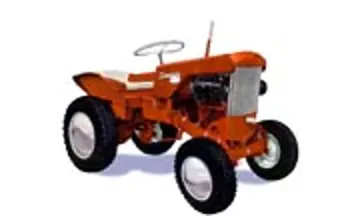

Simplicity 725
