Simplicity 3008 Grabber

The Simplicity 3008 Grabber is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 318 cc 19.44 ci engine. The listed engine power is Gasoline (listed): 8 hp / 6.0 kW. Transmission: 2 forward and 1 reverse. Operating weight: 287 lbs 130 kg.

Overview

	1974 - 1977 Wonder Boy SeriesRiding lawn mower Wonder Boy Series Riding lawn mower

Production
Manufacturer	Simplicity (a part of Allis Chalmers)
Riding lawn mower
Built in Port Washington, Wisconsin, USA

Simplicity 3008 Grabber Engine
8HP Briggs & Stratton 318cc 1-cyl gasoline
Fuel tank	1 gal 3.8 L
Engine details ...

Simplicity 3008 Grabber Transmission
2-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Dimensions & Tires
Wheelbase	45 inches 114 cm
Weight	287 lbs 130 kg
Front tire	4.10/3.50x4
Rear tire	16.00/6.50x8
Full dimensions and tires ...

Engine

Engine Detail — 318 cc / 19.44 ci Gasoline

Manufacturer	Briggs & Stratton 190402
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	318 cc 19.44 ci
Bore/Stroke	3.00x2.75 inches 76 x 70 mm
Power	8 hp 6.0 kW
Starter type	electric

Transmission

Transmission — 2 forward and 1 reverse belt-driven gear

Type	belt-driven gear
Gears	2 forward and 1 reverse

Dimensions

Simplicity 3008 Grabber Tires
Lawn/turf front	4.10/3.50x4
Lawn/turf rear	16.00/6.50x8

Dimensions
Wheelbase	45 inches 114 cm
Length	61.5 inches 156 cm
Height (steering wheel)	39 inches 99 cm
Height (hood)	29.25 inches 74 cm
Shipping weight	287 lbs 130 kg

Attachments

30" Mower deck
Type	mid-mount Simplicity
	1-blade
Cutting width	30 inches 76 cm
Overall width	41.25 inches 104 cm
Cut height	1.5 to 3.5 inch 3 to 8 cm

Photos

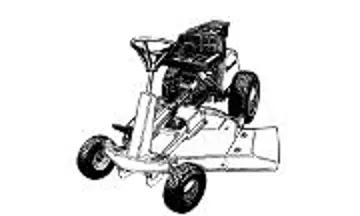

Simplicity 3008 Grabber tractor photo
